SKF 61824/C3 1 Row Ball Bearing - 120 mm ID, 150 mm OD
- RS Stock No.:
- 207-7000
- Mfr. Part No.:
- 61824/C3
- Brand:
- SKF
Subtotal (1 unit)*
£277.09
(exc. VAT)
£332.51
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1 unit(s) shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £277.09 |
*price indicative
- RS Stock No.:
- 207-7000
- Mfr. Part No.:
- 61824/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Ball Bearing | |
| Inside Diameter | 120 mm | |
| Outside Diameter | 150 mm | |
| Race Width | 16mm | |
| Ball Material | Steel | |
| Cage Material | Sheet Metal | |
| End Type | Open | |
| Number of Rows | 1 | |
| Static Load Rating | 28kN | |
| Internal Clearance | C3 | |
| Dynamic Load Rating | 29.1kN | |
| Series | 61824 | |
| Bore Type | Parallel | |
| Standards/Approvals | No | |
| Limiting Speed | 5300rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Ball Bearing | ||
Inside Diameter 120 mm | ||
Outside Diameter 150 mm | ||
Race Width 16mm | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
End Type Open | ||
Number of Rows 1 | ||
Static Load Rating 28kN | ||
Internal Clearance C3 | ||
Dynamic Load Rating 29.1kN | ||
Series 61824 | ||
Bore Type Parallel | ||
Standards/Approvals No | ||
Limiting Speed 5300rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
- COO (Country of Origin):
- FR

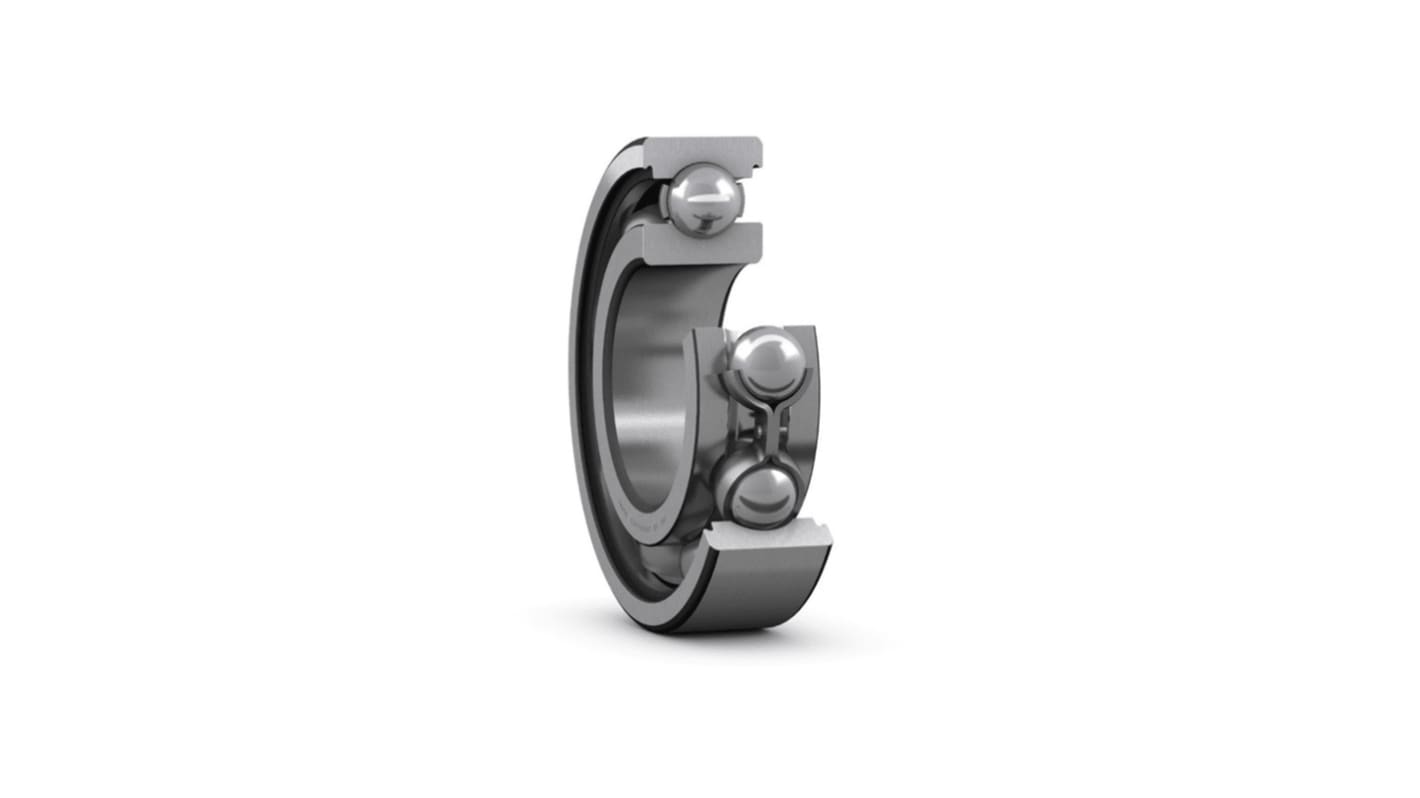

The SKF deep groove ball bearings are particularly versatile. They are suitable for high and very high speeds, accommodate radial and axial loads in both directions and require little maintenance. Because deep groove ball bearings are the most widely used bearing type, they are available from SKF in many designs, variants and sizes. It has 120 mm ID and 150 mm OD.
Bearing is of bearing steel
Cylindrical bore type
