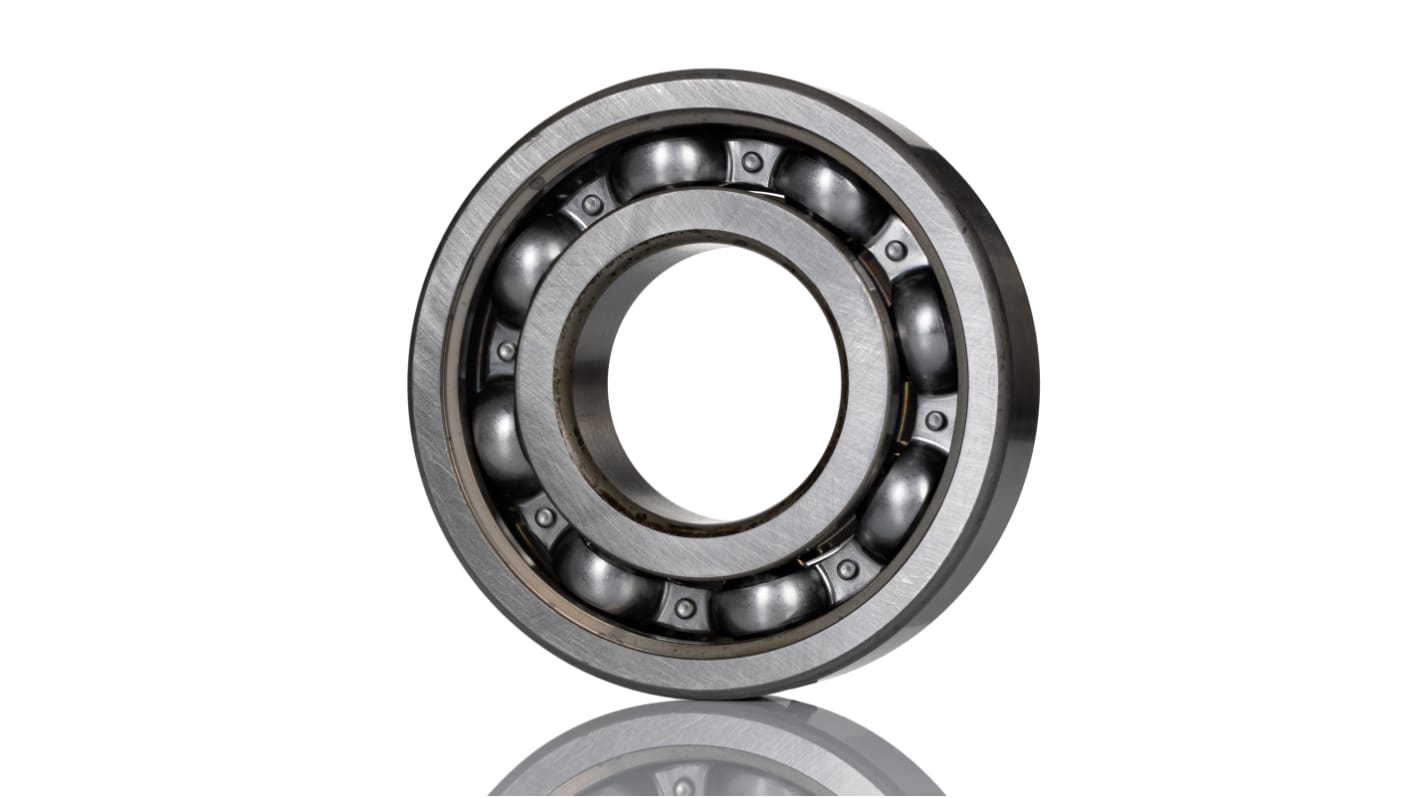

SKF 6209-Z Single Row Deep Groove Ball Bearing- One Side Shielded 45mm I.D, 85mm O.D
- RS Stock No.:
- 207-6537
- Mfr. Part No.:
- 6209-Z
- Brand:
- SKF
Subtotal (1 unit)*
£43.15
(exc. VAT)
£51.78
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £43.15 |
*price indicative
- RS Stock No.:
- 207-6537
- Mfr. Part No.:
- 6209-Z
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 45mm | |
| Outside Diameter | 85mm | |
| Race Width | 19mm | |
| Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
| Sealing Arrangement | One Side Shielded | |
| Bearing Clearance | CN | |
| Material | Steel | |
| Ball Material | Steel | |
| Cage Material | Sheet Metal | |
| Number of Rows | 1 | |
| Static Load Rating | 21.6kN | |
| Dynamic Load Rating | 35.1kN | |
| Bore Type | Parallel | |
| Clearance Code | CN | |
| Bearing Series | 2 Light | |
| Model Number p | 6209-Z | |
| Race Type | Plain | |
| Partial Bearing Code | 6209 | |
Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 45mm | ||
Outside Diameter 85mm | ||
Race Width 19mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement One Side Shielded | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 21.6kN | ||
Dynamic Load Rating 35.1kN | ||
Bore Type Parallel | ||
Clearance Code CN | ||
Bearing Series 2 Light | ||
Model Number p 6209-Z | ||
Race Type Plain | ||
Partial Bearing Code 6209 | ||
- COO (Country of Origin):
- IT
SKF Ball Bearing, Cylindrical Bore Type, 21.6kN Static Load Rating, 45mm ID, 85mm OD - 6209-Z
Crank up equipment efficiency with the help of this ball bearing from SKF. Designed with a simple, single-row profile that minimises friction, vibration and noise during use, it whizzes along at high speeds of up to 11,000 rotations per minute. Deep raceway grooves allow this small but mighty unit to take on radial and axial loads in both directions. Thanks to integrated sealing, lubricants are kept in and contaminants out for a longer service life with less maintenance to boot.
Features & Benefits
• Robust steel body resists corrosion in moist and humid conditions
• Sheet metal cage keeps rolling parts in place during use
• Slimline race width of 19mm fits inside tight spaces and compact machinery
• Sheet metal cage keeps rolling parts in place during use
• Slimline race width of 19mm fits inside tight spaces and compact machinery
Applications
• Pulp and paper mills
• Medical research facilities
• Food and beverage production
• Medical research facilities
• Food and beverage production
What's the load rating of this ball bearing?
Its dynamic load rating is 35.1kN and its static load rating is 21.6kN. This tells you it's up to the challenge of high-force industrial applications.
Is this bearing unshielded for lubrication?
Yes, the component is unshielded at one end, allowing you to apply your own lubricant.
