SKF 6207-2RS1/C3GJN 1 Row Ball Bearing - 35 mm ID, 72 mm OD
- RS Stock No.:
- 207-6511
- Mfr. Part No.:
- 6207-2RS1/C3GJN
- Brand:
- SKF
Subtotal (1 unit)*
£17.99
(exc. VAT)
£21.59
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 02 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £17.99 |
*price indicative
- RS Stock No.:
- 207-6511
- Mfr. Part No.:
- 6207-2RS1/C3GJN
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Ball Bearing | |
| Inside Diameter | 35mm | |
| Outside Diameter | 72mm | |
| Race Width | 17mm | |
| Cage Material | Sheet Metal | |
| Ball Material | Steel | |
| Number of Rows | 1 | |
| Static Load Rating | 15.3kN | |
| Internal Clearance | C3 | |
| Dynamic Load Rating | 27kN | |
| Series | 6207-2RS1 | |
| Standards/Approvals | No | |
| Bore Type | Parallel | |
| Limiting Speed | 6300rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Ball Bearing | ||
Inside Diameter 35mm | ||
Outside Diameter 72mm | ||
Race Width 17mm | ||
Cage Material Sheet Metal | ||
Ball Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 15.3kN | ||
Internal Clearance C3 | ||
Dynamic Load Rating 27kN | ||
Series 6207-2RS1 | ||
Standards/Approvals No | ||
Bore Type Parallel | ||
Limiting Speed 6300rpm | ||
Bearing Type Single Row Deep Groove Ball | ||

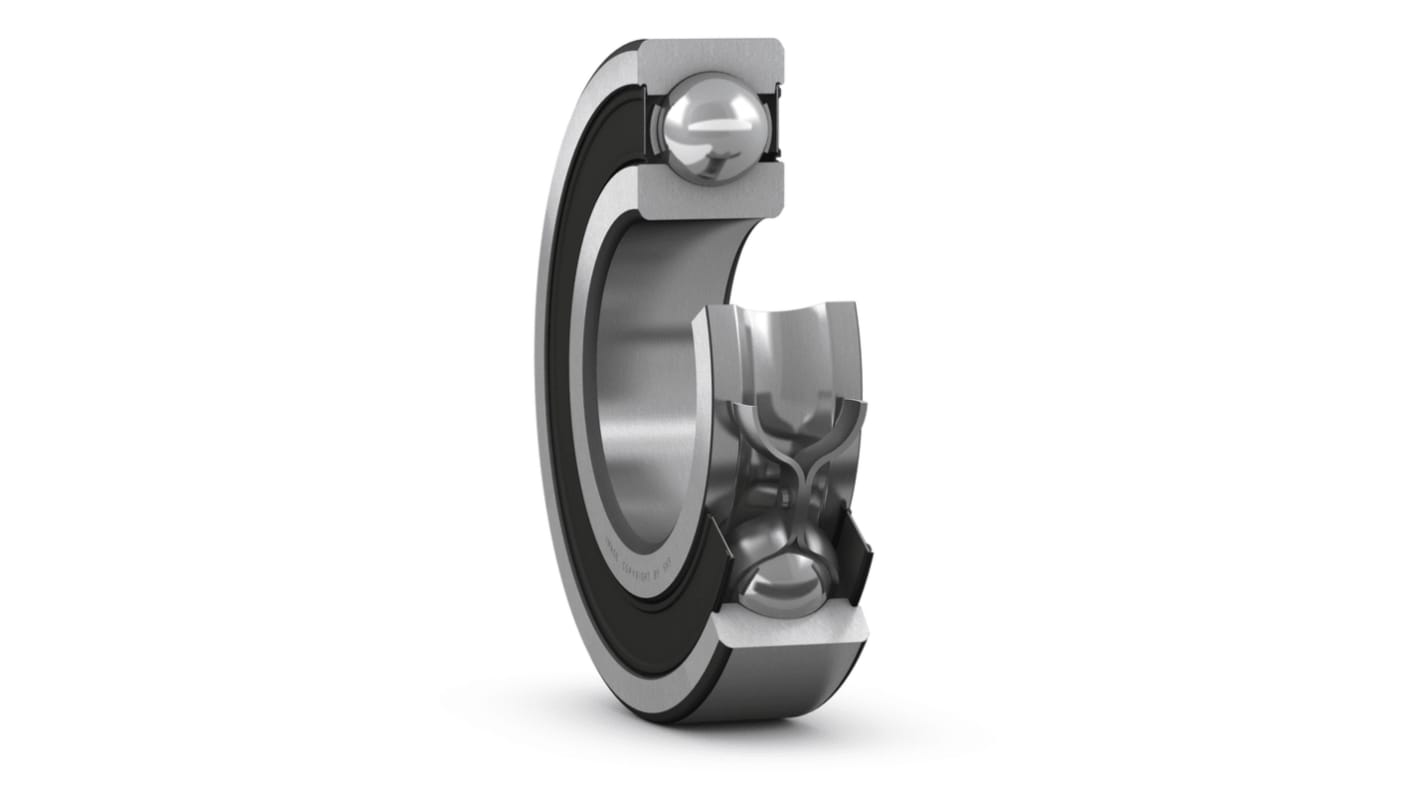

SKF Ball Bearing, 35mm Inside Diameter, 72mm Outside Diameter - 6207-2RS1/C3GJN
This ball bearing is a high-quality SKF product, specifically designed as a single row deep groove ball bearing. With an inside diameter of 35mm and an outside diameter of 72mm, it features a race width of 17mm. The sealed design ensures durability and reliability in various industrial applications.
Features & Benefits
• C3 clearance accommodates thermal expansion and higher loads
• Both sides sealed to prevent contamination and retain lubrication
• Steel material enhances strength and reduces wear
• Cylindrical bore design allows easy installation
• Capable of withstanding dynamic loads of up to 27kN
• Compact design suitable for high-speed applications
• Both sides sealed to prevent contamination and retain lubrication
• Steel material enhances strength and reduces wear
• Cylindrical bore design allows easy installation
• Capable of withstanding dynamic loads of up to 27kN
• Compact design suitable for high-speed applications
Applications
• Used in electric motor assemblies for stability
• Integrated into automotive systems for smooth operation
• Utilised in conveyor systems to optimise industrial productivity
• Implemented in machinery requiring low maintenance
• Suitable for use in precision instruments demanding accuracy
• Integrated into automotive systems for smooth operation
• Utilised in conveyor systems to optimise industrial productivity
• Implemented in machinery requiring low maintenance
• Suitable for use in precision instruments demanding accuracy
What load capacities can this bearing support in different applications?
This bearing supports dynamic loads of up to 27kN and static loads of up to 15.3kN, making it suitable for a range of applications requiring high load bearing capacity.
How does the sealing arrangement contribute to the bearing's performance?
The double-sealed design prevents the ingress of dirt and moisture, extending the lifespan of the bearing by maintaining proper lubrication and reducing wear.
What are the implications of using C3 clearance in industrial environments?
Using C3 clearance allows for greater flexibility in thermal expansion and ensures reliability under fluctuating operational conditions, particularly in high-speed applications.
Can this bearing be used in high-speed machinery?
Yes, with a limiting speed of 6300 r/min, it is suitable for high-speed applications while maintaining stability and performance.
