SKF 51216 Thrust Ball Bearing- Open Type 80mm I.D, 115mm O.D
- RS Stock No.:
- 207-6455
- Mfr. Part No.:
- 51216
- Brand:
- SKF
Subtotal (1 unit)*
£118.93
(exc. VAT)
£142.72
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £118.93 |
*price indicative
- RS Stock No.:
- 207-6455
- Mfr. Part No.:
- 51216
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 80mm | |
Outside Diameter | 115mm | |
Race Width | 28mm | |
Ball Bearing Type | Thrust Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 208kN | |
Dynamic Load Rating | 76.1kN | |
Bore Type | Parallel | |
Bearing Series | 1 Extra Light Thrust | |
Partial Bearing Code | 51216 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 80mm | ||
Outside Diameter 115mm | ||
Race Width 28mm | ||
Ball Bearing Type Thrust Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 208kN | ||
Dynamic Load Rating 76.1kN | ||
Bore Type Parallel | ||
Bearing Series 1 Extra Light Thrust | ||
Partial Bearing Code 51216 | ||

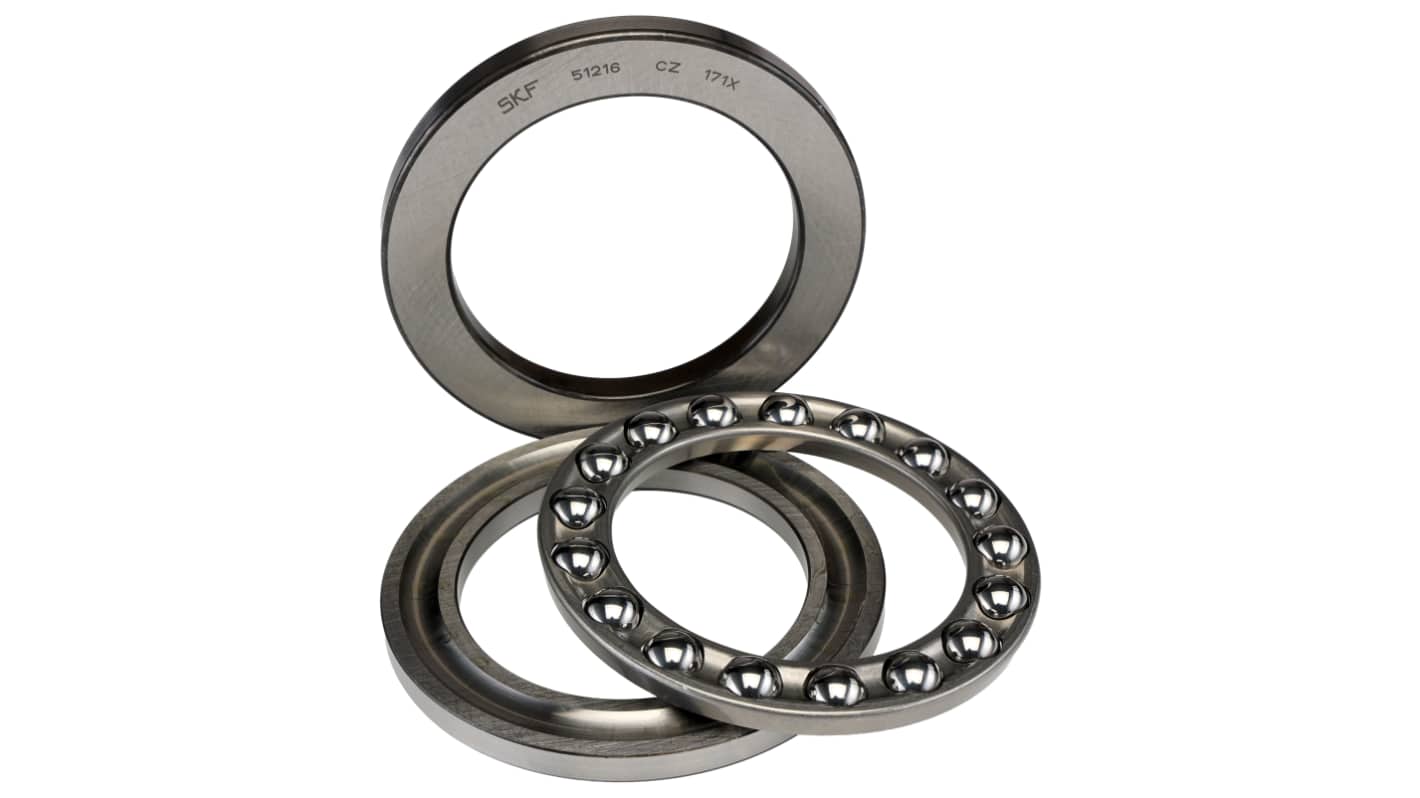

SKF Thrust Ball Bearing, 80mm Inside Diameter, 115mm Outside Diameter - 51216
This thrust ball bearing is designed for single direction applications, featuring a robust construction with an inside diameter of 80mm and an outside diameter of 115mm. Crafted from high-quality steel, this component ensures durability and reliability across various mechanical systems.
Features & Benefits
• Open type design allows for easy lubrication access
• Dynamic load rating of 76.1 kN ensures high performance
• Static load rating of 208 kN provides strong support
• Single-row construction optimises axial load capacity
• Suitable for operating speeds of up to 3400 r/min
• Sheet metal cage enhances strength while reducing weight
• Dynamic load rating of 76.1 kN ensures high performance
• Static load rating of 208 kN provides strong support
• Single-row construction optimises axial load capacity
• Suitable for operating speeds of up to 3400 r/min
• Sheet metal cage enhances strength while reducing weight
Applications
• Utilised in automation processes for precise movement control
• Employed in electronic equipment requiring efficient load distribution
• Suitable for mechanical assemblies where axial loads are prevalent
• Ideal for use in industrial machinery with high-speed requirements
• Employed in electronic equipment requiring efficient load distribution
• Suitable for mechanical assemblies where axial loads are prevalent
• Ideal for use in industrial machinery with high-speed requirements
What type of materials are used in its construction and how do they impact performance?
The thrust ball bearing is made from high-quality steel, which offers excellent strength and durability under varying load conditions. The steel construction contributes to a longer service life and increased reliability in demanding applications.
How do the dynamic and static load ratings affect selection for specific projects?
Selecting based on dynamic and static load ratings ensures that the bearing can withstand operational stresses without failure. The dynamic rating of 76.1 kN indicates safe usage under motion, while the static rating of 208 kN is crucial for stationary applications.
What limitations should be considered regarding its operating speeds?
With a limiting speed of 3400 r/min, exceeding this rate can lead to premature wear or failure. Its important to assess the operational conditions to determine if this bearing is suitable for high-speed applications.
