Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SKF
	Inside Diameter	50mm
	Outside Diameter	110mm
	Race Width	27mm
	Ball Bearing Type	Single Row Angular Contact Ball Bearing
	Sealing Arrangement	Open Type
	Bearing Clearance	CN
	Material	Steel
	Ball Material	Steel
	Cage Material	Brass
	Number of Rows	1
	Static Load Rating	51kN
	Dynamic Load Rating	75kN
	Bore Type	Parallel
	Bearing Series	3 Medium
	Race Type	Plain
	Partial Bearing Code	7310

	Select all
	Brand SKF
	Inside Diameter 50mm
	Outside Diameter 110mm
	Race Width 27mm
	Ball Bearing Type Single Row Angular Contact Ball Bearing
	Sealing Arrangement Open Type
	Bearing Clearance CN
	Material Steel
	Ball Material Steel
	Cage Material Brass
	Number of Rows 1
	Static Load Rating 51kN
	Dynamic Load Rating 75kN
	Bore Type Parallel
	Bearing Series 3 Medium
	Race Type Plain
	Partial Bearing Code 7310

RoHS Status: Exempt

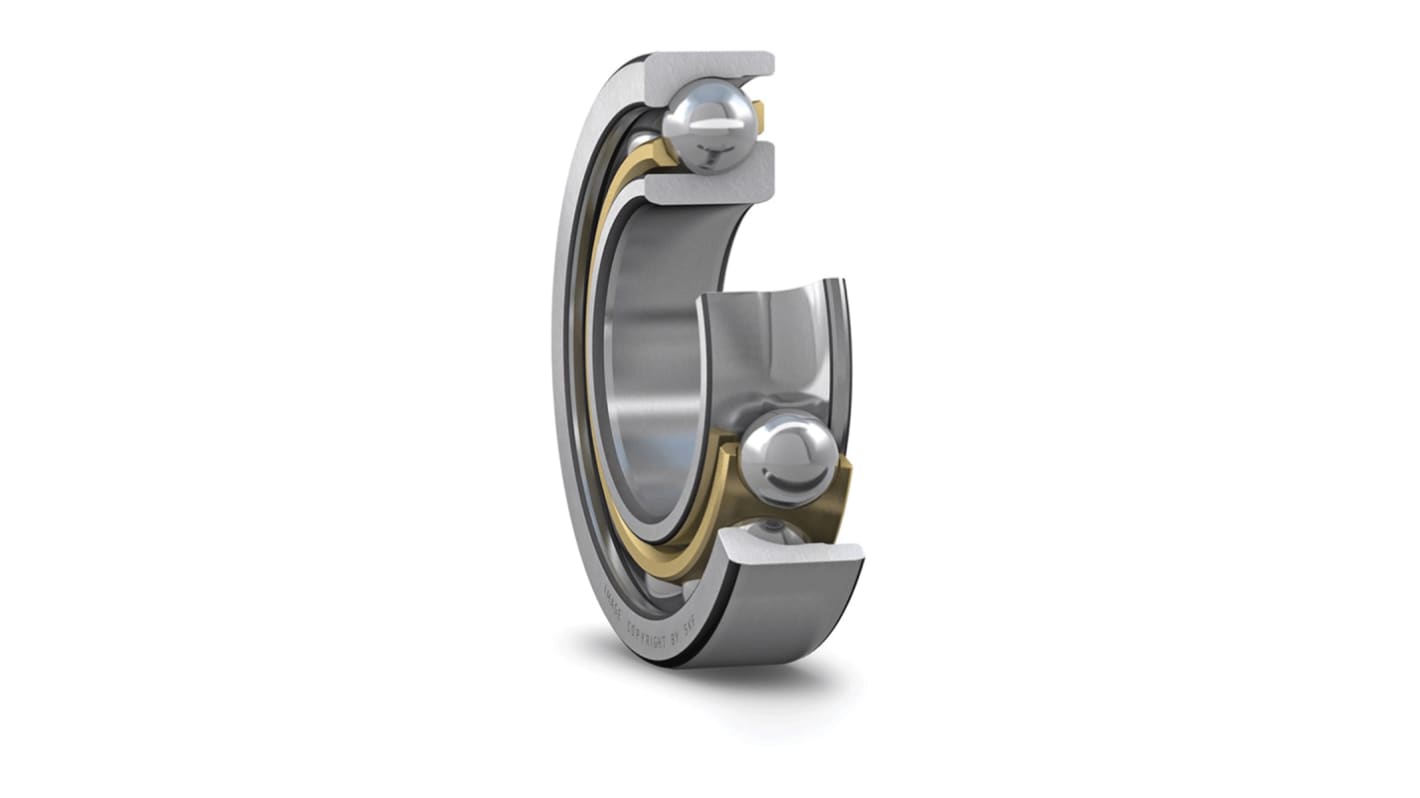

SKF Explorer Angular Contact Ball Bearing, 50mm Inner Diameter, 110mm Outer Diameter - 7310 BECBM

This angular contact ball bearing is engineered for precision and durability in various mechanical applications. With an inner diameter of 50mm and an outer diameter of 110mm, it offers a robust solution for dynamic and static loading scenarios, ensuring efficient performance even under stress.

Features & Benefits

• Designed as a single row ball bearing for simplicity
• Open type bearing facilitates lubrication access
• High dynamic load rating of 75 kN for operational efficiency
• Compatible with parallel bore type for versatility
• Ideal for medium series applications in industrial settings

Applications

• Used for rotary in automation systems
• Integrated within electrical machinery for reliable performance
• Efficient in heavy load-bearing scenarios in mechanical systems
• Utilised in precision equipment requiring high load capacities

What is the fatigue load limit for this bearing?

The fatigue load limit is rated at 2.16 kN, indicating its capacity to withstand fluctuating loads over time without failure.

What are the reference and limiting speeds for this product?

The reference speed is set at 7500 r/min, while the limiting speed can reach up to 10000 r/min, allowing for high-speed applications.

How does the bearing’s construction affect its performance?

Constructed from steel with a brass cage, it ensures durability and optimal load distribution, accommodating both static and dynamic loads effectively.

SKF 7310 BECBM Single Row Angular Contact Ball Bearing- Open Type 50mm I.D, 110mm O.D
