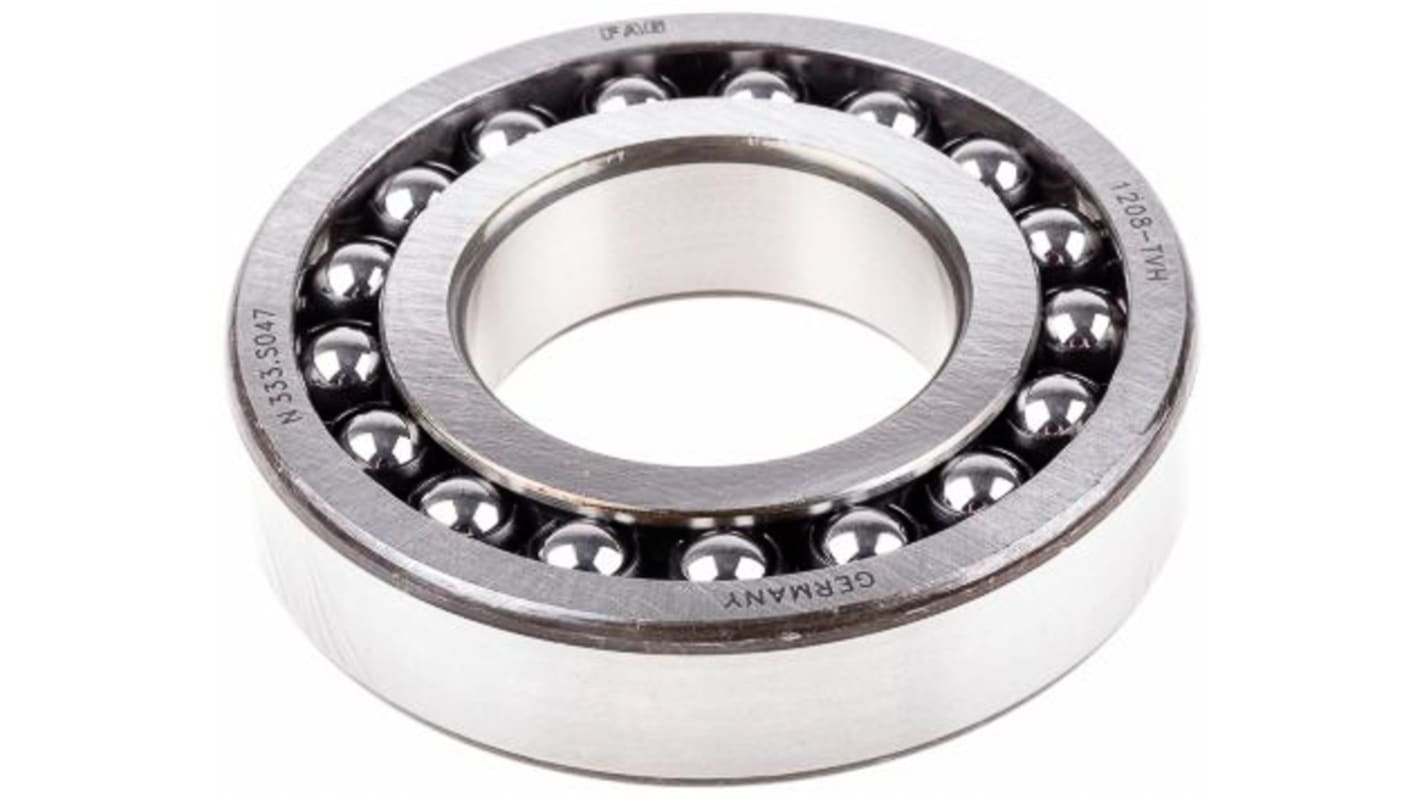

FAG 1208-K-TVH-C3 Self Aligning Ball Bearing- Open Type 40mm I.D, 80mm O.D
- RS Stock No.:
- 190-8302
- Mfr. Part No.:
- 1208-K-TVH-C3
- Brand:
- FAG
Bulk discount available
Subtotal (1 unit)*
£39.99
(exc. VAT)
£47.99
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £39.99 |
5 - 9 | £38.41 |
10 - 24 | £37.58 |
25 + | £36.79 |
*price indicative
- RS Stock No.:
- 190-8302
- Mfr. Part No.:
- 1208-K-TVH-C3
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | FAG | |
Inside Diameter | 40mm | |
Outside Diameter | 80mm | |
Race Width | 18mm | |
Ball Bearing Type | Self Aligning Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | C3 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Polyamide | |
Number of Rows | 2 | |
Static Load Rating | 6.5kN | |
Dynamic Load Rating | 19.4kN | |
Bore Type | Tapered | |
Bearing Series | 2 Light | |
Race Type | Plain | |
Partial Bearing Code | 1208 | |
Select all | ||
---|---|---|
Brand FAG | ||
Inside Diameter 40mm | ||
Outside Diameter 80mm | ||
Race Width 18mm | ||
Ball Bearing Type Self Aligning Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Polyamide | ||
Number of Rows 2 | ||
Static Load Rating 6.5kN | ||
Dynamic Load Rating 19.4kN | ||
Bore Type Tapered | ||
Bearing Series 2 Light | ||
Race Type Plain | ||
Partial Bearing Code 1208 | ||
If there is skewing between the outer and inner ring (for the compensation of angular misalignments)For bearing arrangements with high radial loadsFor higher speeds on account of their point contact, than barrel roller bearings with line contactWhere bearings with the above-mentioned characteristics are expected to run more quietly and at lower temperatures, even at high speeds
