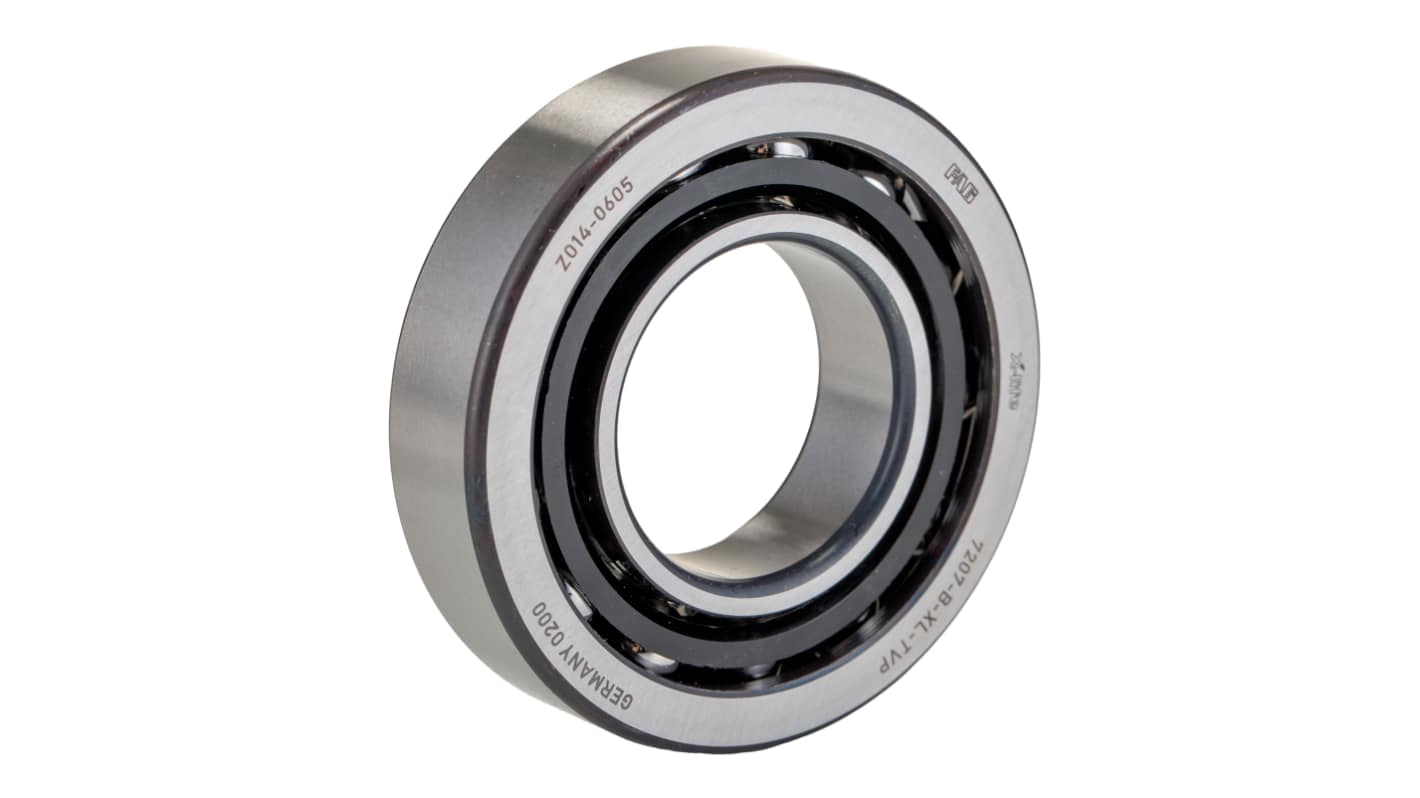

FAG 7207-B-XL-TVP Single Row Angular Contact Ball Bearing- Open Type 35mm I.D, 72mm O.D
- RS Stock No.:
- 137-1516
- Mfr. Part No.:
- 7207-B-XL-TVP
- Brand:
- FAG
Subtotal (1 unit)*
£35.66
(exc. VAT)
£42.79
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 14 unit(s) shipping from 13 October 2025
- Plus 999,999,982 unit(s) shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £35.66 |
*price indicative
- RS Stock No.:
- 137-1516
- Mfr. Part No.:
- 7207-B-XL-TVP
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | FAG | |
Inside Diameter | 35mm | |
Outside Diameter | 72mm | |
Race Width | 17mm | |
Ball Bearing Type | Single Row Angular Contact Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Plastic | |
Number of Rows | 1 | |
Static Load Rating | 19kN | |
Dynamic Load Rating | 30kN | |
Clearance Code | CN | |
Bore Type | Parallel | |
Bearing Series | 2 Light | |
Race Type | Plain | |
Partial Bearing Code | 7207 | |
Select all | ||
---|---|---|
Brand FAG | ||
Inside Diameter 35mm | ||
Outside Diameter 72mm | ||
Race Width 17mm | ||
Ball Bearing Type Single Row Angular Contact Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Plastic | ||
Number of Rows 1 | ||
Static Load Rating 19kN | ||
Dynamic Load Rating 30kN | ||
Clearance Code CN | ||
Bore Type Parallel | ||
Bearing Series 2 Light | ||
Race Type Plain | ||
Partial Bearing Code 7207 | ||
- COO (Country of Origin):
- DE
Single Row Angular Contact Ball Bearings
FAG from Schaeffler single row angular contact ball bearings are self-retaining units. They have solid inner and outer rings and ball and cage assemblies with polyamide, sheet metal or brass cages. The raceways of the inner and outer rings are offset from each other along the bearing axis. The bearings are available in open and sealed designs. Their angular adjustment facility is limited.
Features and Benefits
• Lower operating costs
• Reduced maintenance due to improved lubrication
• Lower heat generation
• Less noise
Product Application Information
In certain applications, a smaller bearing arrangement can be designed.
Single row angular contact ball bearings can support axial forces in one direction and high radial forces. They must be axially adjusted against another bearing fitted in a mirror image arrangement
Suffixes
B - Modified internal construction
TVP - Solid cage made from glass fibre reinforced polyamide
Schaeffler 2 Light Series Ball Bearing, 35mm Inside Diameter, 72mm Outside Diameter - 7207-B-XL-TVP
This ball bearing is designed for optimal performance in demanding applications. It features a single row angular contact design, providing high load capabilities with an inner diameter of 35mm and an outer diameter of 72mm. The open type configuration allows for easy maintenance and greater flexibility in operation.
Features & Benefits
• Offers a static load rating of 19 kN for durability
• Dynamic load rating of 30 kN ensures reliable performance
• Constructed with steel for enhanced strength and longevity
• Plastic cage material reduces friction and extends service life
• Open type design facilitates easy lubrication and maintenance
• CN clearance provides standard fitting for improved operational efficiency
• Dynamic load rating of 30 kN ensures reliable performance
• Constructed with steel for enhanced strength and longevity
• Plastic cage material reduces friction and extends service life
• Open type design facilitates easy lubrication and maintenance
• CN clearance provides standard fitting for improved operational efficiency
Applications
• Commonly used in robotic automation systems for enhanced movement
• Ideal for electric motors where space is limited and performance is critical
• Utilised in machine tools requiring precise rotational elements
• Suitable for conveyor systems where efficient load distribution is necessary
• Ideal for electric motors where space is limited and performance is critical
• Utilised in machine tools requiring precise rotational elements
• Suitable for conveyor systems where efficient load distribution is necessary
What load ratings should be considered for applications using this bearing?
The bearing offers a static load rating of 19 kN and a dynamic load rating of 30 kN, making it suitable for various high-load applications in mechanical assemblies.
How does the open type design benefit users in terms of maintenance?
The open type design allows for straightforward lubrication access and inspection, making it easier to maintain optimal functioning and prolong bearing life.
What materials are used in the construction of this bearing, and how do they impact its performance?
The bearing is made of steel for its casing and balls, ensuring high strength and durability, while the plastic cage provides lightweight support and reduces friction during operation.
