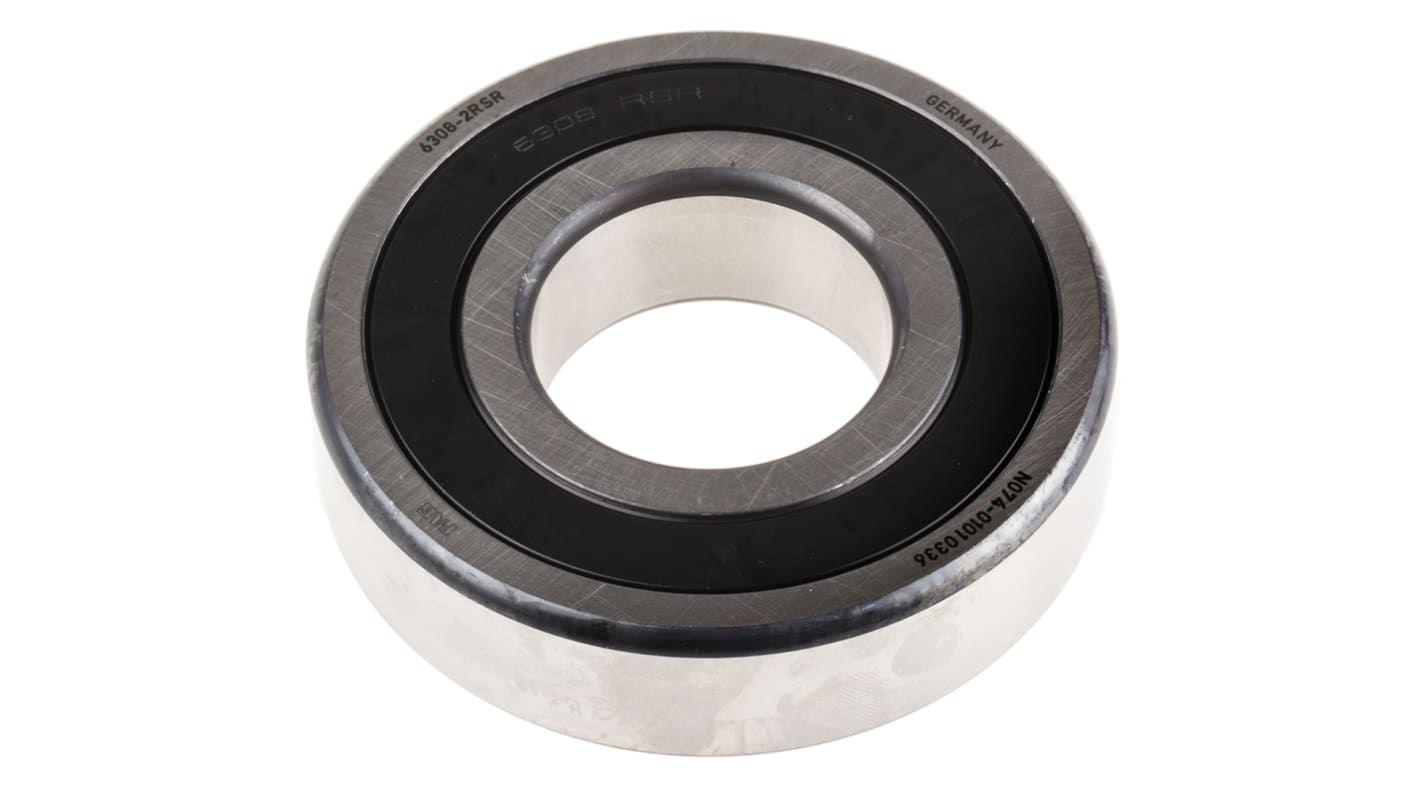

FAG 6308-2RSR 1 Row Ball Bearing - 40 mm ID, 90 mm OD
- RS Stock No.:
- 137-1447
- Mfr. Part No.:
- 6308-2RSR
- Brand:
- FAG
Bulk discount available
Subtotal (1 unit)*
£26.30
(exc. VAT)
£31.56
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 3 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £26.30 |
| 5 - 9 | £25.24 |
| 10 - 24 | £24.70 |
| 25 + | £24.20 |
*price indicative
- RS Stock No.:
- 137-1447
- Mfr. Part No.:
- 6308-2RSR
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 40mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 90mm | |
| Race Width | 23mm | |
| Ball Material | Steel | |
| Cage Material | Steel | |
| End Type | Sealed | |
| Number of Rows | 1 | |
| Static Load Rating | 25kN | |
| Internal Clearance | CN | |
| Dynamic Load Rating | 45.5kN | |
| Series | 63 | |
| Standards/Approvals | No | |
| Bore Type | Parallel | |
| Limiting Speed | 4800rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Race Type | Plain | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 40mm | ||
Product Type Ball Bearing | ||
Outside Diameter 90mm | ||
Race Width 23mm | ||
Ball Material Steel | ||
Cage Material Steel | ||
End Type Sealed | ||
Number of Rows 1 | ||
Static Load Rating 25kN | ||
Internal Clearance CN | ||
Dynamic Load Rating 45.5kN | ||
Series 63 | ||
Standards/Approvals No | ||
Bore Type Parallel | ||
Limiting Speed 4800rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
Race Type Plain | ||
Schaeffler Series 63 Ball Bearing, 40mm Inside Diameter, 90mm Outside Diameter - 6308-2RSR
This ball bearing provides rotational support for shafts in industrial assemblies, designed for sealed operation in machinery where protection from contaminants is required. It suits environments that demand steady radial load transmission and consistent rotational behaviour at moderate speeds, particularly within automation, electronics, electrical and mechanical systems.
Features & Benefits
• Steel raceways and balls deliver high static load capacity
• Steel cage reduces internal friction for smoother motion
• Sealed construction limits ingress for extended service life
• 45.5 kN dynamic load rating supports heavy radial forces
• 4,800 r/min limiting speed accommodates moderate-speed applications
• Steel cage reduces internal friction for smoother motion
• Sealed construction limits ingress for extended service life
• 45.5 kN dynamic load rating supports heavy radial forces
• 4,800 r/min limiting speed accommodates moderate-speed applications
**Applications**
• Suitable for conveyor drive shafts in factory automation
• Ideal for motor assemblies in electrical equipment
• Used for gearbox input shafts in mechanical drives
• Can be used for spindle supports in electronic manufacturing
• Ideal for motor assemblies in electrical equipment
• Used for gearbox input shafts in mechanical drives
• Can be used for spindle supports in electronic manufacturing
What bore configuration does it use for shaft mounting?
The component has a parallel bore designed for a slip-fit installation onto cylindrical shafts.
How wide is the ring section that bears axial and radial loads?
The outer ring race has a width of 23mm to provide a stable contact surface for load distribution.
What are the outer and inner diameter dimensions for integration planning?
The internal diameter is 40mm and the external diameter is 90mm, enabling selection of compatible housings and seals.
What construction detail reduces maintenance frequency in dusty environments?
End sealing prevents particle ingress, decreasing lubricant contamination and lowering maintenance intervals.
