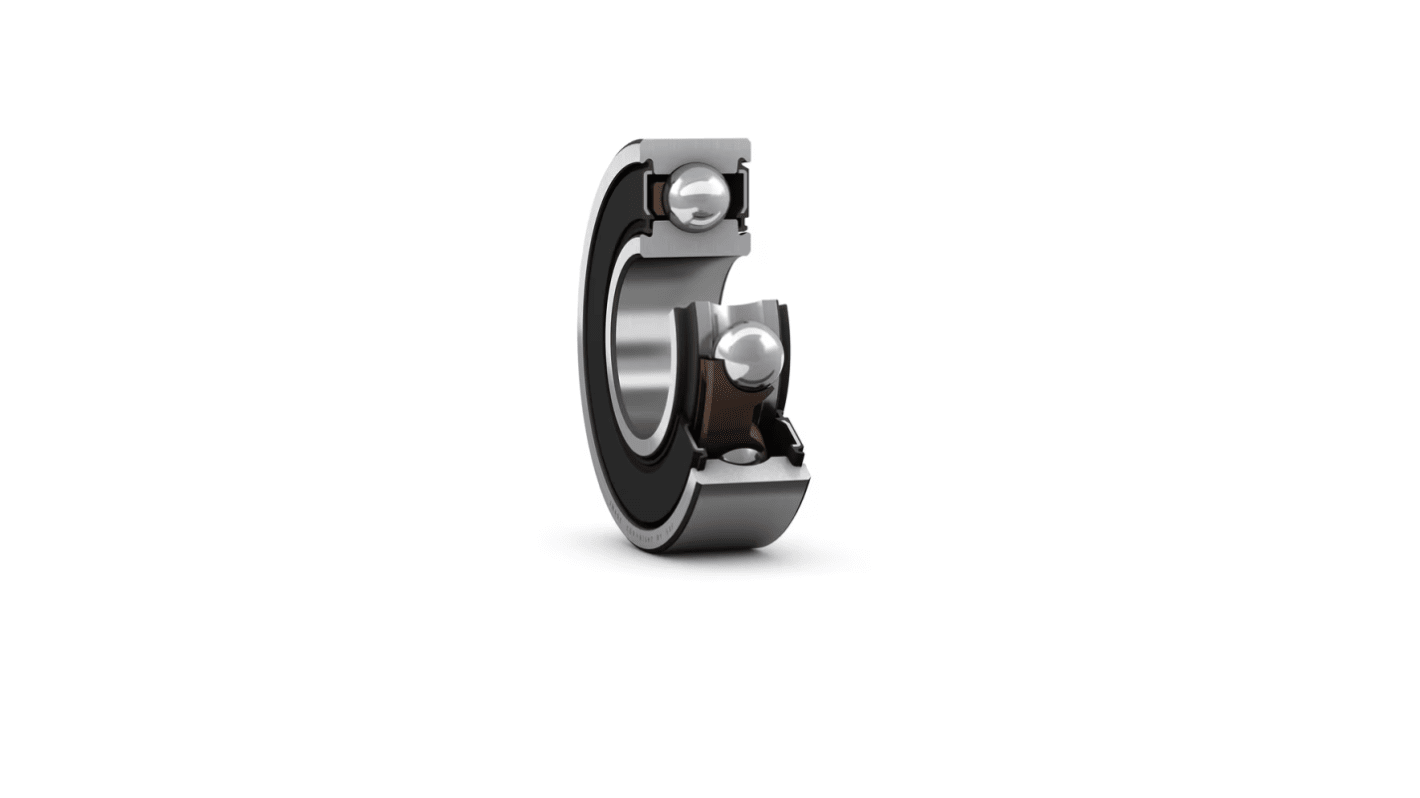

SKF 6000-2RSLTN9/C3VT162 Single Row Deep Groove Ball Bearing- Both Sides Sealed 10mm I.D, 26mm O.D
- RS Stock No.:
- 123-4842
- Mfr. Part No.:
- 6000-2RSLTN9/C3VT162
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£7.90
(exc. VAT)
£9.48
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
- Plus 14 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £7.90 |
5 - 9 | £7.57 |
10 - 24 | £7.43 |
25 + | £7.26 |
*price indicative
- RS Stock No.:
- 123-4842
- Mfr. Part No.:
- 6000-2RSLTN9/C3VT162
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 10mm | |
Outside Diameter | 26mm | |
Race Width | 8mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | C3 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Non-metallic | |
Number of Rows | 1 | |
Static Load Rating | 1.96kN | |
Dynamic Load Rating | 4.75kN | |
Clearance Code | C3 | |
Bore Type | Parallel | |
Bearing Series | 0 Extra Light | |
Model Number p | 2RSLTN9/C3VT162 | |
Race Material | Steel | |
Race Type | Plain | |
Flange Outside Diameter | 26mm | |
Partial Bearing Code | 6000 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 10mm | ||
Outside Diameter 26mm | ||
Race Width 8mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Non-metallic | ||
Number of Rows 1 | ||
Static Load Rating 1.96kN | ||
Dynamic Load Rating 4.75kN | ||
Clearance Code C3 | ||
Bore Type Parallel | ||
Bearing Series 0 Extra Light | ||
Model Number p 2RSLTN9/C3VT162 | ||
Race Material Steel | ||
Race Type Plain | ||
Flange Outside Diameter 26mm | ||
Partial Bearing Code 6000 | ||
- COO (Country of Origin):
- IT
SKF Ball Bearing, 26mm Outside Diameter, 4.75 kN Dynamic Load Rating - 6000-2RSLTN9/C3VT162
This ball bearing is designed for a range of applications, particularly within the automation and mechanical sectors. It features robust sealing on both sides to enhance durability and has a high load rating, ensuring consistent performance in challenging conditions. The deep groove ball bearing is suitable for those prioritising longevity and efficiency.
Features & Benefits
• Sealed on both sides to reduce contamination risks
• Capable of handling static loads up to 1.96kN
• Dynamic load ratings can reach up to 4.75kN
• Lightweight at 0.019kg for easy installation
• Capable of handling static loads up to 1.96kN
• Dynamic load ratings can reach up to 4.75kN
• Lightweight at 0.019kg for easy installation
Applications
• Compatible with motors requiring high-speed functionality
• Suitable for electric machinery necessitating robust support
• Utilised in conveyors where durability is essential
• Applicable in various equipment across automation systems
• Suitable for electric machinery necessitating robust support
• Utilised in conveyors where durability is essential
• Applicable in various equipment across automation systems
Can it operate in high-speed environments?
Yes, it has a reference speed of 67000r/min and a limiting speed of 34000r/min, making it apt for high-speed applications.
What type of materials is this bearing made from?
It is made from steel with a non-metallic cage, ensuring durability and effectiveness.
How can this bearing be installed for optimal performance?
Proper installation should minimise misalignment and ensure it is fitted within specified limits to maintain clearance and load ratings.
What are the implications of using a C3 clearance bearing?
The C3 clearance accommodates higher operating temperatures and shaft expansion, making it suitable for varied applications that generate heat.
