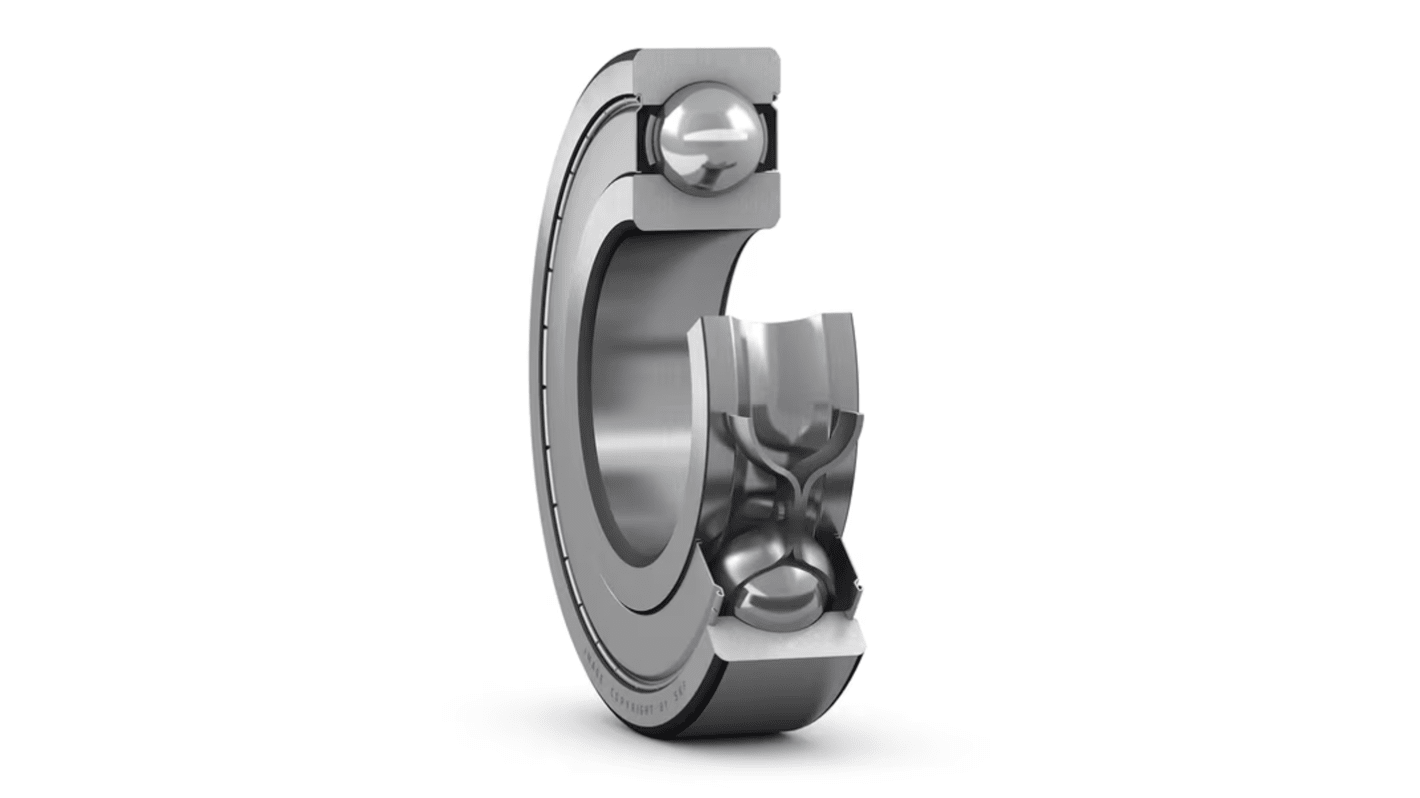

SKF 6308-2Z/C3GJN Single Row Deep Groove Ball Bearing- Both Sides Shielded 40mm I.D, 90mm O.D
- RS Stock No.:
- 123-4841
- Mfr. Part No.:
- 6308-2Z/C3GJN
- Brand:
- SKF
Save 7% when you buy 25 units
Subtotal (1 unit)*
£57.01
(exc. VAT)
£68.41
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £57.01 |
5 - 9 | £54.72 |
10 - 24 | £53.59 |
25 + | £52.45 |
*price indicative
- RS Stock No.:
- 123-4841
- Mfr. Part No.:
- 6308-2Z/C3GJN
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 40mm | |
Outside Diameter | 90mm | |
Race Width | 23mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Shielded | |
Bearing Clearance | C3 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 24kN | |
Dynamic Load Rating | 42.3kN | |
Bore Type | Parallel | |
Clearance Code | C3 | |
Bearing Series | 3 Medium | |
Model Number p | 6308 | |
Race Type | Plain | |
Partial Bearing Code | 6308 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 40mm | ||
Outside Diameter 90mm | ||
Race Width 23mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Shielded | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 24kN | ||
Dynamic Load Rating 42.3kN | ||
Bore Type Parallel | ||
Clearance Code C3 | ||
Bearing Series 3 Medium | ||
Model Number p 6308 | ||
Race Type Plain | ||
Partial Bearing Code 6308 | ||
- COO (Country of Origin):
- IT
SKF Ball Bearing, 40mm Inside Diameter, 90mm Outside Diameter - 6308-2Z/C3GJN
This ball bearing is a robust single row deep groove design, specifically engineered for high performance in various mechanical applications. With an inside diameter of 40mm and an outside diameter of 90mm, it provides a reliable solution for scenarios requiring both durability and efficiency. Featuring a race width of 23mm and shielded on both sides, this bearing is a versatile option for many industries.
Features & Benefits
• Single row design minimises friction for smooth operation
• Shielded on both sides to protect against contaminants
• C3 bearing clearance accommodates thermal expansions
• High static load rating of 24kN enables heavy load support
• Dynamic load rating of 42.3kN ensures superior performance
• Constructed from steel for enhanced durability and longevity
• Shielded on both sides to protect against contaminants
• C3 bearing clearance accommodates thermal expansions
• High static load rating of 24kN enables heavy load support
• Dynamic load rating of 42.3kN ensures superior performance
• Constructed from steel for enhanced durability and longevity
Applications
• Utilised in industrial automation systems for efficient rotation
• Commonly found in electrical appliances for stable performance
• Applied in mechanical assemblies requiring reliable load handling
• Implemented in conveyor systems for smooth operations
• Commonly found in electrical appliances for stable performance
• Applied in mechanical assemblies requiring reliable load handling
• Implemented in conveyor systems for smooth operations
What is the significance of the C3 clearance in bearing applications?
The C3 clearance indicates a greater internal space, accommodating thermal expansions during operation, which helps maintain performance even under varying temperatures.
How do the shielded features enhance the bearing's functionality?
The shielded design prevents dust and debris intrusion, prolonging service life and reducing maintenance needs by limiting contamination that could affect performance.
What load capacities are expected from this type of bearing?
This product possesses a basic dynamic load rating of 42.3kN and a static load rating of 24kN, making it suitable for applications with significant load requirements.
What is the suitable operating speed for this bearing?
The reference speed for optimal operation is 17,000 r/min, while the limiting speed is capped at 8,500 r/min, ensuring reliable functioning within these parameters.
Deep Groove Ball Bearings
