SKF 6002-2Z/C3GJN 1 Row Deep Groove Ball Bearing - 15 mm ID, 32 mm OD
- RS Stock No.:
- 123-4809
- Mfr. Part No.:
- 6002-2Z/C3GJN
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£11.37
(exc. VAT)
£13.64
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 26 unit(s) ready to ship
- Plus 11 unit(s) ready to ship from another location
- Plus 60 unit(s) shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £11.37 |
| 5 - 9 | £10.92 |
| 10 - 24 | £10.67 |
| 25 + | £10.45 |
*price indicative
- RS Stock No.:
- 123-4809
- Mfr. Part No.:
- 6002-2Z/C3GJN
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Deep Groove Ball Bearing | |
| Inside Diameter | 15 mm | |
| Outside Diameter | 32 mm | |
| Race Width | 9mm | |
| Cage Material | Sheet Metal | |
| Ball Material | Steel | |
| End Type | Shielded | |
| Number of Rows | 1 | |
| Static Load Rating | 2.85kN | |
| Internal Clearance | C3 | |
| Dynamic Load Rating | 5.85kN | |
| Standards/Approvals | No | |
| Bore Type | Parallel | |
| Limiting Speed | 26000rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Race Type | Plain | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Deep Groove Ball Bearing | ||
Inside Diameter 15 mm | ||
Outside Diameter 32 mm | ||
Race Width 9mm | ||
Cage Material Sheet Metal | ||
Ball Material Steel | ||
End Type Shielded | ||
Number of Rows 1 | ||
Static Load Rating 2.85kN | ||
Internal Clearance C3 | ||
Dynamic Load Rating 5.85kN | ||
Standards/Approvals No | ||
Bore Type Parallel | ||
Limiting Speed 26000rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
Race Type Plain | ||
- COO (Country of Origin):
- IT

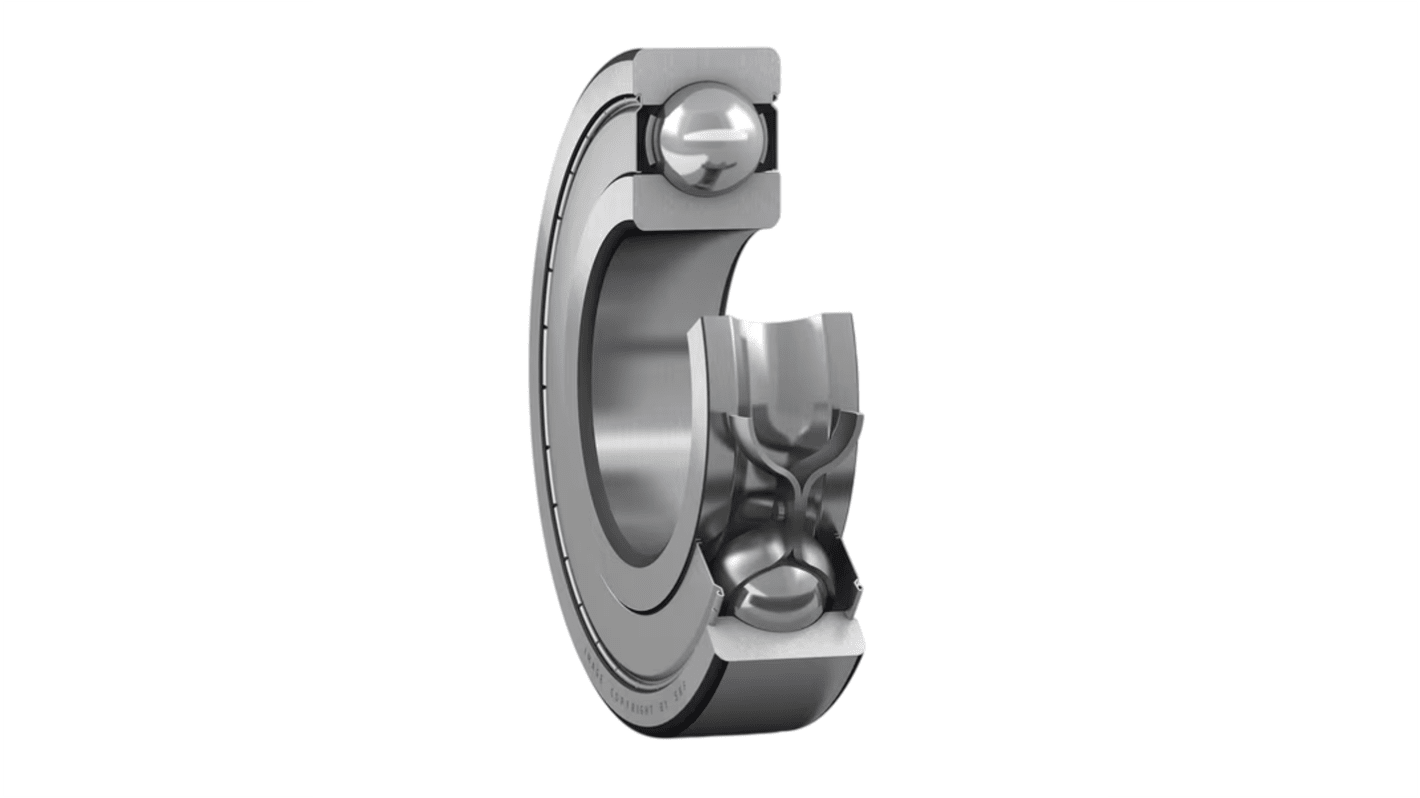

SKF Deep Groove Ball Bearing, 15mm Inside Diameter, 32mm Outside Diameter - 6002-2Z/C3GJN
This deep groove ball bearing is designed for efficient performance in various applications. This single row deep groove bearing features an inside diameter of 15mm and an outside diameter of 32mm, with a race width of 9mm. Suitable for high load capacity operations, it ensures smooth and reliable motion, making it ideal for mechanical and electrical industries.
Features & Benefits
• Constructed from high-strength steel for durability
• Shielded on both sides to prevent contamination and wear
• Engineered for low noise operation at high speeds
• Ideal for cylindrical bore usage enhancing compatibility
Applications
• Used for precision equipment in automation systems
• Utilised in electric motor assemblies to maintain smooth rotation
• Effective in conveyor systems for efficient material handling
• Suitable for robotics requiring reliable movement
• Used in industrial machinery where space is limited
What is the significance of the C3 bearing clearance?
The C3 bearing clearance allows for a greater internal space between races and balls, accommodating thermal expansion during high-speed operation and enhancing lubrication flow. This results in lower friction and improved reliability in demanding applications.
How does a shielded design benefit the bearing's longevity?
A shielded design protects against dust, dirt, and other contaminants that could lead to premature wear, ensuring the bearing remains efficient and functional over an extended period. This is particularly valuable in environments where debris is present.
What load ratings should I consider when selecting this bearing for my application?
With a static load rating of 2.85kN and a dynamic load rating of 5.85kN, it's important to ensure that your application does not exceed these limits to prevent premature failure, particularly under fluctuating load conditions.
