SKF 1307 EKTN9 35 mm ID 2 Row Ball Bearing -, 80 mm OD
- RS Stock No.:
- 588-003
- Mfr. Part No.:
- 1307 EKTN9
- Brand:
- SKF
Subtotal (1 pack of 10 units)*
£359.23
(exc. VAT)
£431.08
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £359.23 | £35.923 |
*price indicative
- RS Stock No.:
- 588-003
- Mfr. Part No.:
- 1307 EKTN9
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Ball Bearing | |
| Inside Diameter | 35 mm | |
| Outside Diameter | 80 mm | |
| Race Width | 21mm | |
| Cage Material | Non-Metallic | |
| Number of Rows | 2 | |
| Static Load Rating | 8.5kN | |
| Dynamic Load Rating | 26.5kN | |
| Series | 1307 EKTN9 | |
| Standards/Approvals | RoHS | |
| Bore Type | Cylindrical | |
| Limiting Speed | 11000rpm | |
| Bearing Type | Self-Aligning | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Ball Bearing | ||
Inside Diameter 35 mm | ||
Outside Diameter 80 mm | ||
Race Width 21mm | ||
Cage Material Non-Metallic | ||
Number of Rows 2 | ||
Static Load Rating 8.5kN | ||
Dynamic Load Rating 26.5kN | ||
Series 1307 EKTN9 | ||
Standards/Approvals RoHS | ||
Bore Type Cylindrical | ||
Limiting Speed 11000rpm | ||
Bearing Type Self-Aligning | ||

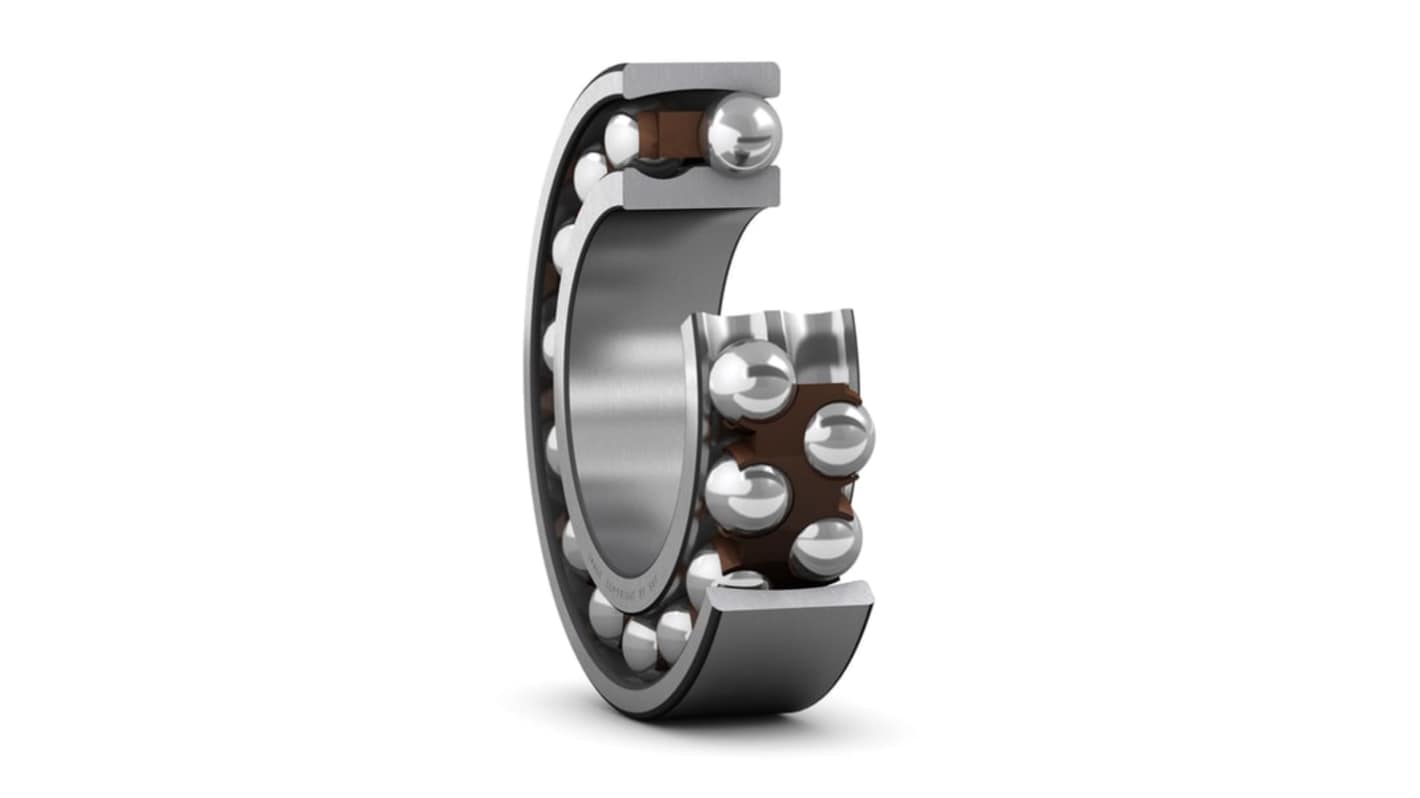

The SKF Self-aligning ball bearings, with a tapered bore, have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection. The tapered bore facilitates ease of mounting via adapter sleeves or withdrawal sleeves.
Ease of mounting via adapter sleeves or withdrawal sleeves
Accommodate static and dynamic misalignment
Excellent high speed performance
Excellent light load performance
Low friction
