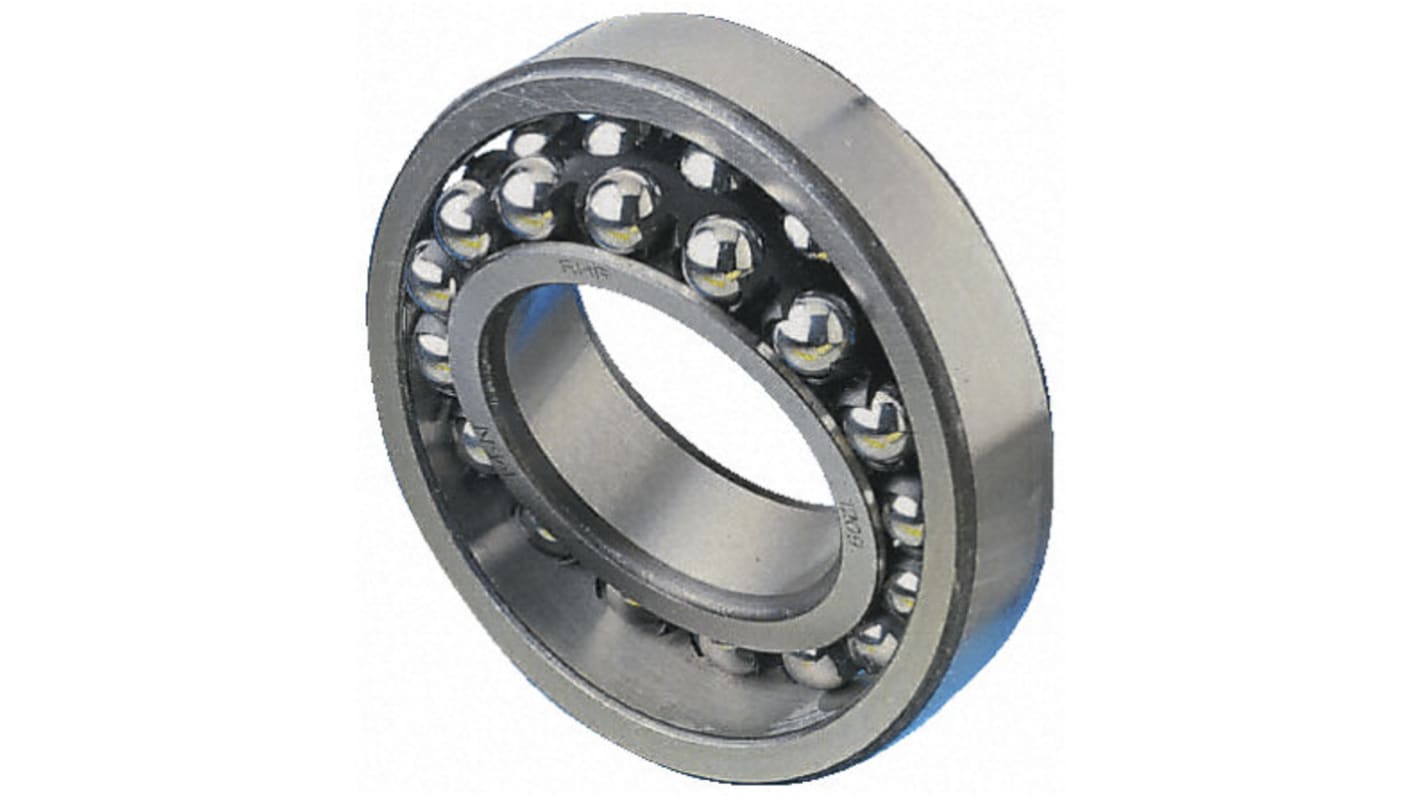

SKF 2309 E-2RS1TN9 Self Aligning Ball Bearing- Both Sides Sealed 45mm I.D, 100mm O.D
- RS Stock No.:
- 506-371
- Mfr. Part No.:
- 2309 E-2RS1TN9
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£185.27
(exc. VAT)
£222.32
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £185.27 |
| 5 - 9 | £177.86 |
| 10 - 24 | £174.17 |
| 25 + | £170.44 |
*price indicative
- RS Stock No.:
- 506-371
- Mfr. Part No.:
- 2309 E-2RS1TN9
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 45mm | |
| Outside Diameter | 100mm | |
| Race Width | 36mm | |
| Ball Bearing Type | Self Aligning Ball Bearing | |
| Sealing Arrangement | Both Sides Sealed | |
| Bearing Clearance | CN | |
| Material | Steel | |
| Ball Material | Steel | |
| Cage Material | Non-metallic | |
| Number of Rows | 2 | |
| Static Load Rating | 13.4kN | |
| Dynamic Load Rating | 39kN | |
| Bore Type | Parallel | |
| Bearing Series | 3 Medium | |
| Race Type | Plain | |
| Partial Bearing Code | 2309 | |
Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 45mm | ||
Outside Diameter 100mm | ||
Race Width 36mm | ||
Ball Bearing Type Self Aligning Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Non-metallic | ||
Number of Rows 2 | ||
Static Load Rating 13.4kN | ||
Dynamic Load Rating 39kN | ||
Bore Type Parallel | ||
Bearing Series 3 Medium | ||
Race Type Plain | ||
Partial Bearing Code 2309 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- SE
Double Row Self - Aligning
Radial Self-Aligning Ball Bearing
These bearings are designed to accommodate shaft deflection when running and will also cope with initial misalignment. The double row bearing is designed primarily to withstand radial load with a small capacity for axial load. Also available with ring seals (rubbing seals) made from oil-resistant, non-wearing synthetic rubber with steel reinforcement on both sides (Type 2RS1).
Open Bearings
ETN9 and KTN9 are Open self-aligning bearings without a seal available in parallel or Taper bores.
Sealed bearings
2RS1TN9 are sealed (NBR) bearings packed with grease with a lithium thickener suitable for temperatures from -40°C to + 100°C. They are sealed for life, so should not be heated above 80°C before mounting and must not be washed out under any circumstances.
TN suffix denotes polyamide cage
Supplied with
instruction leaflet.
