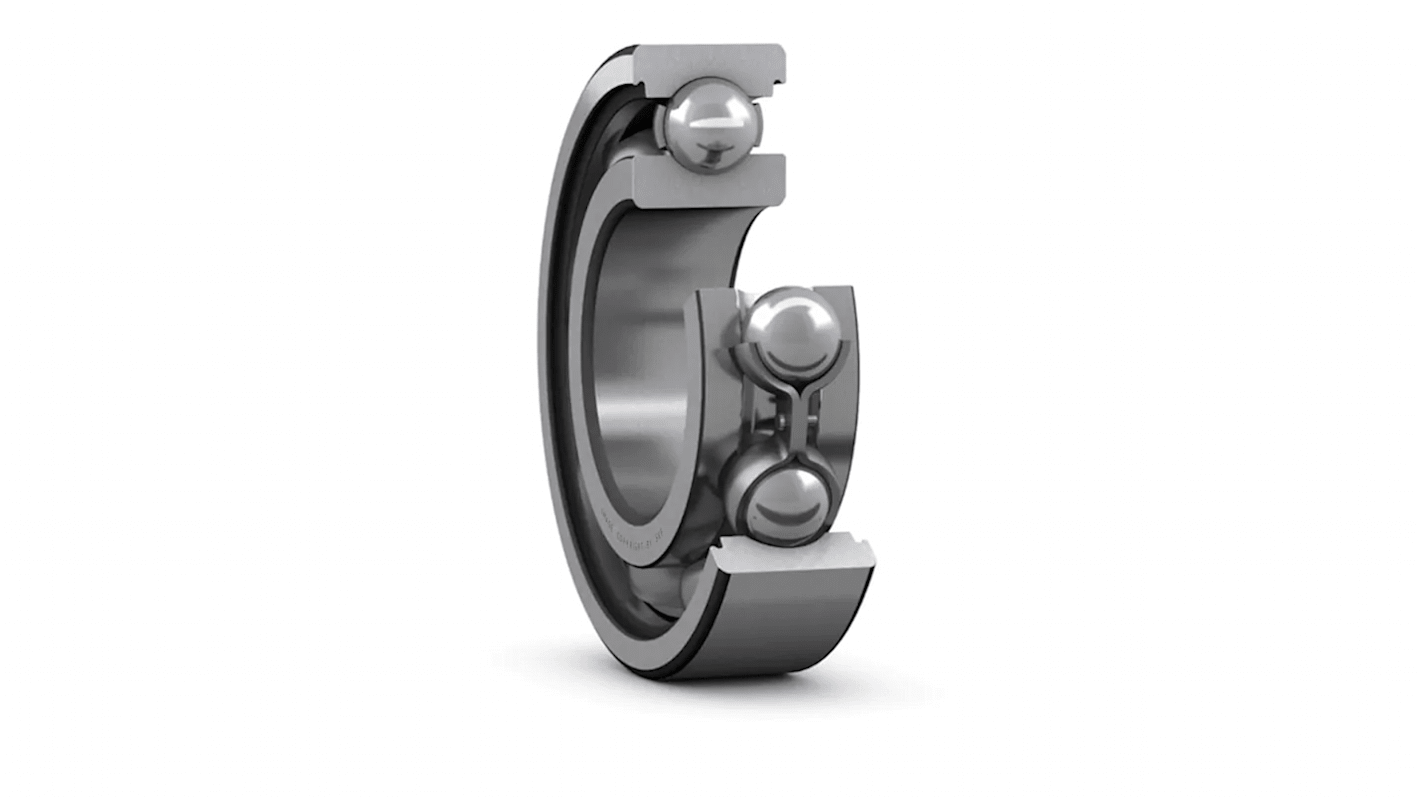

SKF 6212/C3 Single Row Deep Groove Ball Bearing- Open Type 60mm I.D, 110mm O.D
- RS Stock No.:
- 505-918
- Mfr. Part No.:
- 6212/C3
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£29.66
(exc. VAT)
£35.59
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12 unit(s) ready to ship from another location
- Plus 10 unit(s) shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £29.66 |
5 - 9 | £28.46 |
10 - 24 | £27.88 |
25 + | £27.26 |
*price indicative
- RS Stock No.:
- 505-918
- Mfr. Part No.:
- 6212/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 60mm | |
Outside Diameter | 110mm | |
Race Width | 22mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | C3 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 36kN | |
Dynamic Load Rating | 55.3kN | |
Bore Type | Parallel | |
Bearing Series | 2 Light | |
Model Number p | 6212C3 | |
Flange Outside Diameter | 110mm | |
Partial Bearing Code | 6212 | |
Race Type | Plain | |
Race Material | Steel | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 60mm | ||
Outside Diameter 110mm | ||
Race Width 22mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 36kN | ||
Dynamic Load Rating 55.3kN | ||
Bore Type Parallel | ||
Bearing Series 2 Light | ||
Model Number p 6212C3 | ||
Flange Outside Diameter 110mm | ||
Partial Bearing Code 6212 | ||
Race Type Plain | ||
Race Material Steel | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
SKF Ball Bearing, Deep-Groove Bearing Type, Single Row, 60mm ID, 110mm OD - 6212/C3
When you want a ball bearing that rolls with the punches in harsh industrial settings, you can't go wrong with this one from SKF. You can be sure of its staying power, thanks to a deep-groove design that minimises friction to cut back on wear and heat generation. An internal clearance of C3 ensures the rolling parts move freely between the races. This means you can trust this bearing's safe in high-speed applications rotating as fast as 13,000r/min. With a fatigue load limit of 1.5kN, it can handle heavy loads before there's any risk of metal failure.
Features & Benefits
• Robust carbon-rich bearing steel for the durability needed in demanding industrial settings
• Dynamic load rating of 55.3kN to take the strain of heavy-duty applications
• Rugged sheet metal cage keeps balls firmly inside races for smooth operation
• Dynamic load rating of 55.3kN to take the strain of heavy-duty applications
• Rugged sheet metal cage keeps balls firmly inside races for smooth operation
Applications
• Dental tools
• Electric motors
• Optical encoders
• Industrial pumps
• Electric motors
• Optical encoders
• Industrial pumps
Does this product come with lubrication?
No, this deep-groove ball bearing works without lubricant. As this means you won't need to relubricate at any point, you can say goodbye to regular regreasing.
