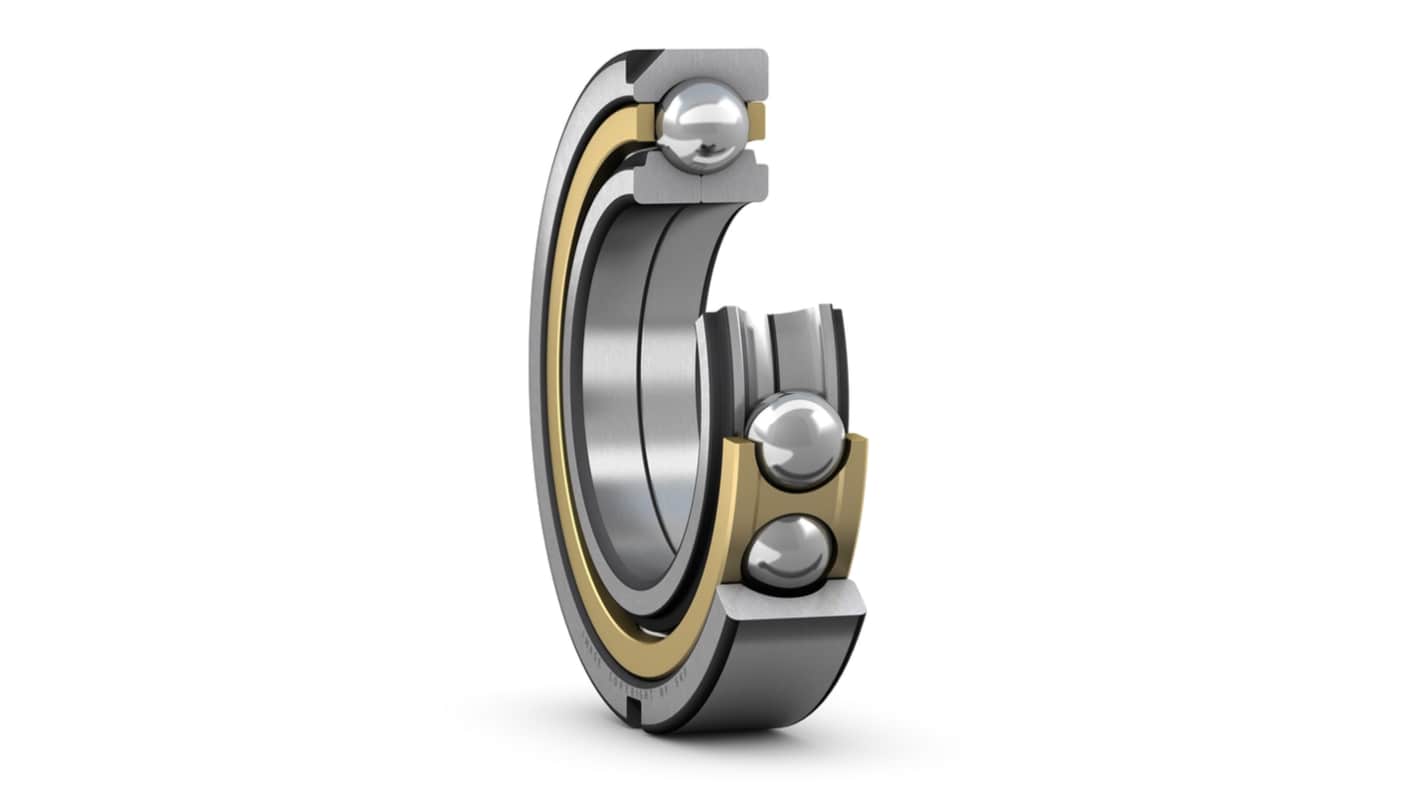

SKF 7409 BGM 1 Row Angular Contact Ball Bearing - 45 mm ID, 120 mm OD 29 mm Race Width
- RS Stock No.:
- 460-735
- Mfr. Part No.:
- 7409 BGM
- Brand:
- SKF
Subtotal (1 unit)*
£380.46
(exc. VAT)
£456.55
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 30 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £380.46 |
*price indicative
- RS Stock No.:
- 460-735
- Mfr. Part No.:
- 7409 BGM
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 45 mm | |
| Product Type | Angular Contact Ball Bearing | |
| Outside Diameter | 120 mm | |
| Race Width | 29mm | |
| Cage Material | Machined Brass | |
| Ball Material | Bearing Steel | |
| Number of Rows | 1 | |
| Static Load Rating | 55kN | |
| Contact Angle | 40° | |
| Dynamic Load Rating | 85.2kN | |
| Standards/Approvals | No | |
| Series | 7409 | |
| Limiting Speed | 7500rpm | |
| Bearing Type | Single Row Angular Contact Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 45 mm | ||
Product Type Angular Contact Ball Bearing | ||
Outside Diameter 120 mm | ||
Race Width 29mm | ||
Cage Material Machined Brass | ||
Ball Material Bearing Steel | ||
Number of Rows 1 | ||
Static Load Rating 55kN | ||
Contact Angle 40° | ||
Dynamic Load Rating 85.2kN | ||
Standards/Approvals No | ||
Series 7409 | ||
Limiting Speed 7500rpm | ||
Bearing Type Single Row Angular Contact Ball | ||
- COO (Country of Origin):
- AT
Akshay
The SKF Single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.
High-speed capability
Accommodate relatively high radial loads and large unilateral axial loads
