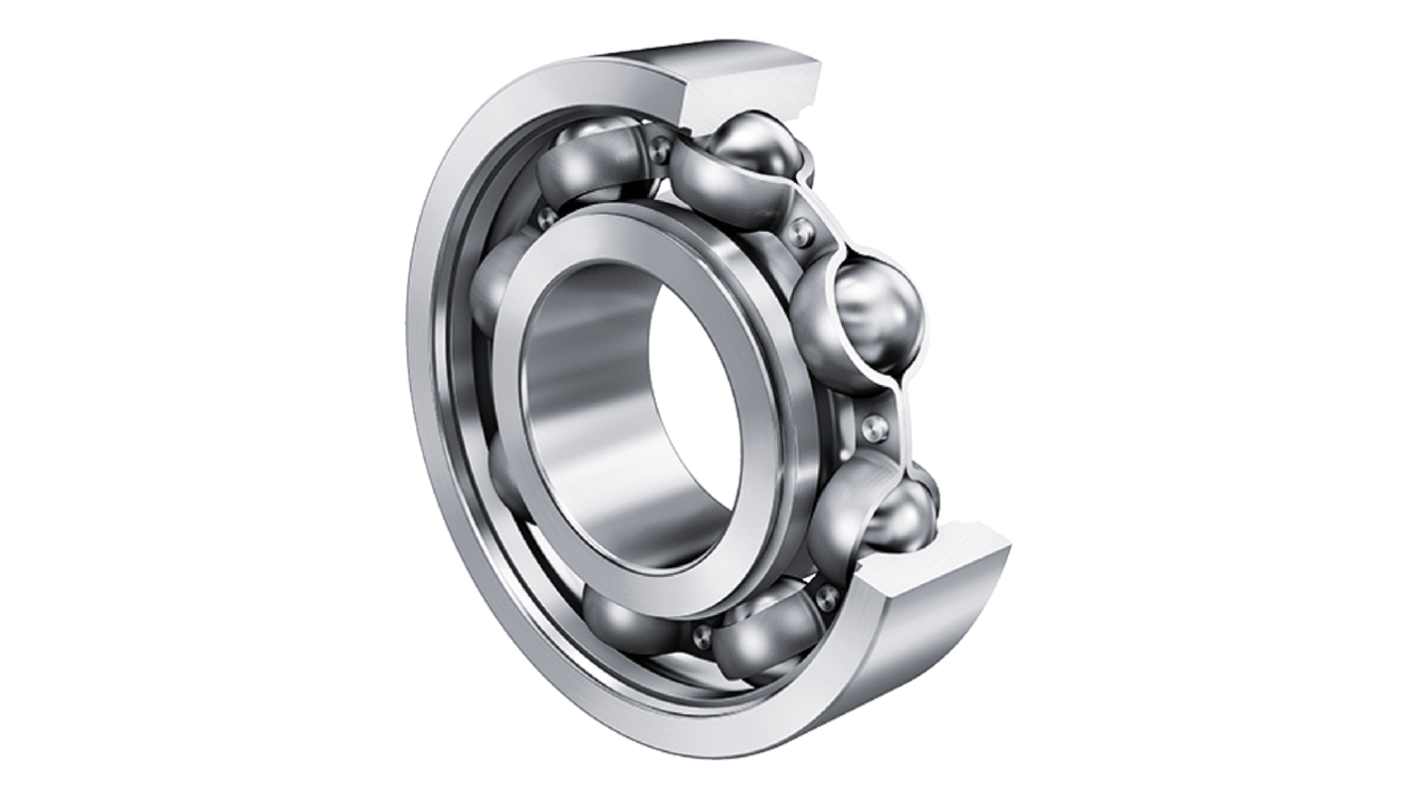

FAG 6211-C-C3 1 Row Deep Groove Ball Bearing - 55 mm ID, 100 mm OD
- RS Stock No.:
- 312-848
- Mfr. Part No.:
- 6211-C-C3
- Brand:
- FAG
Subtotal (1 unit)*
£21.08
(exc. VAT)
£25.30
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 16 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £21.08 |
*price indicative
- RS Stock No.:
- 312-848
- Mfr. Part No.:
- 6211-C-C3
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Deep Groove Ball Bearing | |
| Inside Diameter | 55mm | |
| Outside Diameter | 100mm | |
| Race Width | 21mm | |
| Ball Material | Steel | |
| Race Material | Steel | |
| Cage Material | Steel | |
| End Type | Open | |
| Number of Rows | 1 | |
| Internal Clearance | C3 | |
| Static Load Rating | 29000N | |
| Dynamic Load Rating | 50000N | |
| Standards/Approvals | DIN 625-1 | |
| Series | 6211 | |
| Bore Type | Cylindrical | |
| Limiting Speed | 10400rpm | |
| Flange Outside Diameter | 100mm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Race Type | Deep Grooved | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Deep Groove Ball Bearing | ||
Inside Diameter 55mm | ||
Outside Diameter 100mm | ||
Race Width 21mm | ||
Ball Material Steel | ||
Race Material Steel | ||
Cage Material Steel | ||
End Type Open | ||
Number of Rows 1 | ||
Internal Clearance C3 | ||
Static Load Rating 29000N | ||
Dynamic Load Rating 50000N | ||
Standards/Approvals DIN 625-1 | ||
Series 6211 | ||
Bore Type Cylindrical | ||
Limiting Speed 10400rpm | ||
Flange Outside Diameter 100mm | ||
Bearing Type Single Row Deep Groove Ball | ||
Race Type Deep Grooved | ||
The FAG Deep Groove Ball Bearing combines superior performance with reliable operation. Designed with a steel sheet metal cage, it offers enhanced stability and endurance, making it ideal for various applications. Featuring an advanced internal design, this generation of bearings provides a larger internal clearance, allowing for effective load management and reduced friction. Its compact dimensions enable easy integration into systems, while the specific sealing arrangement ensures minimal maintenance.
Excellent load management aids in operational efficiency
Designed to function without grease for reduced maintenance efforts
Manages high temperatures effectively which ensuring reliable performance
Accommodates both radial and axial loads enhancing versatility
Compact size allows for seamless installation across various machinery
