FAG 6316-J20AB-C3 1 Row Ball Bearing - 80 mm ID, 170 mm OD
- RS Stock No.:
- 310-819
- Mfr. Part No.:
- 6316-J20AB-C3
- Brand:
- FAG
Subtotal (1 unit)*
£746.39
(exc. VAT)
£895.67
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £746.39 |
*price indicative
- RS Stock No.:
- 310-819
- Mfr. Part No.:
- 6316-J20AB-C3
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 80 mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 170 mm | |
| Race Width | 39mm | |
| Cage Material | Steel | |
| End Type | Open | |
| Number of Rows | 1 | |
| Static Load Rating | 87000N | |
| Internal Clearance | C3 | |
| Dynamic Load Rating | 131000N | |
| Bore Type | Cylindrical | |
| Standards/Approvals | No | |
| Limiting Speed | 5400rpm | |
| Bearing Type | Deep Groove | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 80 mm | ||
Product Type Ball Bearing | ||
Outside Diameter 170 mm | ||
Race Width 39mm | ||
Cage Material Steel | ||
End Type Open | ||
Number of Rows 1 | ||
Static Load Rating 87000N | ||
Internal Clearance C3 | ||
Dynamic Load Rating 131000N | ||
Bore Type Cylindrical | ||
Standards/Approvals No | ||
Limiting Speed 5400rpm | ||
Bearing Type Deep Groove | ||
- COO (Country of Origin):
- DE

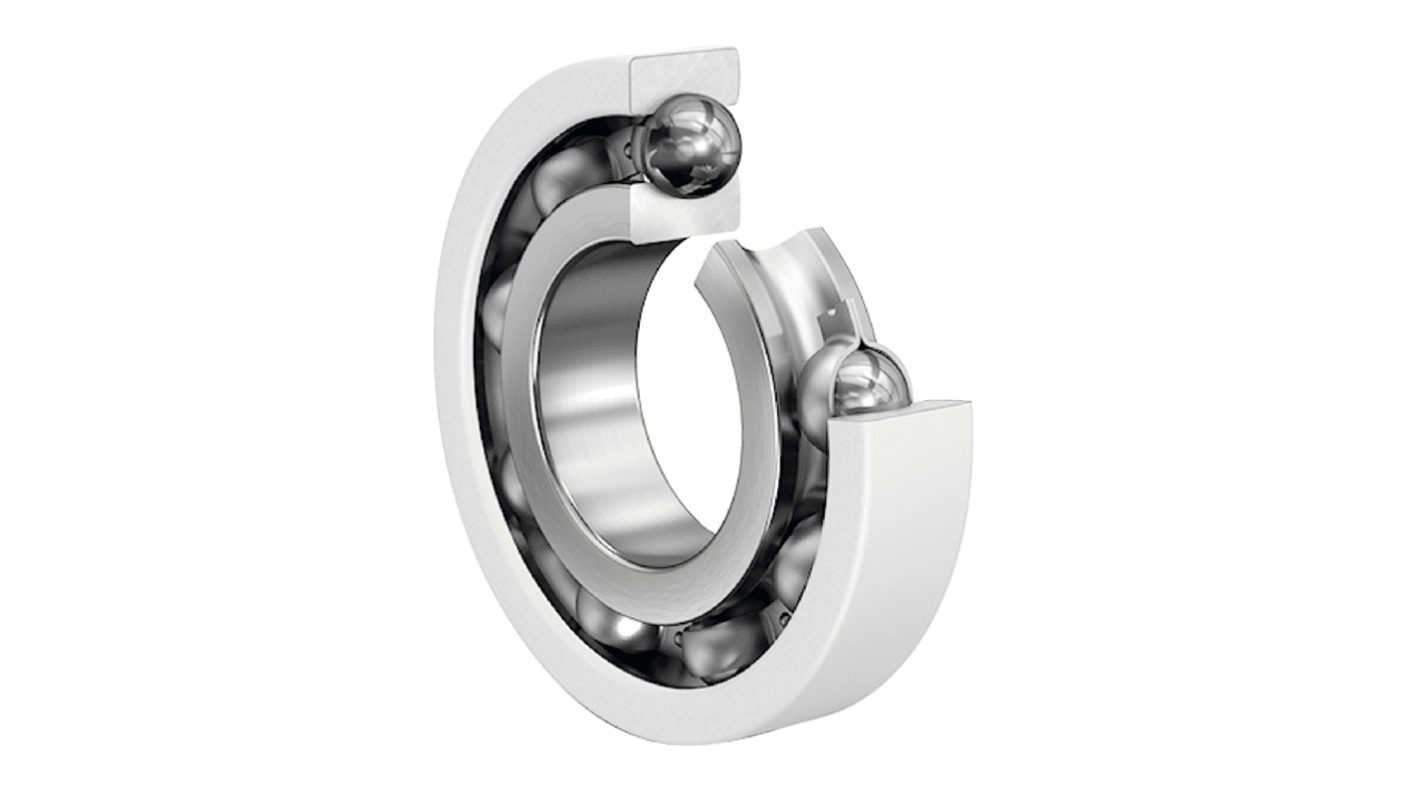

The FAG Deep Groove Ball Bearing is engineered for reliability and precision in diverse applications. With a robust steel sheet metal cage and a ceramic-coated outer ring, this bearing ensures superior performance under various operational conditions. Designed to handle substantial radial loads, it provides enhanced stability and longevity. This product variant allows for a maximum operating temperature of 150 °C, making it suitable for demanding environments.
Designed for high radial load capacity providing stability
Wide operating temperature range caters to demanding environments
Cylindrical bore type allows for versatile installation options
Increased internal clearance accommodates thermal expansion
