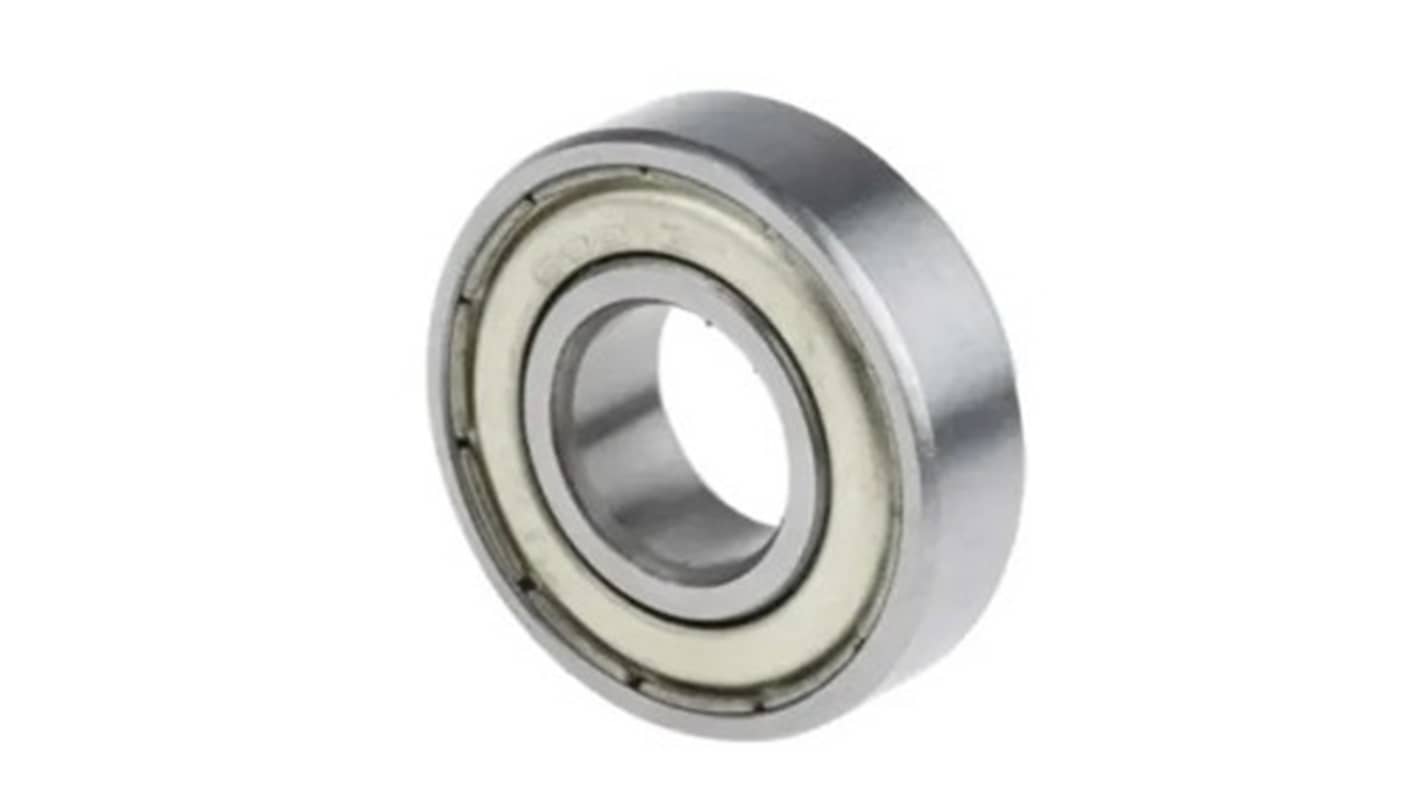

RS PRO 1 Row Ball Bearing - 75 mm ID, 115 mm OD
- RS Stock No.:
- 291-608
- Brand:
- RS PRO
Subtotal (1 unit)*
£58.85
(exc. VAT)
£70.62
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £58.85 |
*price indicative
- RS Stock No.:
- 291-608
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Inside Diameter | 75 mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 115 mm | |
| Race Width | 20mm | |
| Race Material | Steel | |
| Cage Material | Steel | |
| Ball Material | Steel | |
| End Type | Double Shielded | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Static Load Rating | 33.5kN | |
| Dynamic Load Rating | 39.6kN | |
| Series | 2 Light | |
| Standards/Approvals | RoHS | |
| Bore Type | Parallel | |
| Limiting Speed | 6800rpm | |
| Race Type | Plain | |
| Bearing Type | Deep Groove | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Inside Diameter 75 mm | ||
Product Type Ball Bearing | ||
Outside Diameter 115 mm | ||
Race Width 20mm | ||
Race Material Steel | ||
Cage Material Steel | ||
Ball Material Steel | ||
End Type Double Shielded | ||
Number of Rows 1 | ||
Internal Clearance CN | ||
Static Load Rating 33.5kN | ||
Dynamic Load Rating 39.6kN | ||
Series 2 Light | ||
Standards/Approvals RoHS | ||
Bore Type Parallel | ||
Limiting Speed 6800rpm | ||
Race Type Plain | ||
Bearing Type Deep Groove | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
RS PRO Deep Groove Ball Bearing – Both Sides Shielded
RS PRO deep groove ball bearings are celebrated for their adaptability and exceptional performance. As the most used bearing type, they serve applications across various industries and environments. Their design enables them to manage radial and axial loads, making them crucial components in numerous mechanical systems.
Why Opt for Both Side Shielded?
Shielded bearings are engineered to safeguard the internal components. They feature a metal shield on both sides, which creates a small gap between the shield and the inner race. This design allows for high-speed operation without adding extra friction.
Features and Benefits
Applications
