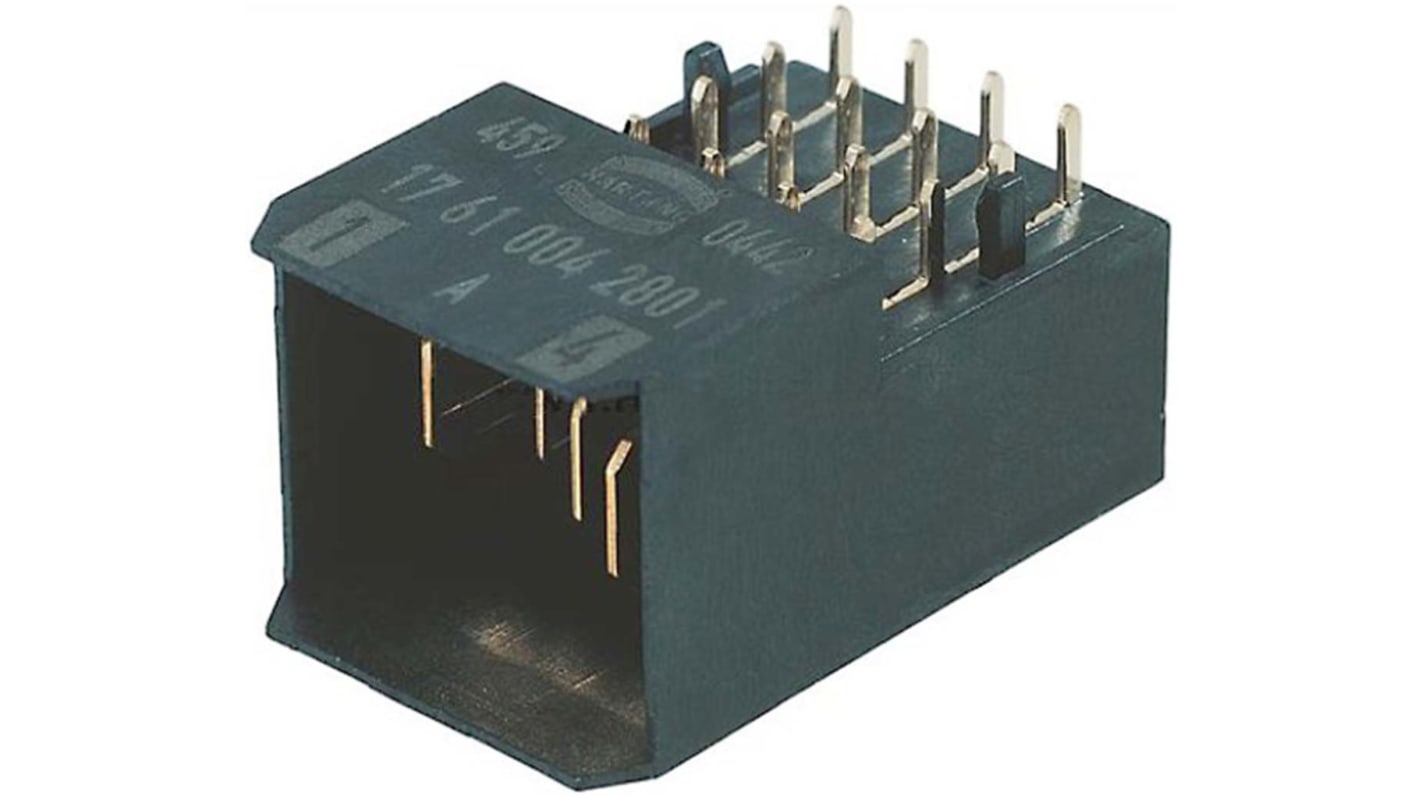

Harting, Har-Bus HM Power 3mm Pitch Hard Metric Backplane Connector, Male, Right Angle, 4 Row, 4 Way, 1761
- RS Stock No.:
- 865-8036
- Mfr. Part No.:
- 17610042801
- Brand:
- HARTING
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 865-8036
- Mfr. Part No.:
- 17610042801
- Brand:
- HARTING
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Backplane Connector Type | Hard Metric | |
| Gender | Male | |
| Number of Contacts | 4 | |
| Number of Rows | 4 | |
| Body Orientation | Right Angle | |
| Housing Material | Liquid Crystal Polymer | |
| Pitch | 3mm | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold over Nickel | |
| Current Rating | 23 A @ 70 °C | |
| Termination Method | Solder | |
| Series | Har-Bus HM Power | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -55°C | |
| Series Number | 1761 | |
Select all | ||
|---|---|---|
Brand HARTING | ||
Backplane Connector Type Hard Metric | ||
Gender Male | ||
Number of Contacts 4 | ||
Number of Rows 4 | ||
Body Orientation Right Angle | ||
Housing Material Liquid Crystal Polymer | ||
Pitch 3mm | ||
Contact Material Copper Alloy | ||
Contact Plating Gold over Nickel | ||
Current Rating 23 A @ 70 °C | ||
Termination Method Solder | ||
Series Har-Bus HM Power | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -55°C | ||
Series Number 1761 | ||
- COO (Country of Origin):
- DE
Harting Har-Bus® HM Backplane Power Connectors
Har-Bus® HM backplane power connectors designed according to OBSAI (Open Base Station Architecture Initiative) V1.1 that provide a reliable and cost effective solution for connecting plug-in units to the backplane. These Har-Bus® HM backplane power connectors have a small form factor, a high current rating of up to 23 A per contact, 3 level staggering, a flatrock design and can be used in conjunction with harbus-HM 2mm connectors.
Stock number 865-8036 is a male plug daughtercard connector with solder SMC terminations for use with daughtercards
Stock number 865-8045 is a female backplane connector with press-in terminations
Stock number 865-8036 is a male plug daughtercard connector with solder SMC terminations for use with daughtercards
Stock number 865-8045 is a female backplane connector with press-in terminations
