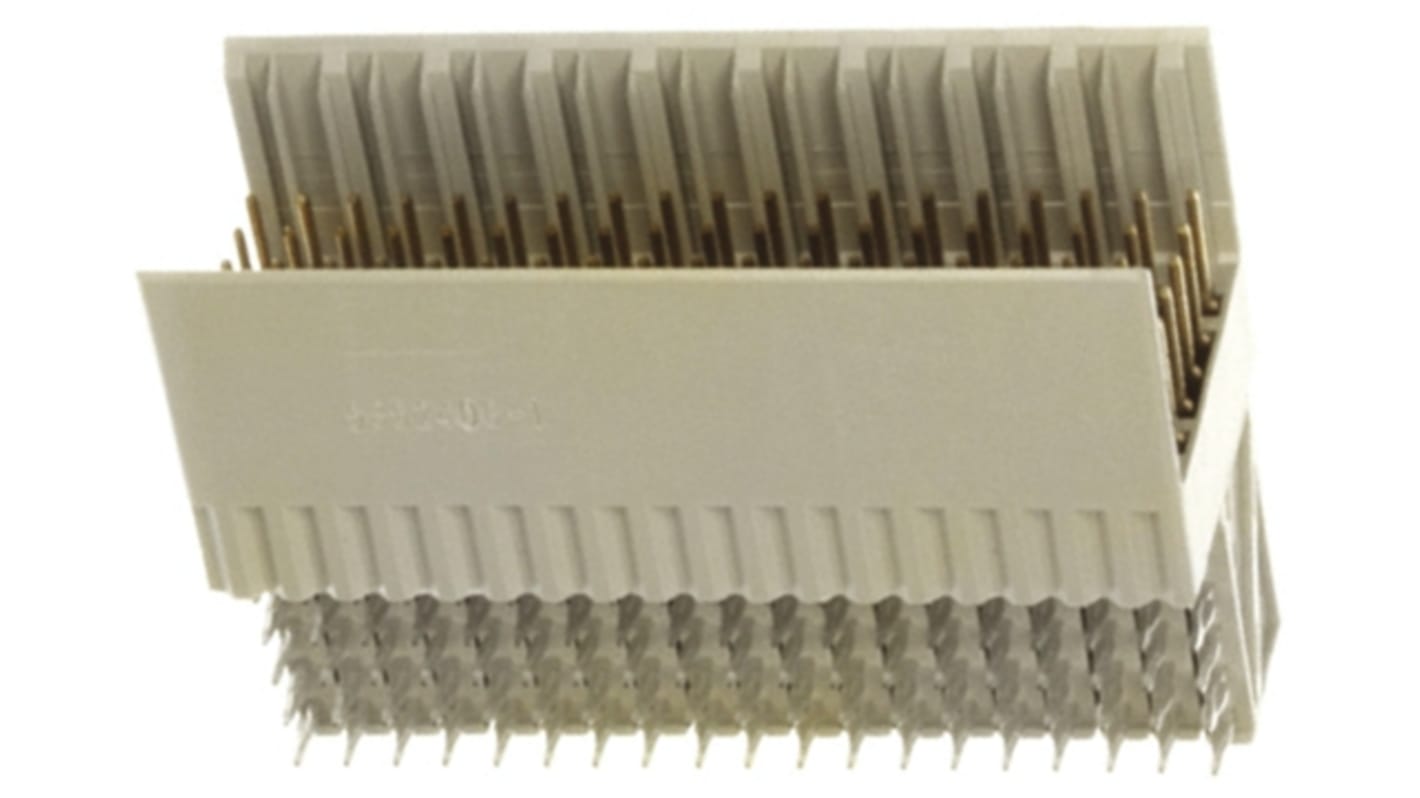

TE Connectivity, Z-PACK HM 2mm Pitch Hard Metric Type B Backplane Connector, Male, Right Angle, 19 Column, 5 Row, 95 Way
- RS Stock No.:
- 793-6971
- Mfr. Part No.:
- 5352406-1
- Brand:
- TE Connectivity
Discontinued
- RS Stock No.:
- 793-6971
- Mfr. Part No.:
- 5352406-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Backplane Connector Type | Hard Metric Type B | |
| Gender | Male | |
| Number of Contacts | 95 | |
| Number of Columns | 19 | |
| Number of Rows | 5 | |
| Body Orientation | Right Angle | |
| Housing Material | PET | |
| Pitch | 2mm | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Tin over Nickel | |
| Termination Method | Solder | |
| Series | Z-PACK HM | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Backplane Connector Type Hard Metric Type B | ||
Gender Male | ||
Number of Contacts 95 | ||
Number of Columns 19 | ||
Number of Rows 5 | ||
Body Orientation Right Angle | ||
Housing Material PET | ||
Pitch 2mm | ||
Contact Material Phosphor Bronze | ||
Contact Plating Tin over Nickel | ||
Termination Method Solder | ||
Series Z-PACK HM | ||
- COO (Country of Origin):
- CN
TE Connectivity Z-PACK™ HM 2mm Type B Backplane Connectors
Z-PACK™ HM 2mm Type B backplane right angle and vertical mounting header and receptacle connectors for a 2mm HM interface available as free or fixed board PCB mounting with ground return shielding options, ACTION PIN post contact options and various CompactPCI designation configurations, please refer to additonal data table for details. These Z-PACK™ Hard Metric Type B backplane connectors have UL 94V-0 polyester housings and offer standard crosstalk.
The Z-PACK 2 mm HM Interconnection System is designed as a two part system for the connection of free boards (Daughterboards or PCBs) to fixed boards (Motherboards, Backplane or Backpanel) and feed the connection through the fixed board.
