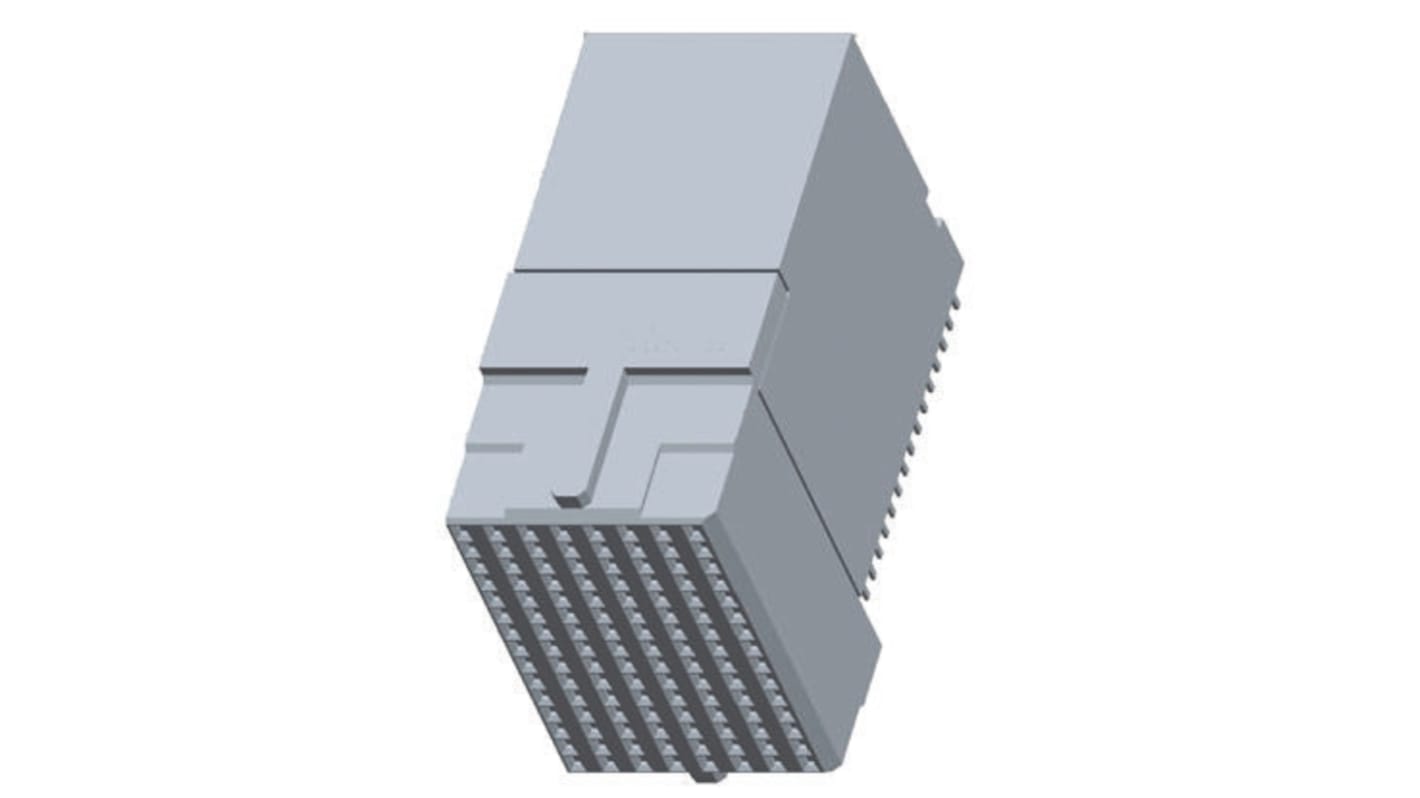

TE Connectivity, Z-PACK TinMan 1.9mm Pitch High Speed Backplane Connector, Female, Right Angle, 16 Column, 15 Row, 240
- RS Stock No.:
- 684-1400
- Mfr. Part No.:
- 1934221-1
- Brand:
- TE Connectivity
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 684-1400
- Mfr. Part No.:
- 1934221-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Backplane Connector Type | High Speed | |
| Gender | Female | |
| Number of Contacts | 240 | |
| Number of Columns | 16 | |
| Number of Rows | 15 | |
| Body Orientation | Right Angle | |
| Housing Material | Liquid Crystal Polymer | |
| Pitch | 1.9mm | |
| Contact Material | Copper Alloy | |
| Mounting Type | Through Hole | |
| Contact Plating | Gold over Nickel | |
| Termination Method | Solder | |
| Series | Z-PACK TinMan | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Backplane Connector Type High Speed | ||
Gender Female | ||
Number of Contacts 240 | ||
Number of Columns 16 | ||
Number of Rows 15 | ||
Body Orientation Right Angle | ||
Housing Material Liquid Crystal Polymer | ||
Pitch 1.9mm | ||
Contact Material Copper Alloy | ||
Mounting Type Through Hole | ||
Contact Plating Gold over Nickel | ||
Termination Method Solder | ||
Series Z-PACK TinMan | ||
Z-PACK™ TinMan Connectors
Note
Number of contacts: the first figure represents the number of pairs, the second the number of columns.
The Z-PACK 2 mm HM Interconnection System is designed as a two part system for the connection of free boards (Daughterboards or PCBs) to fixed boards (Motherboards, Backplane or Backpanel) and feed the connection through the fixed board.
