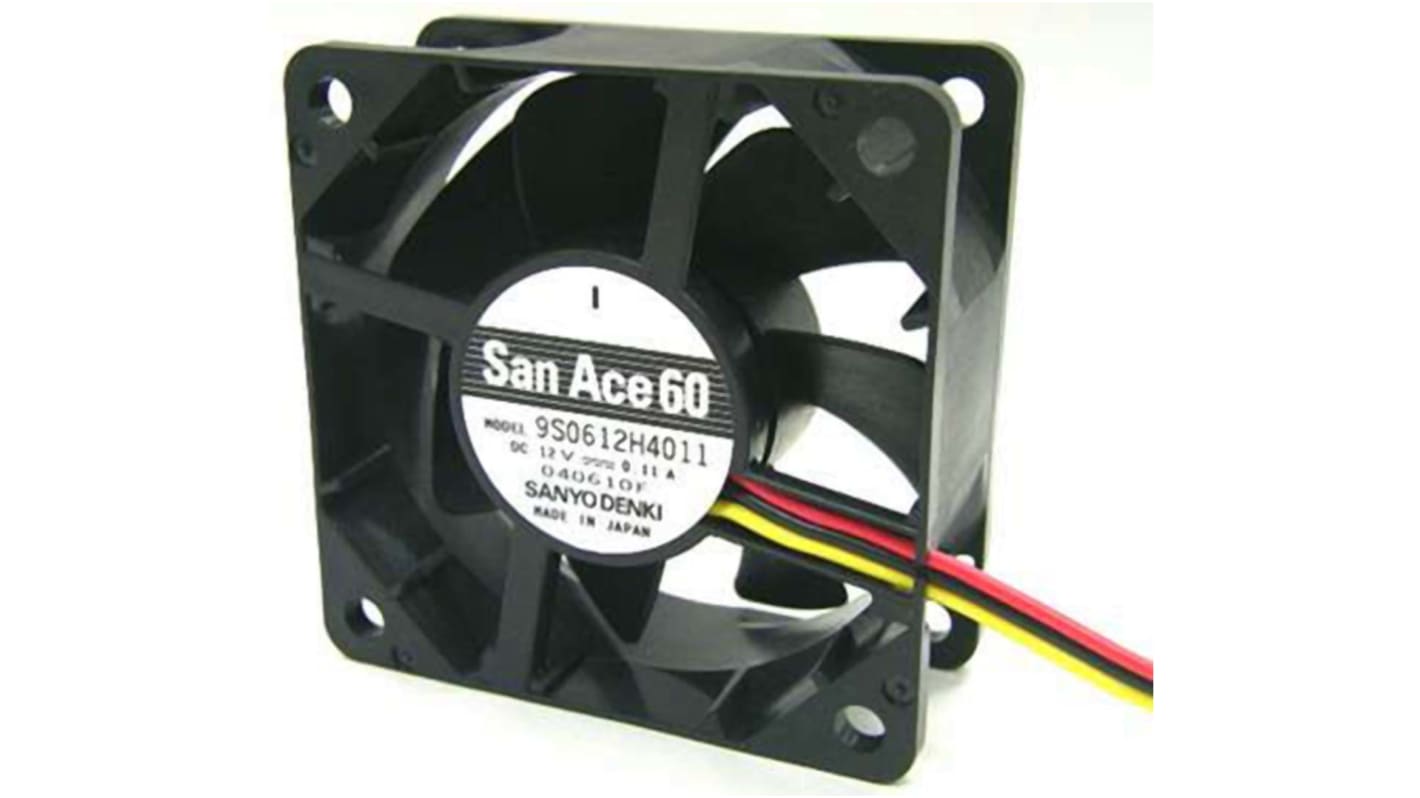

Sanyo Denki San Ace 9S Series Axial Fan, 12V dc, 44 m³/h, 2.4 W, 200 mA Max 60 mm 60mm 25 mm
- RS Stock No.:
- 862-1605
- Distrelec Article No.:
- 301-16-834
- Mfr. Part No.:
- 9S0612S4011
- Brand:
- Sanyo Denki
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£13.58
(exc. VAT)
£16.30
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 188 unit(s) shipping from 10 August 2026
- Plus 16 unit(s) shipping from 10 August 2026
- Plus 90 unit(s) shipping from 03 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £13.58 |
| 5 - 9 | £12.76 |
| 10 - 24 | £11.95 |
| 25 - 49 | £11.42 |
| 50 + | £10.32 |
*price indicative
- RS Stock No.:
- 862-1605
- Distrelec Article No.:
- 301-16-834
- Mfr. Part No.:
- 9S0612S4011
- Brand:
- Sanyo Denki
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sanyo Denki | |
| Product Type | Axial Fan | |
| Supply Voltage | 12V dc | |
| Power Consumption | 2.4W | |
| Maximum Current | 200mA | |
| Air Flow | 44m³/h | |
| Noise Level | 31dB | |
| Fan Speed | 5000rpm | |
| Terminal Type | Screw | |
| Direction of Curve | Forward | |
| Fan Frame Size | 60 mm | |
| Bearing Type | Ball | |
| Fan Frame Type | Square | |
| Height | 60mm | |
| Series | San Ace 9S | |
| Standards/Approvals | RoHS | |
| Depth | 25mm | |
| Width | 60mm | |
| Select all | ||
|---|---|---|
Brand Sanyo Denki | ||
Product Type Axial Fan | ||
Supply Voltage 12V dc | ||
Power Consumption 2.4W | ||
Maximum Current 200mA | ||
Air Flow 44m³/h | ||
Noise Level 31dB | ||
Fan Speed 5000rpm | ||
Terminal Type Screw | ||
Direction of Curve Forward | ||
Fan Frame Size 60 mm | ||
Bearing Type Ball | ||
Fan Frame Type Square | ||
Height 60mm | ||
Series San Ace 9S | ||
Standards/Approvals RoHS | ||
Depth 25mm | ||
Width 60mm | ||
- COO (Country of Origin):
- PH
Sanyo Denki Axial Fan, 31dB Noise Level, 5000rpm Speed - San Ace 9S Series - 9S0612S4011
To prevent your sensitive equipment from overheating, install this axial fan from Sanyo Denki in your enclosure. It has a low sound output of just 31dB, so it runs quietly to minimise distractions in your workplace. Thanks to its compact dimensions of 60 (height) x 60 (width) x 25mm (depth), this fan fits easily into tight spaces. It has a maximum airflow rate of 44.4m³/h and a fan speed of 5000rpm to ensure powerful cooling and ventilation.
Features & Benefits
• Colour-coded lead wires for ease of installation
• Wide operating temperature range between -10°C and +70°C for use in harsh conditions
• Long expected lifespan of 40,000 hours for long-lasting use
• Voltage rating of 12V DC for use in low-power applications
Applications
• Domestic appliances
• Desktop computers
• Control panels
• Server racks
How safe is this axial fan in the event of a fire?
For added workplace safety, this axial fan's plastic frame and impeller are self-extinguishing, so they won't promote the spread of flames in the event of a fire.
San Ace Silent DC Fans - S Series
Sanyo Denki San Ace silent DC fans are the lowest audible noise ball bearing DC fans available, with a reduction of up to -6dB when compared to standard fans. San Ace silent DC fans also feature excellent airflow and static pressure performance due to a new impeller and motor design.
50% reduction in vibration with precision dual ball bearing motor and fan blade balancing
Reduced switching noise at low speed compared to other DC fans
3rd wire pulse sensor for monitoring fan speed as standard
Airflow and noise level specification guaranteed over the life of the fan
Life at 40°C ambient 67,000 hours continuous operation (fan mounted in any position)
ECO product
Approvals
UL, CSA, TUV
