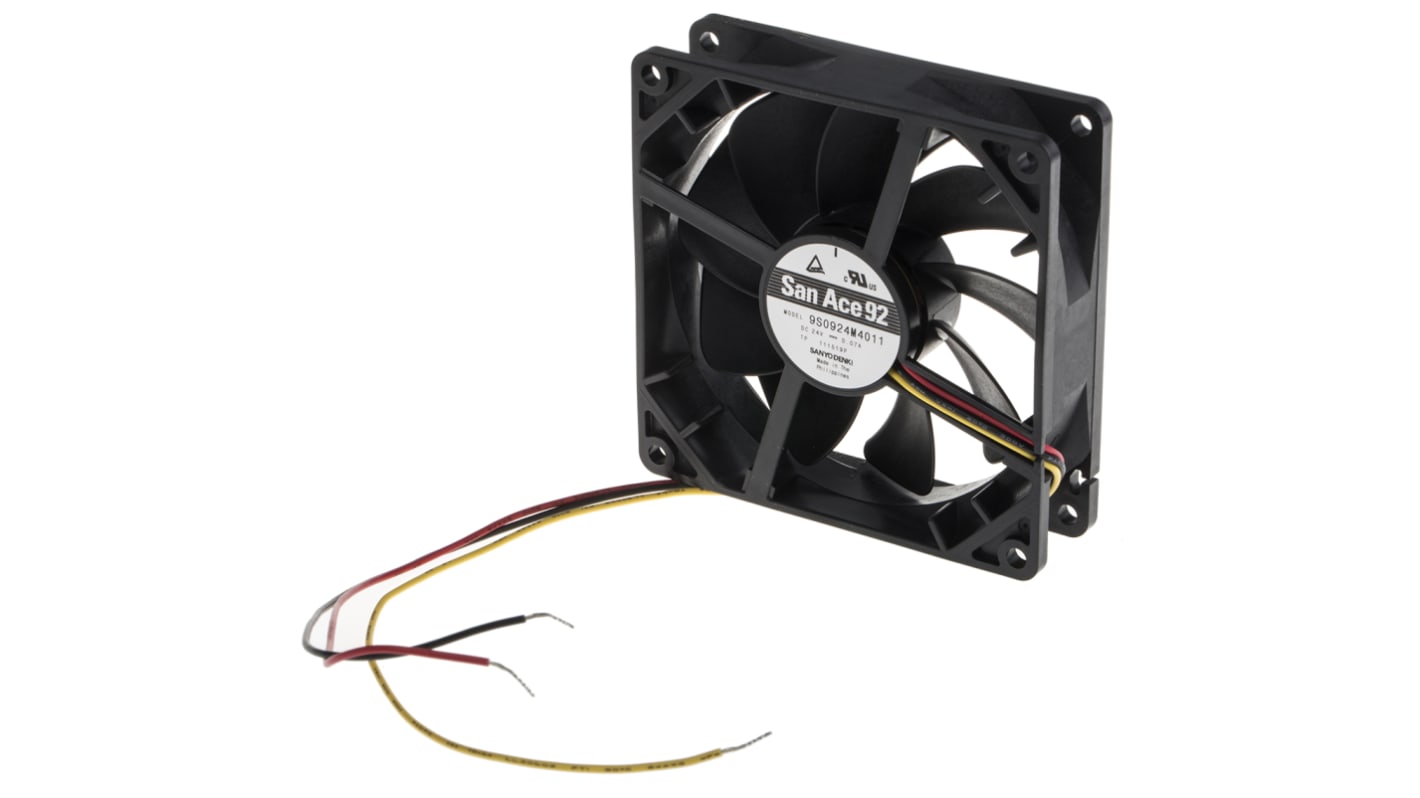

Sanyo Denki San Ace 9S Series Axial Fan, 24V dc, 64.2 m³/h, 1.68 W, 70 mA Max 92 mm 92mm 25 mm
- RS Stock No.:
- 751-1522
- Distrelec Article No.:
- 301-16-846
- Mfr. Part No.:
- 9S0924M4011
- Brand:
- Sanyo Denki
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£15.82
(exc. VAT)
£18.98
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 144 unit(s) ready to ship
- Plus 11 unit(s) ready to ship from another location
- Plus 28 unit(s) shipping from 28 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £15.82 |
| 5 - 9 | £14.87 |
| 10 - 24 | £13.91 |
| 25 - 49 | £13.27 |
| 50 + | £12.02 |
*price indicative
- RS Stock No.:
- 751-1522
- Distrelec Article No.:
- 301-16-846
- Mfr. Part No.:
- 9S0924M4011
- Brand:
- Sanyo Denki
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sanyo Denki | |
| Product Type | Axial Fan | |
| Supply Voltage | 24V dc | |
| Power Consumption | 1.68W | |
| Maximum Current | 70mA | |
| Air Flow | 64.2m³/h | |
| Noise Level | 22dB | |
| Fan Speed | 2250rpm | |
| Direction of Curve | Forward | |
| External Depth | 25mm | |
| Terminal Type | Wire | |
| Bearing Type | Ball | |
| Fan Frame Type | Square | |
| Fan Frame Size | 92 mm | |
| Height | 92mm | |
| Depth | 25mm | |
| Standards/Approvals | CSA, TUV, UL | |
| Series | San Ace 9S | |
| Width | 92mm | |
| Select all | ||
|---|---|---|
Brand Sanyo Denki | ||
Product Type Axial Fan | ||
Supply Voltage 24V dc | ||
Power Consumption 1.68W | ||
Maximum Current 70mA | ||
Air Flow 64.2m³/h | ||
Noise Level 22dB | ||
Fan Speed 2250rpm | ||
Direction of Curve Forward | ||
External Depth 25mm | ||
Terminal Type Wire | ||
Bearing Type Ball | ||
Fan Frame Type Square | ||
Fan Frame Size 92 mm | ||
Height 92mm | ||
Depth 25mm | ||
Standards/Approvals CSA, TUV, UL | ||
Series San Ace 9S | ||
Width 92mm | ||
- COO (Country of Origin):
- PH
San Ace Silent DC Fans - S Series
Sanyo Denki San Ace silent DC fans are the lowest audible noise ball bearing DC fans available, with a reduction of up to -6dB when compared to standard fans. San Ace silent DC fans also feature excellent airflow and static pressure performance due to a new impeller and motor design.
50% reduction in vibration with precision dual ball bearing motor and fan blade balancing
Reduced switching noise at low speed compared to other DC fans
3rd wire pulse sensor for monitoring fan speed as standard
Airflow and noise level specification guaranteed over the life of the fan
Life at 40°C ambient 67,000 hours continuous operation (fan mounted in any position)
ECO product
Approvals
UL, CSA, TUV
