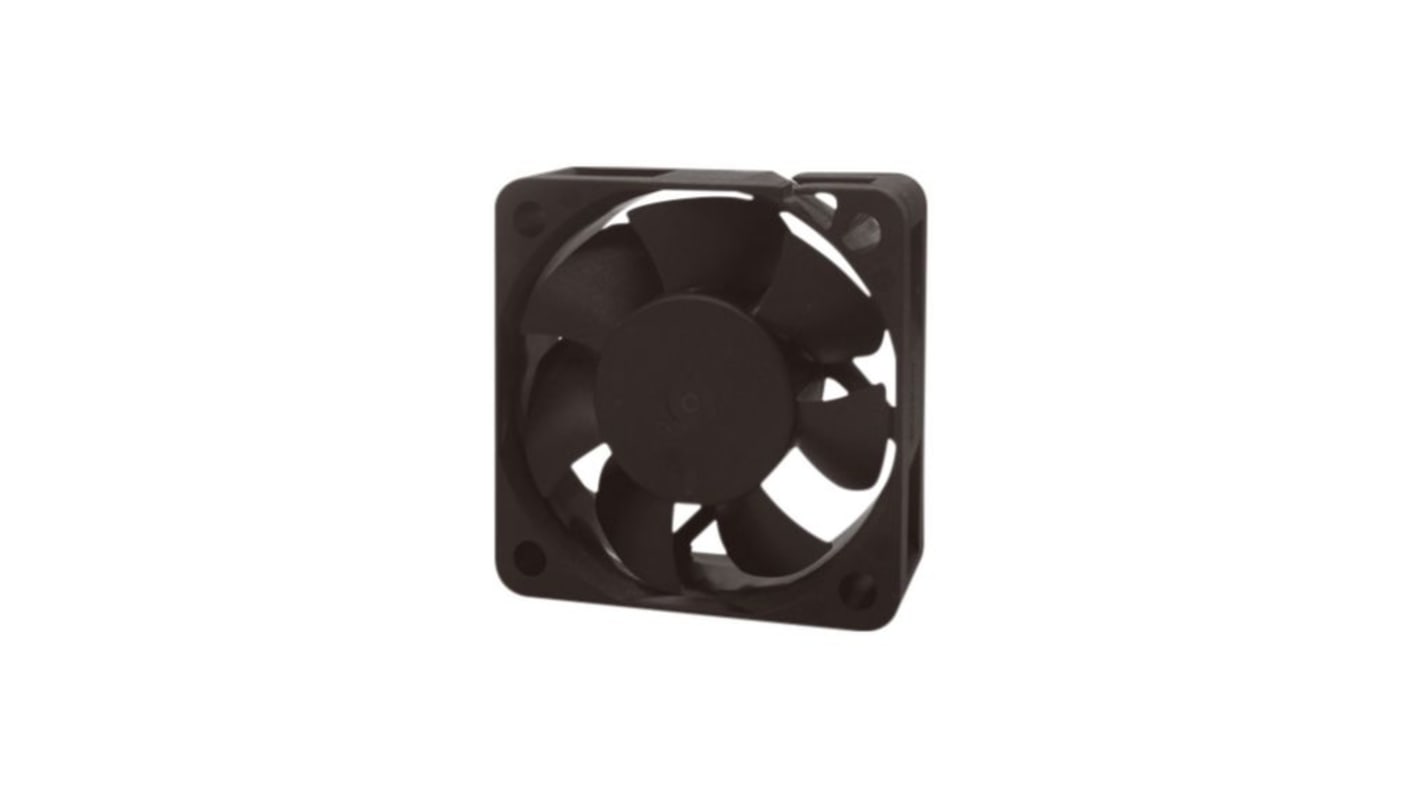

Sunon Axial Fan, 12 V dc, dc Operation, 18.6cfm, 1.2W, 100mA Max, 50 x 50 x 15mm
- RS Stock No.:
- 288-4905
- Distrelec Article No.:
- 301-48-165
- Mfr. Part No.:
- MF50151VX-1000U-A99
- Brand:
- Sunon
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 288-4905
- Distrelec Article No.:
- 301-48-165
- Mfr. Part No.:
- MF50151VX-1000U-A99
- Brand:
- Sunon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Sunon | |
Supply Voltage | 12 V dc | |
Height | 50mm | |
AC or DC Operation | dc | |
Width | 50mm | |
Power Consumption | 1.2W | |
Depth | 15mm | |
Maximum Current | 100mA | |
Air Flow | 18.6cfm | |
Dimensions | 50 x 50 x 15mm | |
Select all | ||
---|---|---|
Brand Sunon | ||
Supply Voltage 12 V dc | ||
Height 50mm | ||
AC or DC Operation dc | ||
Width 50mm | ||
Power Consumption 1.2W | ||
Depth 15mm | ||
Maximum Current 100mA | ||
Air Flow 18.6cfm | ||
Dimensions 50 x 50 x 15mm | ||
- COO (Country of Origin):
- CN
The MagLev Motor Fan is designed with precise Vapo bearing system and is made of high-quality thermoplastic material. With a diameter of 50mm and a thickness of 15mm, this fan is suitable for various applications that require efficient cooling. It operates at a rated voltage of 12VDC and has a maximum power consumption of 1.53 watts. The fan is designed to operate in a wide temperature range, from -10 to +70 degrees Celsius. It also features automatic restart and polarity protection for added safety.
Compact and lightweight design
Precise Vapo bearing system for enhanced durability
High-quality thermoplastic frame and fan blade material
Wide operating voltage range for flexibility
Automatic restart function in case of locked rotor condition
Polarity protection for added safety
Long life expectancy of 70,000 hours at 40 degrees Celsius
Low noise level of 38.1 dB(A) for quiet operation
Precise Vapo bearing system for enhanced durability
High-quality thermoplastic frame and fan blade material
Wide operating voltage range for flexibility
Automatic restart function in case of locked rotor condition
Polarity protection for added safety
Long life expectancy of 70,000 hours at 40 degrees Celsius
Low noise level of 38.1 dB(A) for quiet operation
