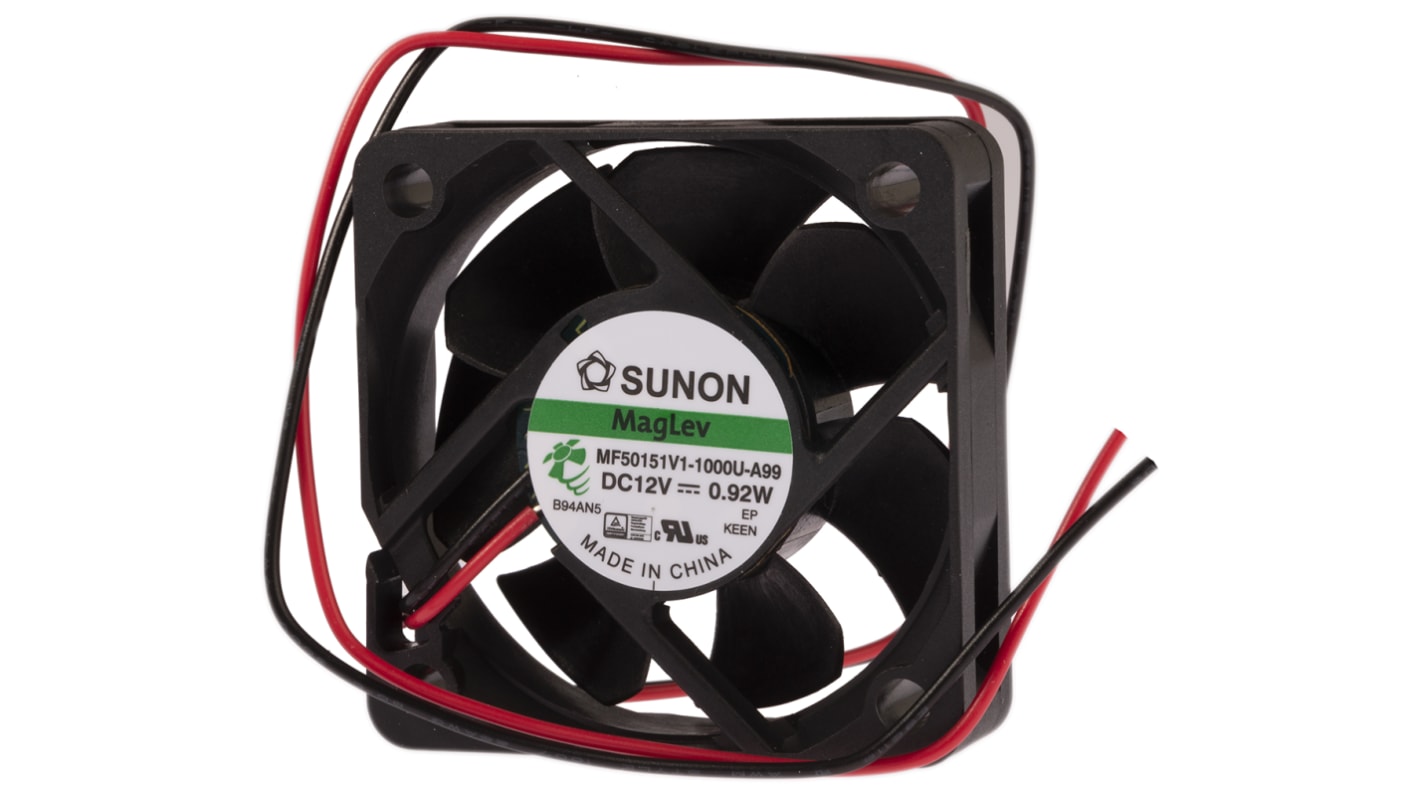

Sunon M Series Axial Fan, 12 V dc, DC Operation, 28.9m³/h, 870mW, 72mA Max, 50 x 50 x 15mm
- RS Stock No.:
- 135-6899
- Mfr. Part No.:
- MF50151V1-1000U-A99
- Brand:
- Sunon
Bulk discount available
Subtotal (1 unit)*
£4.09
(exc. VAT)
£4.91
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 36 unit(s) ready to ship
- Plus 404 unit(s) shipping from 09 December 2025
- Plus 300 unit(s) shipping from 06 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £4.09 |
5 - 9 | £3.76 |
10 - 24 | £3.59 |
25 - 49 | £3.35 |
50 + | £3.06 |
*price indicative
- RS Stock No.:
- 135-6899
- Mfr. Part No.:
- MF50151V1-1000U-A99
- Brand:
- Sunon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Sunon | |
Supply Voltage | 12 V dc | |
AC or DC Operation | DC | |
Height | 50mm | |
Power Consumption | 870mW | |
Width | 50mm | |
Depth | 15mm | |
Maximum Current | 72mA | |
Termination Type | Lead Wire | |
Air Flow | 28.9m³/h | |
Dimensions | 50 x 50 x 15mm | |
Noise Level | 33dB | |
Fan Speed | 6100rpm | |
Direction of Curve | Forward | |
Sensor Type | Voltage Output | |
Select all | ||
---|---|---|
Brand Sunon | ||
Supply Voltage 12 V dc | ||
AC or DC Operation DC | ||
Height 50mm | ||
Power Consumption 870mW | ||
Width 50mm | ||
Depth 15mm | ||
Maximum Current 72mA | ||
Termination Type Lead Wire | ||
Air Flow 28.9m³/h | ||
Dimensions 50 x 50 x 15mm | ||
Noise Level 33dB | ||
Fan Speed 6100rpm | ||
Direction of Curve Forward | ||
Sensor Type Voltage Output | ||
- COO (Country of Origin):
- CN
Sunon DR MagLev Series DC Fans
Sunon DR MagLev series DC fans utilise MagLev technology to produce a fan with superior performance, low noise and long life. MagLev achieves this through zero friction – no contact between shaft and bearing. With excellent rotational stability, the MagLev fan eliminates vibration and typical wobble and shaking typically experienced in fan motors. MagLev also provides excellent high temperature endurance that results in long life.
Additionally, MagLev fans also feature all-plastic manufacture of major items for optimal insulation resistance and electrostatic discharge (ESD) performance. The DR MagLev series also feature two innovations to further enhance performance and life span. Seal and Clip (S&C) and Blanked and Seamless (B&S) technologies both add additional benefits such as dust invasion resistance, prevention of oil leakage and increased resistance to movement due to temperature changes.
Additionally, MagLev fans also feature all-plastic manufacture of major items for optimal insulation resistance and electrostatic discharge (ESD) performance. The DR MagLev series also feature two innovations to further enhance performance and life span. Seal and Clip (S&C) and Blanked and Seamless (B&S) technologies both add additional benefits such as dust invasion resistance, prevention of oil leakage and increased resistance to movement due to temperature changes.
Features and Benefits:
• Extended motor life
• Prevention of oil leakage
• High quality construction
• Prevention of oil leakage
• High quality construction
Sunon DR MagLev Series DC Fans
The Sunon DR MagLev series fan is a square-shaped 12VDC fan. This fan is made by using MagLev technology which gives superior performance and long life. Its motor works without shaking which eliminates the typical wobble and vibration, thus providing rotational stability. The housing is made of plastic for optimal insulation resistance and electrostatic discharge performance. This fan has an electrical rating of 12VDC and 72mA. Its speed is 6100rpm.
Features and Benefits
• Auto restart capability
• Dust invasion resistance
• Excellent high temperature endurance
• High-quality construction
• Low noise level
• Prevention of oil leakage
• Dust invasion resistance
• Excellent high temperature endurance
• High-quality construction
• Low noise level
• Prevention of oil leakage
Applications
• Refrigerators
• Server and storage
• Solar inverters
• Server and storage
• Solar inverters
Certifications
• CE certified
• CUR certified
• TUV certified
• UL approved
• CUR certified
• TUV certified
• UL approved
