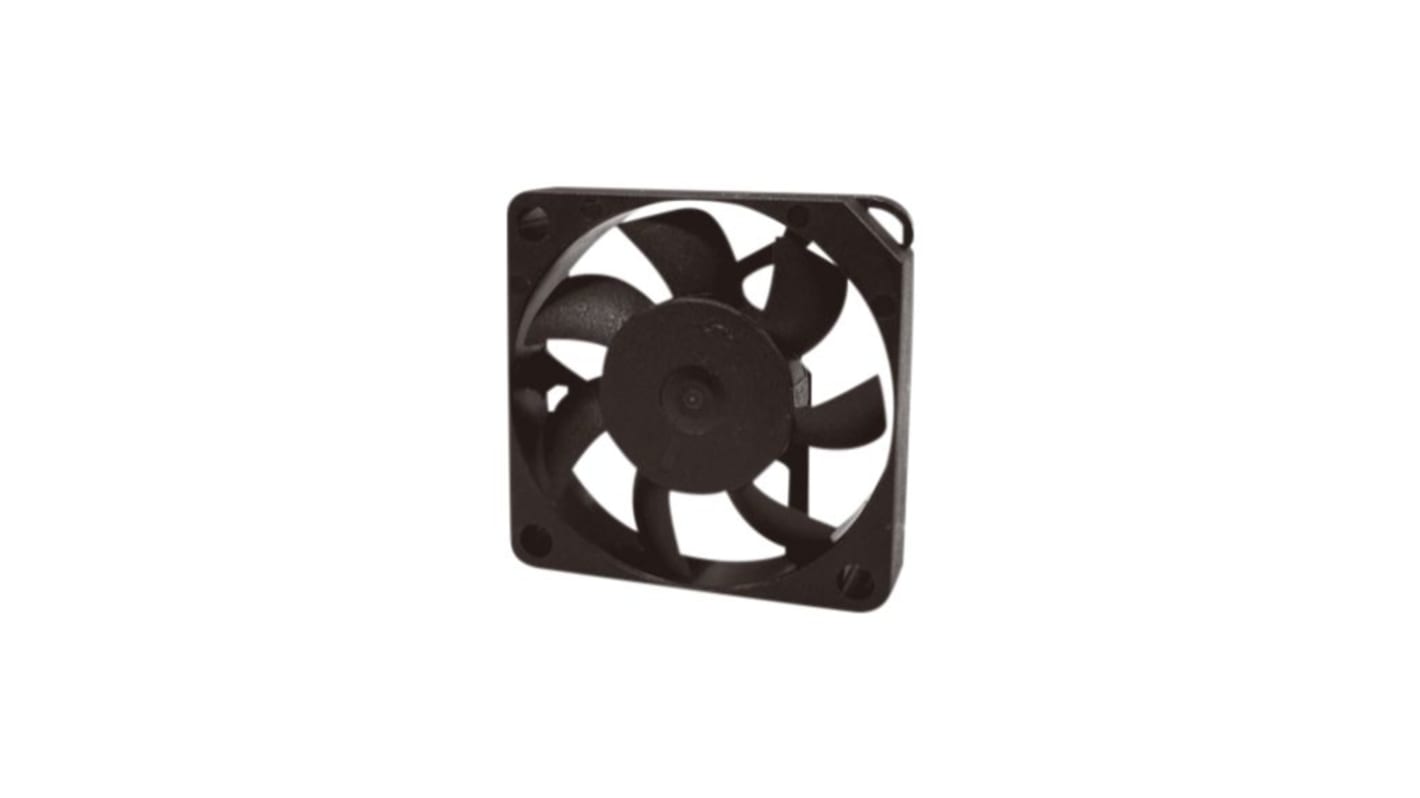

Sunon Axial Fan, 5 V dc, dc Operation, 7.3m³/h, 380mW, 76mA Max, 35 x 35 x 6mm
- RS Stock No.:
- 288-4898
- Distrelec Article No.:
- 301-48-140
- Mfr. Part No.:
- MF35060V2-1000U-A99
- Brand:
- Sunon
Subtotal (1 unit)*
£9.21
(exc. VAT)
£11.05
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 503 unit(s), ready to ship from another location
Units | Per unit |
---|---|
1 + | £9.21 |
*price indicative
- RS Stock No.:
- 288-4898
- Distrelec Article No.:
- 301-48-140
- Mfr. Part No.:
- MF35060V2-1000U-A99
- Brand:
- Sunon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Sunon | |
Supply Voltage | 5 V dc | |
Height | 35mm | |
AC or DC Operation | dc | |
Width | 35mm | |
Power Consumption | 380mW | |
Maximum Current | 76mA | |
Depth | 6mm | |
Air Flow | 7.3m³/h | |
Dimensions | 35 x 35 x 6mm | |
Select all | ||
---|---|---|
Brand Sunon | ||
Supply Voltage 5 V dc | ||
Height 35mm | ||
AC or DC Operation dc | ||
Width 35mm | ||
Power Consumption 380mW | ||
Maximum Current 76mA | ||
Depth 6mm | ||
Air Flow 7.3m³/h | ||
Dimensions 35 x 35 x 6mm | ||
- COO (Country of Origin):
- CN
The fan is a single phase, 4-poles brushless DC motor fan with a Vapo bearing system. It has dimensions of 35X35X6 mm and is designed for MagLev Motor Fan applications. The fan operates at a rated voltage of 5 VDC and has a rated current of 66 mA. With a rated power consumption of 0.33 WATTS and a safety power consumption of 0.35 WATTS, this fan offers efficient and reliable performance. It has a rated speed of 5800 RPM ± 15% and provides an air flow of 4.3 CFM with a static pressure of 0.07 Inch-H O. With a noise level of 18.3 dB(A), this fan operates quietly. It has an insulation class of UL Class A and a life expectancy of 60,000 hours at 40 deg. C, 65% humidity, and 90% CL.
Single phase, 4-poles brushless DC motor fan
Vapo bearing system for smooth and reliable operation
Compact dimensions of 35X35X6 mm
Designed for MagLev Motor Fan applications
Efficient performance with a rated voltage of 5 VDC and rated current of 66 mA
Low power consumption with a rated power of 0.33 WATTS and safety power of 0.35 WATTS
High speed operation at 5800 RPM ± 15%
Provides an air flow of 4.3 CFM with a static pressure of 0.07 Inch-H O
Quiet operation with a noise level of 18.3 dB(A)
UL Class A insulation for safety
Long life expectancy of 60,000 hours
Vapo bearing system for smooth and reliable operation
Compact dimensions of 35X35X6 mm
Designed for MagLev Motor Fan applications
Efficient performance with a rated voltage of 5 VDC and rated current of 66 mA
Low power consumption with a rated power of 0.33 WATTS and safety power of 0.35 WATTS
High speed operation at 5800 RPM ± 15%
Provides an air flow of 4.3 CFM with a static pressure of 0.07 Inch-H O
Quiet operation with a noise level of 18.3 dB(A)
UL Class A insulation for safety
Long life expectancy of 60,000 hours
