ebm-papst 4000 Series Axial Fan, 48V dc, 240 m³/h, 14.1 W, 235 mA Max 119 mm 119mm 38 mm
- RS Stock No.:
- 285-7770
- Distrelec Article No.:
- 301-82-761
- Mfr. Part No.:
- 4418/2H
- Brand:
- ebm-papst
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 285-7770
- Distrelec Article No.:
- 301-82-761
- Mfr. Part No.:
- 4418/2H
- Brand:
- ebm-papst
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ebm-papst | |
| Product Type | Axial Fan | |
| Supply Voltage | 48V dc | |
| Power Consumption | 14.1W | |
| Maximum Current | 235mA | |
| Air Flow | 240m³/h | |
| Noise Level | 50dBA | |
| Fan Speed | 4300rpm | |
| Terminal Type | 3-Pin | |
| Bearing Type | Ball | |
| Fan Frame Size | 119 x 119 x 38 mm | |
| Standards/Approvals | REACH, RoHS Conforms | |
| Width | 119mm | |
| Series | 4000 | |
| Height | 119mm | |
| Depth | 38mm | |
| Select all | ||
|---|---|---|
Brand ebm-papst | ||
Product Type Axial Fan | ||
Supply Voltage 48V dc | ||
Power Consumption 14.1W | ||
Maximum Current 235mA | ||
Air Flow 240m³/h | ||
Noise Level 50dBA | ||
Fan Speed 4300rpm | ||
Terminal Type 3-Pin | ||
Bearing Type Ball | ||
Fan Frame Size 119 x 119 x 38 mm | ||
Standards/Approvals REACH, RoHS Conforms | ||
Width 119mm | ||
Series 4000 | ||
Height 119mm | ||
Depth 38mm | ||
- COO (Country of Origin):
- HU

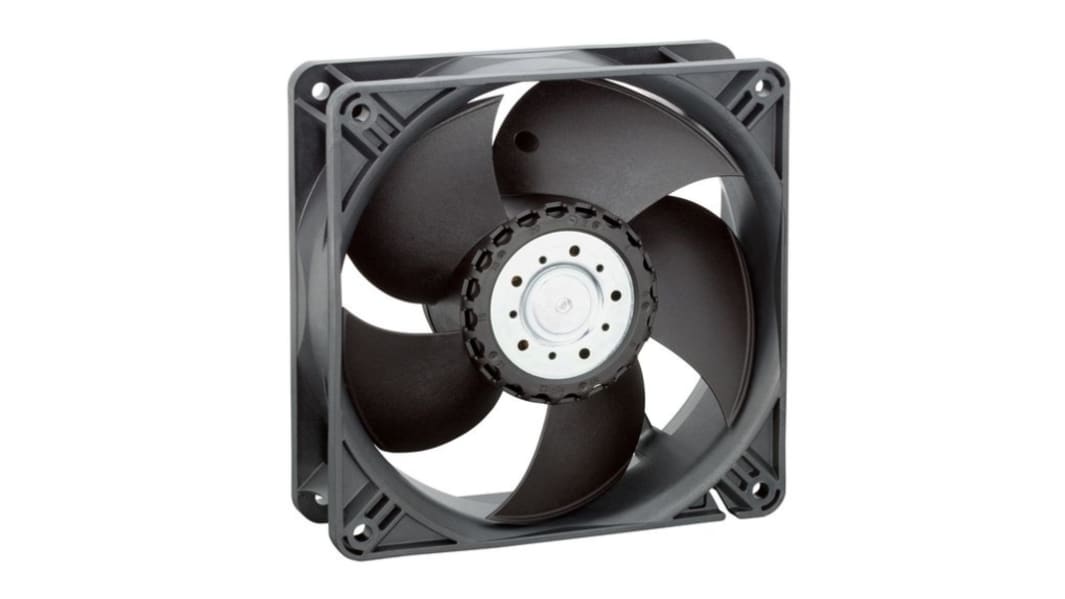

The Fan is designed to provide efficient airflow in a compact and lightweight design. With features like ball bearings, plastic housing, and a range of operating data options, this fan is suitable for various applications requiring reliable cooling solutions.
Fan type with Clockwise rotating direction and air outlet over struts
Ball bearing system for smooth operation
Compact dimensions of 119.0mm width, 119.0mm height, and 38.0mm depth
Lightweight design with a mass of 0.270kg for easy installation
Requires minimal torque for mounting with screw size ISO 4762 - M4
Electrical connection with wires and lead wire length of 310mm
Operating data includes voltage range, power consumption, current consumption, and speed
Aerodynamic features like free-air flow and static pressure for optimal performance
Sound data measurements for noise level analysis
Safety features include dielectric strength, isolation resistance, and approval tests for compliance
