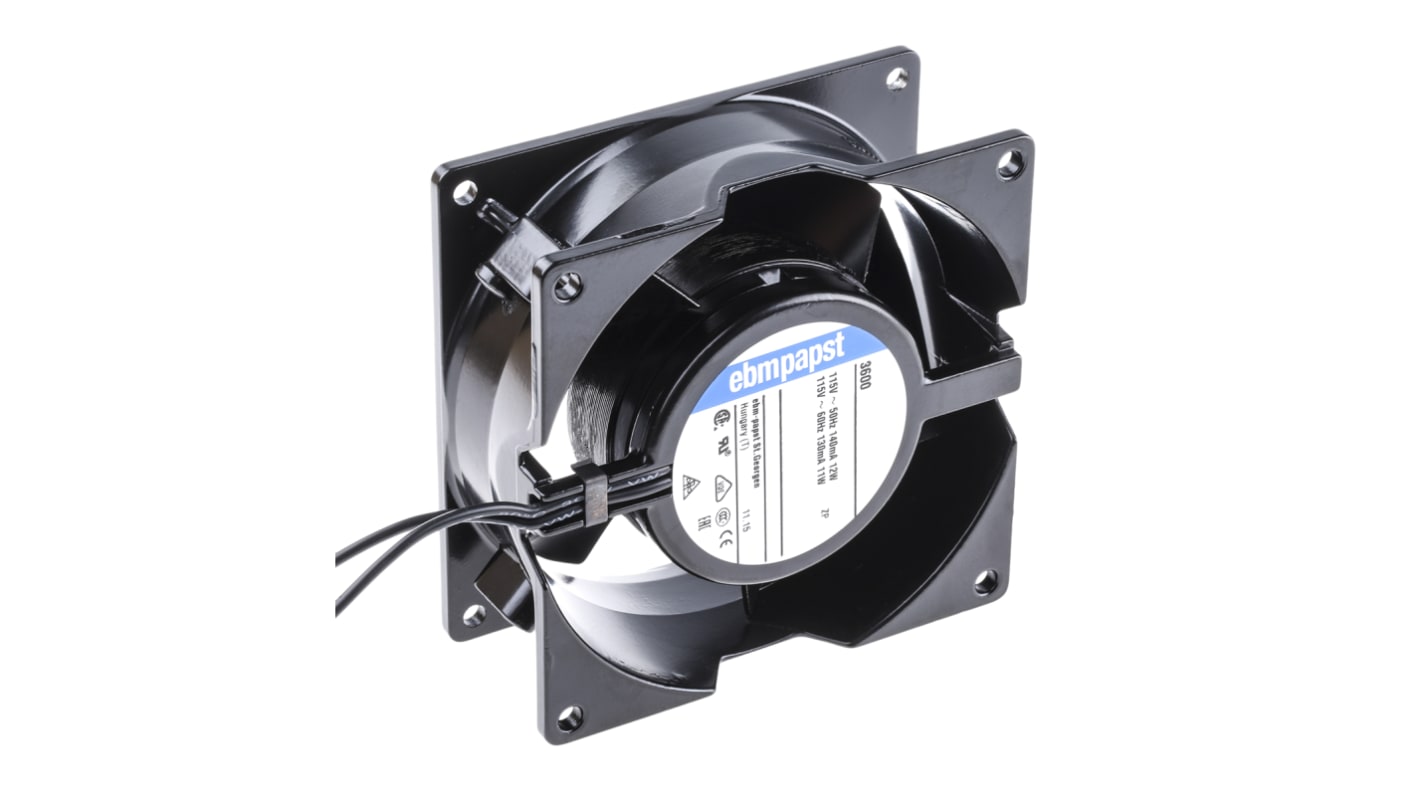

ebm-papst 3000 Series Axial Fan, 115 V ac, AC Operation, 89m³/h, 11W, 95mA Max, 92 x 92 x 38mm

View all Axial Fans
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
ebm-papst 3000 Series Axial Fan, 115 V ac, AC Operation, 89m³/h, 11W, 92 x 92 x 38mm
RS Stock No.
825-6201

Each

£54.93

(exc. VAT)

£65.92

(inc. VAT)

RS Stock No.:
211-9960
Mfr. Part No.:
3600-718
Brand:
ebm-papst
Find similar products by selecting one or more attributes.
Select all

Brand

ebm-papst

Supply Voltage

115 V ac

AC or DC Operation

AC

Height

92.5mm

Width

92.5mm

Power Consumption

11W

Maximum Current

95mA

Depth

38mm

Dimensions

92 x 92 x 38mm

Air Flow

89m³/h

Noise Level

41dB

Fan Speed

3100rpm

Bearing Type

Sleeve

COO (Country of Origin):
HU

ebm-papst AC Ball and Sleeve Bearing Axial Fans


ebm-papst AC ball and sleeve bearing axial fans are an ideal solution to a wide range of cooling requirements. Featuring small installation depths, low noise levels and exceptional efficiencies, ebm-papst AC axial fans are particularly suited to moving air through heat exchangers.

Self-starting, industrial frame size fans with over temperature/current protection
Reverse mountable for blowing or extraction

Note

Plug and lead guards, filter/filter elements are available separately. Stock Nos 211-9342, 211-9336, 263-7705, 263-7711, 101-8024, 211-9960, 211-9308 all have flying leads

Approvals

UL; CSA; VDE
