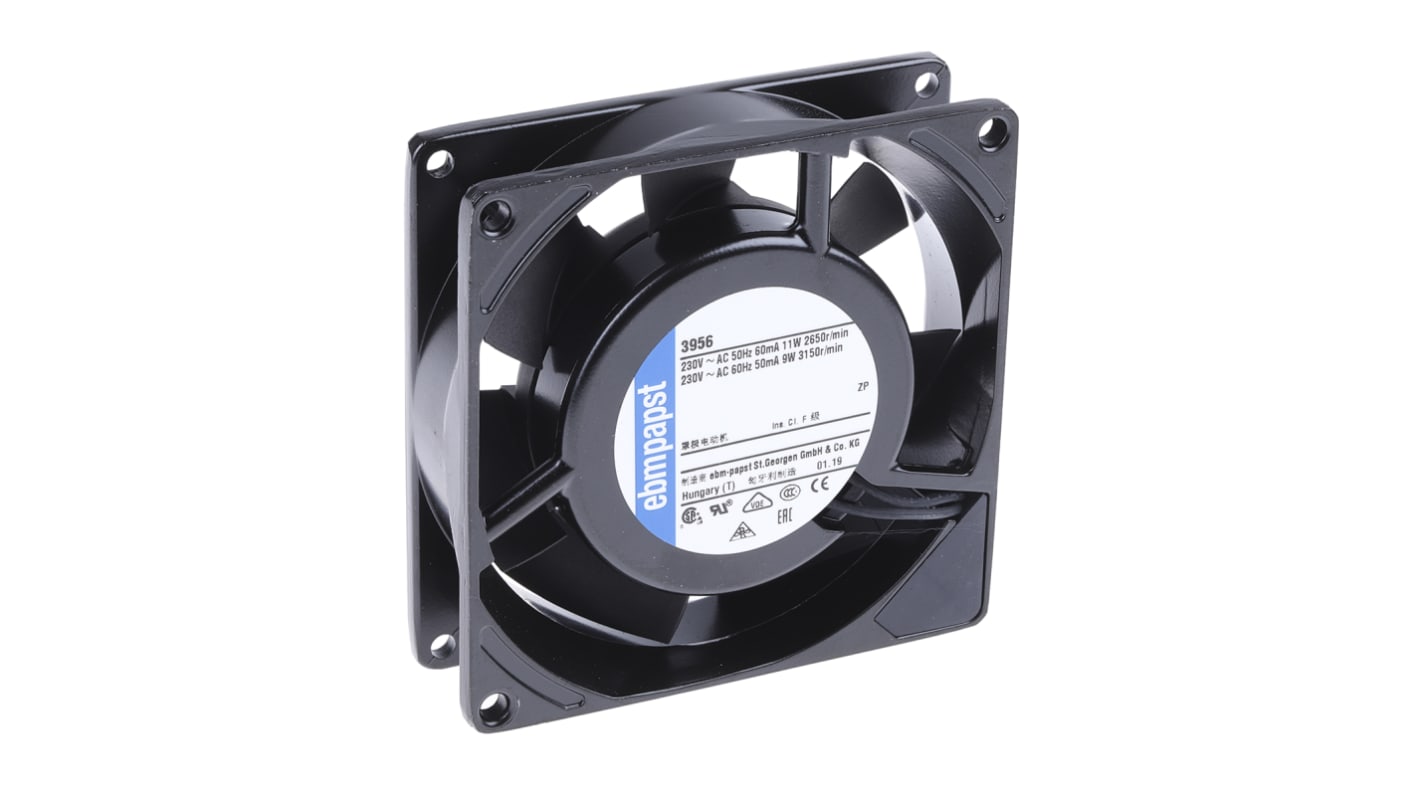

ebm-papst 3900 Series Axial Fan, 230 V ac, AC Operation, 59m³/h, 11W, 92 x 92 x 25mm
- RS Stock No.:
- 482-332
- Mfr. Part No.:
- 3956
- Brand:
- ebm-papst
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£68.75
(exc. VAT)
£82.50
(inc. VAT)
- RS Stock No.:
- 482-332
- Mfr. Part No.:
- 3956
- Brand:
- ebm-papst
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ebm-papst | |
Supply Voltage | 230 V ac | |
Height | 92mm | |
AC or DC Operation | AC | |
Width | 92mm | |
Power Consumption | 11W | |
Depth | 25.4mm | |
Air Flow | 59m³/h | |
Dimensions | 92 x 92 x 25mm | |
Noise Level | 35dB | |
Fan Speed | 2650rpm | |
Bearing Type | Ball | |
Select all | ||
---|---|---|
Brand ebm-papst | ||
Supply Voltage 230 V ac | ||
Height 92mm | ||
AC or DC Operation AC | ||
Width 92mm | ||
Power Consumption 11W | ||
Depth 25.4mm | ||
Air Flow 59m³/h | ||
Dimensions 92 x 92 x 25mm | ||
Noise Level 35dB | ||
Fan Speed 2650rpm | ||
Bearing Type Ball | ||
RoHS Status: Exempt
- COO (Country of Origin):
- HU
ebm-papst AC Sleeve Bearing Axial Fans
From ebm-papst, this wide range of AC sleeve bearing axial fans enforces excellent cooling purposes. With their robust design and protection against motor overloading, the benefits of each axial fan will propel them ahead of their competition for proficient cooling purposes. All models are highly reliable and excellent quality.
Features and Benefits
• Motor overload protection
• Both 230 V ac and 115 V ac versions available
• Compact and robust fan design
• Fan operates at various speeds at both 50 Hz and 60 Hz
• High quality fibre glass impeller blades for consistent airflow
• Both 230 V ac and 115 V ac versions available
• Compact and robust fan design
• Fan operates at various speeds at both 50 Hz and 60 Hz
• High quality fibre glass impeller blades for consistent airflow
What is an Axial Fan?
An axial fan is a type of fan commonly used within everyday applications, such as air conditioners and computers. It causes both air and gas (depending on the application) to flow directly through it in an axial direction at different speeds. Allowing the air flow to be axial and both entry and exit. The most common versions tend to have fewer impeller blades than conventional duct fans or centrifugal fans which have similar operations.
What kind of safety features are available with this fan?
A great safety aspect would be included with the motor. It provides overload protection, removing the risk of electrical surges or damage from excess energy pressure to the axial fan motor itself. This provides peace of mind that once the axial fan is mounted and operational, its ventilation or cooling process will continue to run with virtually no risk.
Does this fan use sleeve bearings or ball bearings?
This range of axial fans uses sleeve bearings. Although both are suitable for virtually the same applications. Sleeve bearings have the advantage of both their low cost and low energy ratings. Ensuring a cost effective way of both cooling and ventilating applications.
