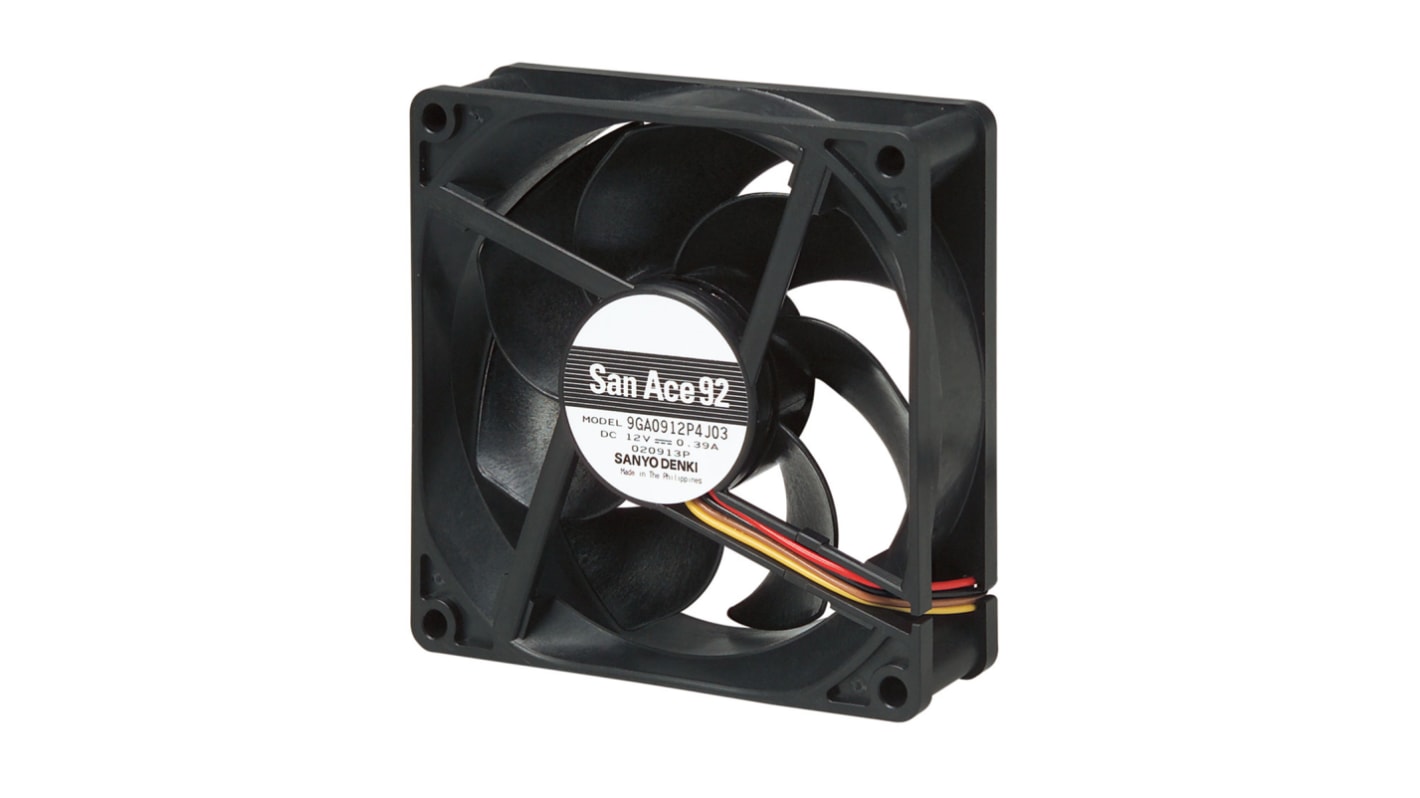

Sanyo Denki 9GA Series Axial Fan, 12V dc, 100.2 m³/h, 2.4 W, 200 mA Max 92 mm 92mm 25.2 mm
- RS Stock No.:
- 191-9389
- Distrelec Article No.:
- 301-54-469
- Mfr. Part No.:
- 9GA0912P4S03
- Brand:
- Sanyo Denki
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£27.71
(exc. VAT)
£33.25
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 35 unit(s) shipping from 07 September 2026
- Plus 6 unit(s) shipping from 07 September 2026
- Plus 14 unit(s) shipping from 17 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £27.71 |
| 5 - 9 | £26.06 |
| 10 - 24 | £24.38 |
| 25 - 49 | £23.28 |
| 50 + | £21.07 |
*price indicative
- RS Stock No.:
- 191-9389
- Distrelec Article No.:
- 301-54-469
- Mfr. Part No.:
- 9GA0912P4S03
- Brand:
- Sanyo Denki
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sanyo Denki | |
| Product Type | Axial Fan | |
| Supply Voltage | 12V dc | |
| Power Consumption | 2.4W | |
| Maximum Current | 200mA | |
| Air Flow | 100.2m³/h | |
| Noise Level | 35dBA | |
| Fan Speed | 3800rpm | |
| External Depth | 25mm | |
| Terminal Type | Wire | |
| Direction of Curve | Forward | |
| Bearing Type | Ball | |
| Fan Frame Type | Square | |
| Fan Frame Size | 92 mm | |
| Series | 9GA | |
| Height | 92mm | |
| Standards/Approvals | UL | |
| Width | 92mm | |
| Depth | 25.2mm | |
| Select all | ||
|---|---|---|
Brand Sanyo Denki | ||
Product Type Axial Fan | ||
Supply Voltage 12V dc | ||
Power Consumption 2.4W | ||
Maximum Current 200mA | ||
Air Flow 100.2m³/h | ||
Noise Level 35dBA | ||
Fan Speed 3800rpm | ||
External Depth 25mm | ||
Terminal Type Wire | ||
Direction of Curve Forward | ||
Bearing Type Ball | ||
Fan Frame Type Square | ||
Fan Frame Size 92 mm | ||
Series 9GA | ||
Height 92mm | ||
Standards/Approvals UL | ||
Width 92mm | ||
Depth 25.2mm | ||
- COO (Country of Origin):
- PH
Our DC cooling fans have features such as high airflow, high reliability, and low noise. They can be used in a wide-ranging applications including servers and ICT equipment.
