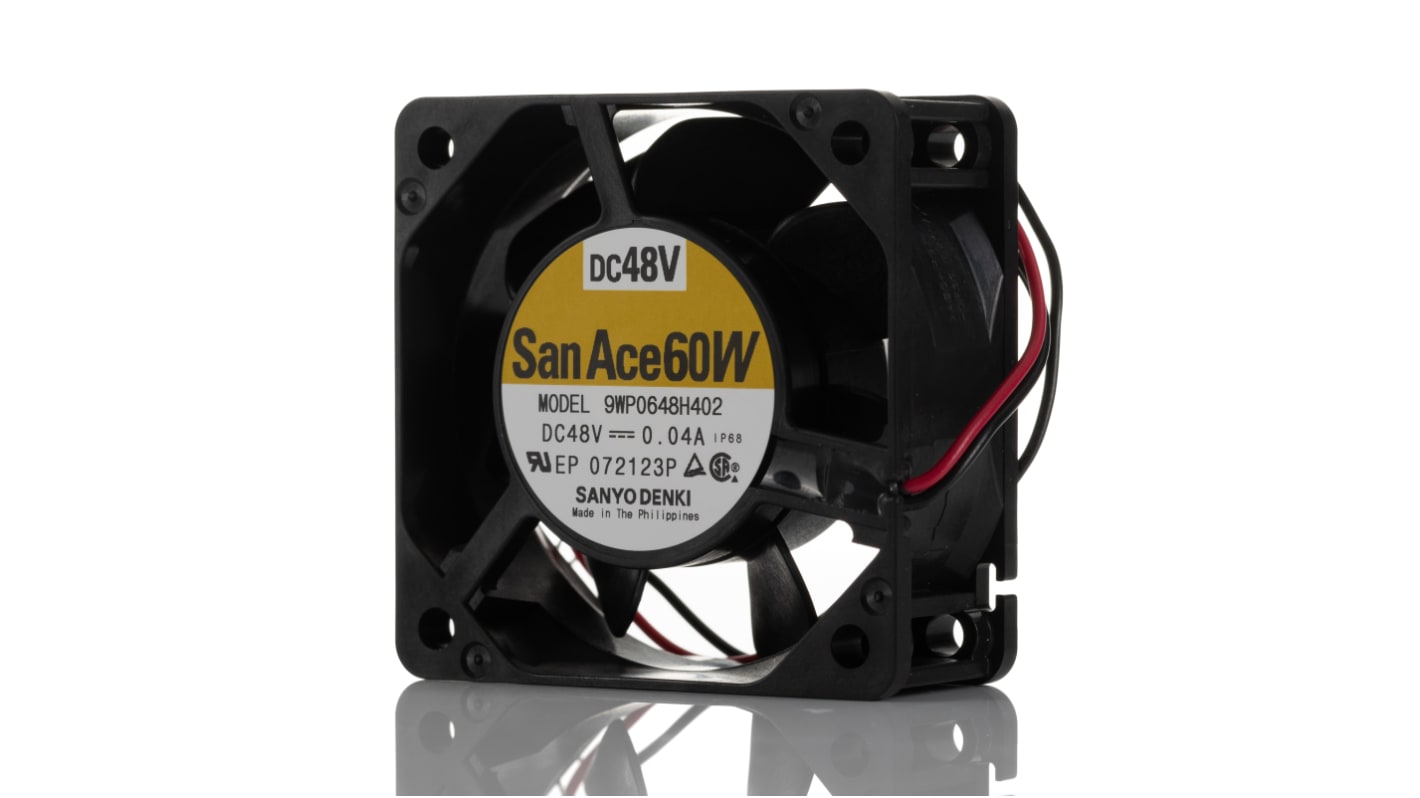

Sanyo Denki 9WP Series Axial Fan, 48 V dc, DC Operation, 18.7cfm, 1.92W, 40mA Max, IP68, 60 x 60 x 25mm
- RS Stock No.:
- 181-0552
- Distrelec Article No.:
- 301-23-476
- Mfr. Part No.:
- 9WP0648H402
- Brand:
- Sanyo Denki
Bulk discount available
Subtotal (1 unit)*
£40.11
(exc. VAT)
£48.13
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 11 unit(s) ready to ship
- Plus 6 unit(s) ready to ship from another location
- Plus 52 unit(s) shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £40.11 |
| 5 - 9 | £37.71 |
| 10 - 24 | £35.31 |
| 25 - 49 | £33.70 |
| 50 + | £30.58 |
*price indicative
- RS Stock No.:
- 181-0552
- Distrelec Article No.:
- 301-23-476
- Mfr. Part No.:
- 9WP0648H402
- Brand:
- Sanyo Denki
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sanyo Denki | |
| Supply Voltage | 48 V dc | |
| AC or DC Operation | DC | |
| Height | 25mm | |
| Power Consumption | 1.92W | |
| Width | 60mm | |
| Maximum Current | 40mA | |
| Depth | 60mm | |
| Dimensions | 60 x 60 x 25mm | |
| Air Flow | 18.7cfm | |
| Termination Type | Lead Wire | |
| Noise Level | 28dB(A) | |
| Bearing Type | Ball | |
| IP Rating | IP68 | |
Select all | ||
|---|---|---|
Brand Sanyo Denki | ||
Supply Voltage 48 V dc | ||
AC or DC Operation DC | ||
Height 25mm | ||
Power Consumption 1.92W | ||
Width 60mm | ||
Maximum Current 40mA | ||
Depth 60mm | ||
Dimensions 60 x 60 x 25mm | ||
Air Flow 18.7cfm | ||
Termination Type Lead Wire | ||
Noise Level 28dB(A) | ||
Bearing Type Ball | ||
IP Rating IP68 | ||
- COO (Country of Origin):
- PH
Sanyo Denki Axial Fan, Ball Bearing Type, 28dB Noise Level - San Ace 9WP Series - 9WP0648H402
When your industrial equipment is facing the heat, blow off some steam with this axial fan from Sanyo Denki. A refreshing air flow rate of 31.8m³/h disperses hot air build-up before it leads to problems for your electronics. Maintaining a moderate operating temperature helps extend your machinery's service life, so adding this nifty piece of kit to your system is a great way to keep things running at peak efficiency for longer. Thanks to a low power consumption of just 1.92W, it's an energy-efficient choice.
Features & Benefits
• IP68 rating means it's dust-tight and can withstand submersion in 1.5m of water for up to 30 minutes
• Ball bearing mechanism reduces friction to minimise wear
• Super-soft noise level of 28dB makes it easy on the ears
• Self-extinguishing in under 10 seconds for safety in the event of a fire
• Wide operating temperature range between -20°C and +70°C for use in extreme conditions
• Ball bearing mechanism reduces friction to minimise wear
• Super-soft noise level of 28dB makes it easy on the ears
• Self-extinguishing in under 10 seconds for safety in the event of a fire
• Wide operating temperature range between -20°C and +70°C for use in extreme conditions
Applications
• Commercial lighting systems
• Robotics and automation
• Server rooms
• Robotics and automation
• Server rooms
Is this fan suitable for use in confined spaces?
Yes, its compact dimensions of just 60 (L) x 60 (W) x 25mm (D) mean this nimble gadget easily fits into the tightest of spots.
