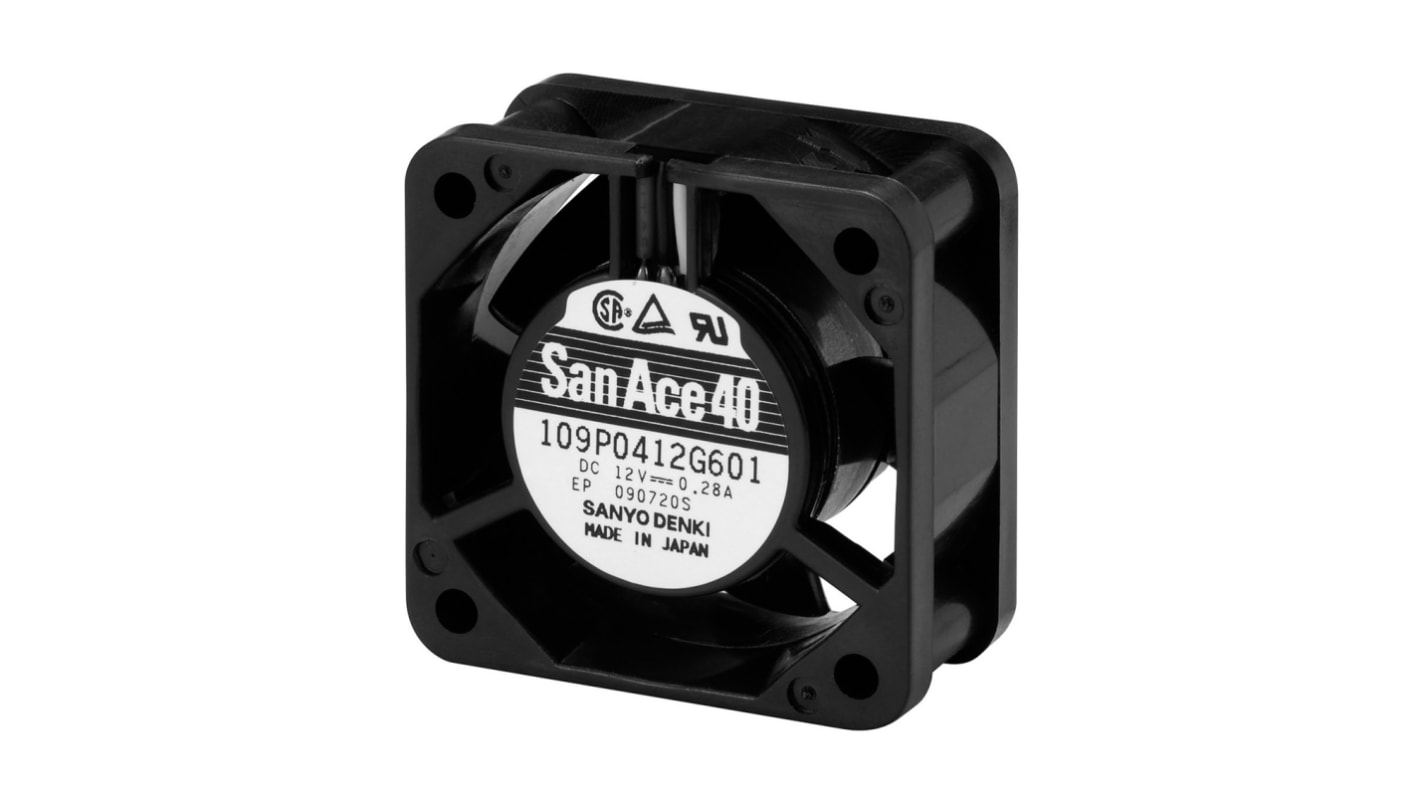

Sanyo Denki 109P Series Axial Fan, 12V dc, 35.3 m³/h, 6.6 W, 550 mA Max 28 mm 40mm 40 mm
- RS Stock No.:
- 181-0490
- Distrelec Article No.:
- 301-54-337
- Mfr. Part No.:
- 109P0412K3023
- Brand:
- Sanyo Denki
Get a bulk buy discount
Add 5 more to save £4.80
View bulk pricing optionsSubtotal (1 unit)*
£16.08
(exc. VAT)
£19.30
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 79 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Saving |
|---|---|---|
| 1 - 4 | £16.08 | - |
| 5 - 9 | £15.12 | £4.80 |
| 10 - 24 | £14.16 | £19.20 |
| 25 - 49 | £13.50 | £64.50 |
| 50 + | £12.21 | £193.50 |
*price indicative
- RS Stock No.:
- 181-0490
- Distrelec Article No.:
- 301-54-337
- Mfr. Part No.:
- 109P0412K3023
- Brand:
- Sanyo Denki
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sanyo Denki | |
| Product Type | Axial Fan | |
| Supply Voltage | 12V dc | |
| Power Consumption | 6.6W | |
| Maximum Current | 550mA | |
| Air Flow | 35.3m³/h | |
| Noise Level | 50dBA | |
| Fan Speed | 6300rpm | |
| Terminal Type | Screw | |
| Direction of Curve | Backward | |
| Fan Frame Type | Square | |
| Bearing Type | Ball | |
| Fan Frame Size | 40 mm | |
| Series | 109P | |
| Width | 40mm | |
| Height | 28mm | |
| Depth | 40mm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Sanyo Denki | ||
Product Type Axial Fan | ||
Supply Voltage 12V dc | ||
Power Consumption 6.6W | ||
Maximum Current 550mA | ||
Air Flow 35.3m³/h | ||
Noise Level 50dBA | ||
Fan Speed 6300rpm | ||
Terminal Type Screw | ||
Direction of Curve Backward | ||
Fan Frame Type Square | ||
Bearing Type Ball | ||
Fan Frame Size 40 mm | ||
Series 109P | ||
Width 40mm | ||
Height 28mm | ||
Depth 40mm | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- PH
Sanyo Denki Axial Fan, Plastic Housing Material, 50dB Noise Level - San Ace 109P Series - 109P0412K3023
Keep your rack-mounted equipment cool in the heat of the moment with this axial fan from Sanyo Denki. It's designed to create airflow in your server rack through the rotation of impellers by its motors. Thanks to its durable plastic housing, this unit withstands wear and impact, so it's a reliable choice in harsh industrial environments. The fan's blades run at a high speed of 15,500rpm, giving you powerful air circulation without breaking a sweat.
• Broad operating temperature range between -20°C and +50°C for use in demanding conditions
• Long expected lifespan of 40,000 hours at +60°C for long-term performance
• Low power consumption of 6.6W for energy efficiency
• Low noise level of 50dB for quiet operation
• Reverse polarity protection to prevent incorrect wiring
Applications
• Broadcast studios
• Telecommunications industry
• Commercial security systems
Recently, in electronic devices such as telecommunications related equipment, the heating value increases remarkably along with improved performance and miniaturization of built-in parts. As the result, miniaturization of devices is also rapidly advancing and an electronic device becomes highly heated as density is increased.
Is this fan flame-resistant?
Large air volume, high static pressure
Low noise
Low power consumption
Best for 1U rack (height 44-45)
Yes, this fan's housing stops burning in 10 seconds or less in the event of a fire, so it helps to keep personnel and equipment safe and sound in volatile work areas.
