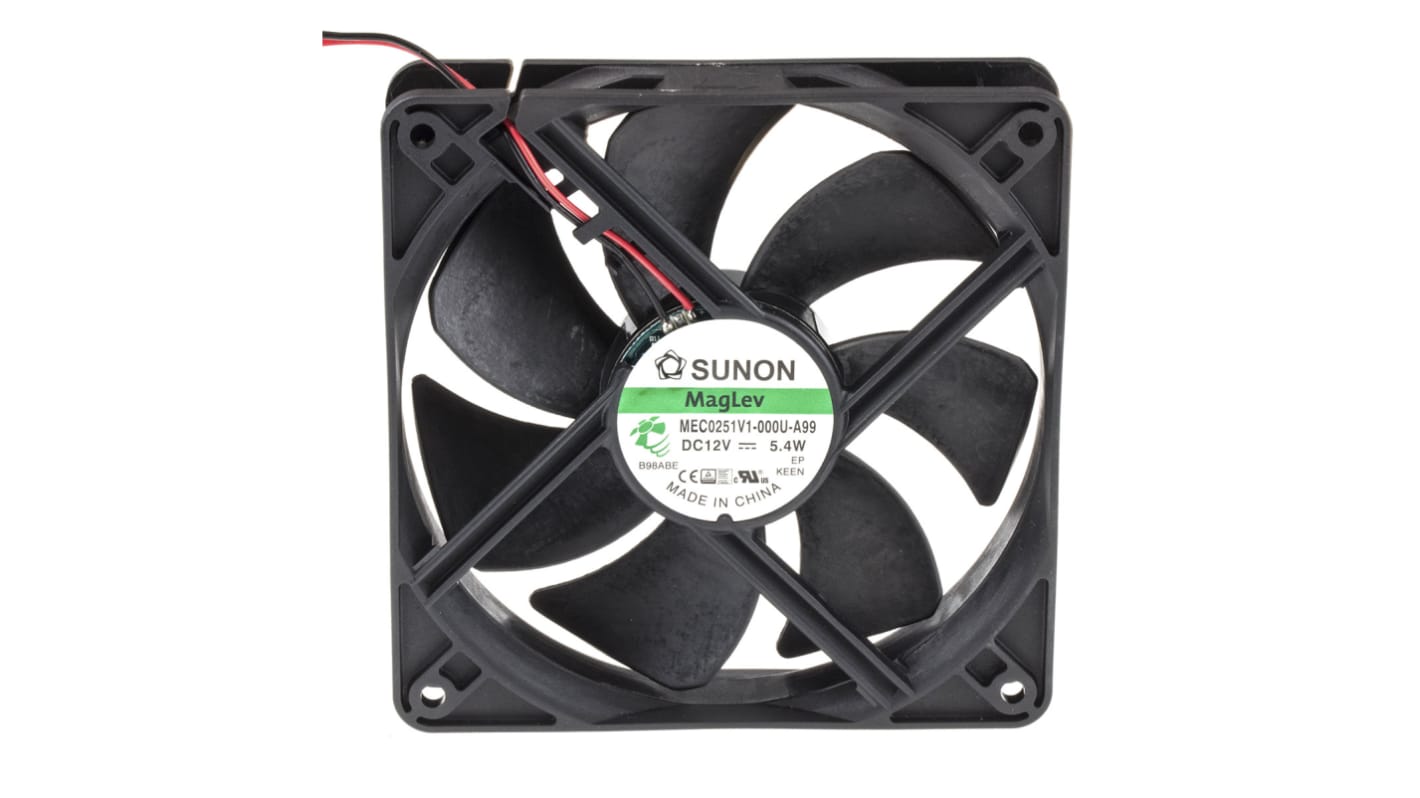

Sunon ME Series Axial Fan, 12 V dc, DC Operation, 183.8m³/h, 5.5W, 451mA Max, 120 x 120 x 25mm
- RS Stock No.:
- 111-8305
- Distrelec Article No.:
- 303-97-166
- Mfr. Part No.:
- MEC0251V1-000U-A99
- Brand:
- Sunon
Subtotal (1 unit)*
£12.58
(exc. VAT)
£15.10
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 526 unit(s) ready to ship
- Plus 44 unit(s) ready to ship from another location
- Plus 304 unit(s) shipping from 20 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £12.58 |
*price indicative
- RS Stock No.:
- 111-8305
- Distrelec Article No.:
- 303-97-166
- Mfr. Part No.:
- MEC0251V1-000U-A99
- Brand:
- Sunon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sunon | |
| Supply Voltage | 12 V dc | |
| AC or DC Operation | DC | |
| Height | 120mm | |
| Width | 120mm | |
| Power Consumption | 5.5W | |
| Maximum Current | 451mA | |
| Depth | 25mm | |
| Termination Type | Lead Wire | |
| Dimensions | 120 x 120 x 25mm | |
| Air Flow | 183.8m³/h | |
| Noise Level | 34dB | |
| Fan Speed | 3100rpm | |
| Direction of Curve | Forward | |
| Bearing Type | Vapo | |
| Select all | ||
|---|---|---|
Brand Sunon | ||
Supply Voltage 12 V dc | ||
AC or DC Operation DC | ||
Height 120mm | ||
Width 120mm | ||
Power Consumption 5.5W | ||
Maximum Current 451mA | ||
Depth 25mm | ||
Termination Type Lead Wire | ||
Dimensions 120 x 120 x 25mm | ||
Air Flow 183.8m³/h | ||
Noise Level 34dB | ||
Fan Speed 3100rpm | ||
Direction of Curve Forward | ||
Bearing Type Vapo | ||
- COO (Country of Origin):
- CN
Sunon DR MagLev Power Series DC Fans
Sunon DR MagLev Power series DC fans utilise MagLev technology to produce a fan with superior performance, low noise and long life. MagLev achieves this through zero friction – no contact between shaft and bearing. With excellent rotational stability, the MagLev fan eliminates vibration and typical wobble and shaking typically experienced in fan motors. MagLev also provides excellent high temperature endurance that results in long life. Additionally, MagLev fans also feature all-plastic manufacture of major items for optimal insulation resistance and electrostatic discharge (ESD) performance. The DR MagLev Power series also feature two innovations to further enhance performance and life span. Seal and Clip (S&C) and Blanked and Seamless (B&S) technologies both add additional benefits such as dust invasion resistance, prevention of oil leakage and increased resistance to movement due to temperature changes.
Extended motor life
Prevention of oil leakage
High quality construction
Prevention of oil leakage
High quality construction
