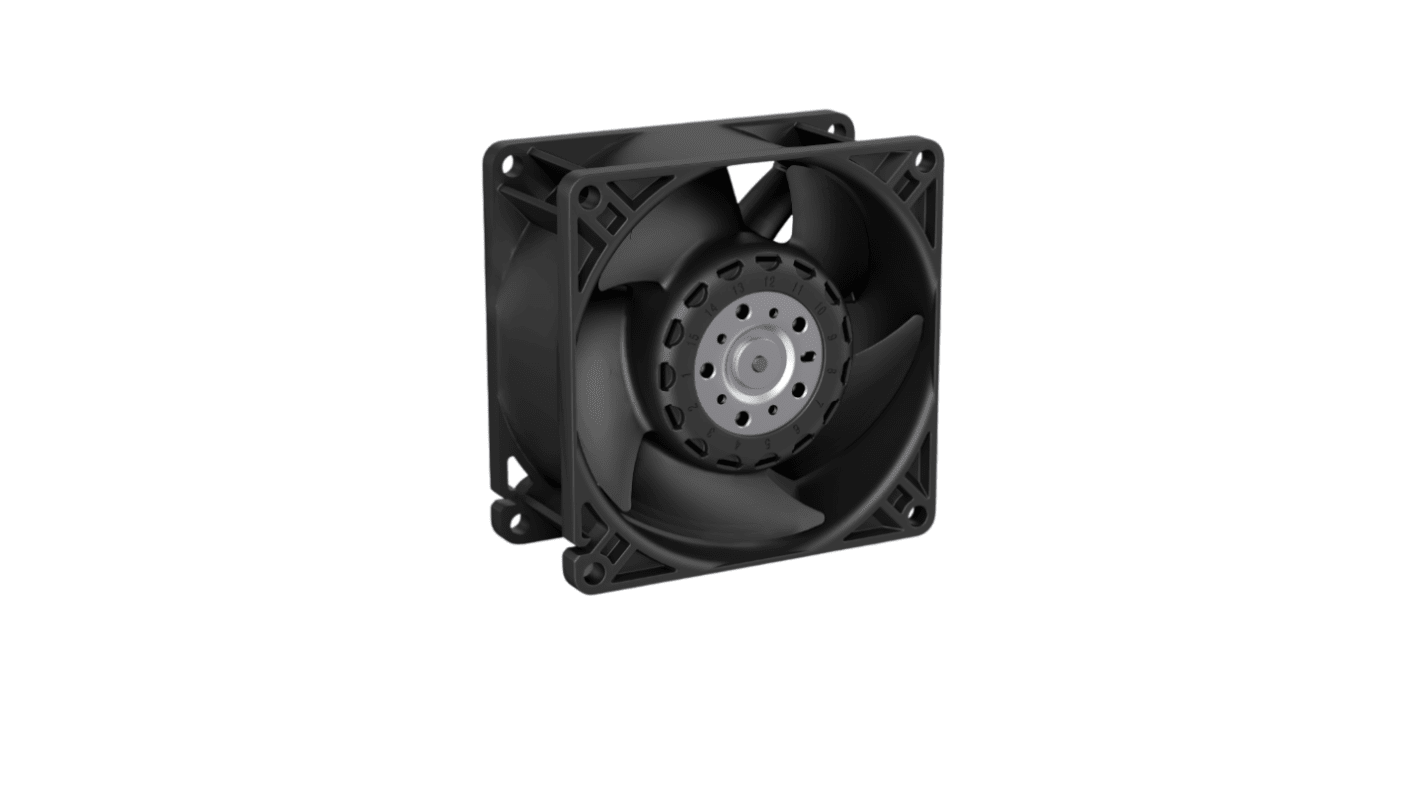

ebm-papst AF80-00322 Series DC Axial Fans, 48V dc, 135 m³/h, 11.5 W, 240 mA Max, IP20 80 mm 80mm 38 mm
- RS Stock No.:
- 646-789
- Mfr. Part No.:
- 8315100322
- Brand:
- ebm-papst
Subtotal (1 unit)*
£43.95
(exc. VAT)
£52.74
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 35 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £43.95 |
*price indicative
- RS Stock No.:
- 646-789
- Mfr. Part No.:
- 8315100322
- Brand:
- ebm-papst
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ebm-papst | |
| Product Type | DC Axial Fans | |
| Supply Voltage | 48V dc | |
| Power Consumption | 11.5W | |
| Maximum Current | 240mA | |
| Air Flow | 135m³/h | |
| Noise Level | 61dBA | |
| Fan Speed | 10rpm | |
| Terminal Type | Wire | |
| External Depth | 38mm | |
| Fan Frame Size | 80 mm | |
| Bearing Type | Ball | |
| Series | AF80-00322 | |
| Width | 80mm | |
| Standards/Approvals | UL507, GB 12350, EN 62368, EAC, CSA, CE | |
| Depth | 38mm | |
| Height | 80mm | |
| IP Rating | IP20 | |
| Select all | ||
|---|---|---|
Brand ebm-papst | ||
Product Type DC Axial Fans | ||
Supply Voltage 48V dc | ||
Power Consumption 11.5W | ||
Maximum Current 240mA | ||
Air Flow 135m³/h | ||
Noise Level 61dBA | ||
Fan Speed 10rpm | ||
Terminal Type Wire | ||
External Depth 38mm | ||
Fan Frame Size 80 mm | ||
Bearing Type Ball | ||
Series AF80-00322 | ||
Width 80mm | ||
Standards/Approvals UL507, GB 12350, EN 62368, EAC, CSA, CE | ||
Depth 38mm | ||
Height 80mm | ||
IP Rating IP20 | ||
- COO (Country of Origin):
- HU
AxiForce 80
AxiForce is the latest generation of compact axial fan from ebm-papst. Developed for applications with high back pressures whilst offering a steep performance curve characteristic.
Features and Benefits
•Models offering air flow up to 215m3/h
•Aerodynamic design of housing and impeller providing quiet operation
•Powerful and efficient motor technology
•Long service life
•IP68 options offering resistance to harsh environmental conditions
•PWM control and speed signal options available
Applications: Variable frequency drives, automation equipment, LED displays, power modules for 5G mobile network infrastructure, video streaming servers or data centre equipment.
Note
Suitable Accessory 250-870,507-911,200-7659,826-1379,101-8068
