ABB Auxiliary Contact, 2 Contact, 2 NC/2 NO, S800, DIN Rail, 250 V dc, 400V ac, 2CCS800900R0011

View all Auxiliary Contacts

Subtotal (1 unit)*

£36.15

(exc. VAT)

£43.38

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 13 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£36.15

*price indicative

Sponsored
An ABB auxiliary contact next to an ABB contactor on a pale red background
Red ABB brand logo on a white background
Work Smarter – Add ABB Contactors
Designed to work seamlessly together, ABB contactors and auxiliary contacts boost functionality, improve monitoring, and keep your setup running smoothly. Add them now to get the full ABB advantage.
Shop Here
RS Stock No.:
435-481
Mfr. Part No.:
2CCS800900R0011
Brand:
ABB
Find similar products by selecting one or more attributes.
Select all

Brand

ABB

Product Type

Auxiliary Contact

Number of Contacts

2

Normal State Configuration

2 NC/2 NO

Series

S800

Mount Type

DIN Rail

Terminal Type

Screw

Pole and Throw Configuration

DPDT

Contact Voltage

250, 400V dc

Minimum Operating Temperature

-25°C

Mounting Location

Side Mounting

Operational Current Ie

0A

Maximum Operating Temperature

60°C

Standards/Approvals

No

RoHS Status: Exempt

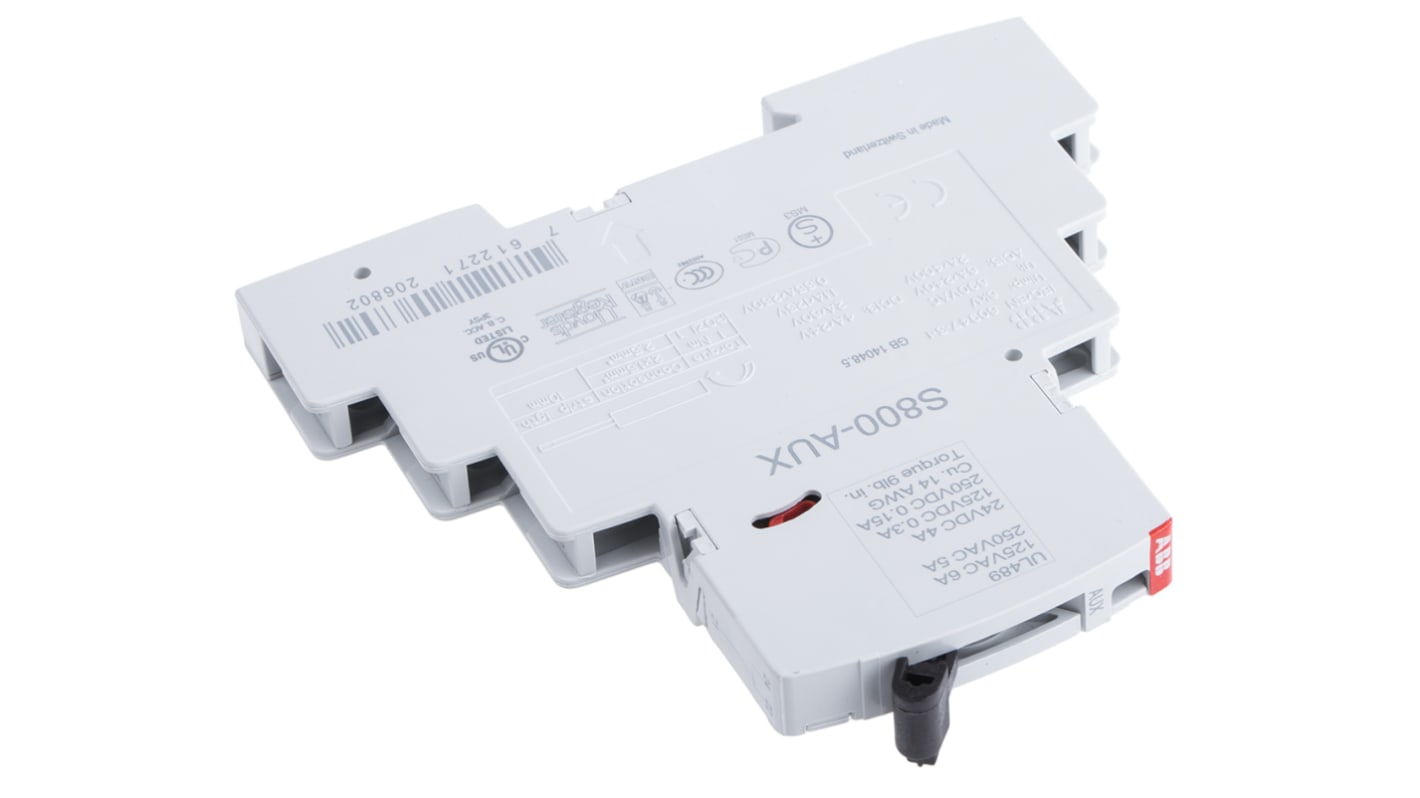

ABB S800 Series Auxiliary Contact, 60°C Maximum Operating Temperature, Side Mounting Mount Type - 2CCS800900R0011


This auxiliary contact provides auxiliary signalling for control circuits in automated and electrical systems, configured to switch two independent circuits with both normally closed and normally open contacts. It is designed for side mounting on DIN rails and intended for integration alongside primary switching devices in industrial installations, operating across a moderate ambient temperature range.

Features & Benefits


• 2NC2NO contact arrangement enables separate signalling circuits
• DPDT configuration permits simultaneous dual-circuit changeover
• Side-mount DIN rail design simplifies panel installation
• Operational current rated at 0A prevents load switching misuse
• Maximum operating temperature 60°C supports warm electrical cabinets
• Minimum operating temperature -25°C allows cold-environment use

**Applications**


• Suitable for monitoring contactors in motor control panels
• Ideal for status feedback in PLC-connected control cabinets
• Used with auxiliary relays to expand signalling capacity
• Can be used for interlocking circuits in automation rigs
• Used for retrofit of side-mounted DIN rail assemblies

How does the device Interface with existing control equipment?


Terminals provide potential-free switching between two independent circuits, enabling direct connection to input modules and relay coils without altering primary power paths.

What mounting considerations should I follow for reliable operation?


Install on a standard DIN rail with side-mount orientation

ensure adequate ventilation to maintain ambient temperature between -25°C and 60°C.

Can it carry load currents for actuators or motors?


No, the operational current specification is 0A, indicating it is intended solely for signalling and not for switching powered loads.

What contact switching behaviour can be expected during maintenance operations?


The DPDT arrangement offers simultaneous changeover across two poles, allowing isolated testing of control logic while preserving separate NO and NC signalling paths.

Note

These contacts can not be used with type ESB20 installation contactors, only higher types e.g. ESB24
