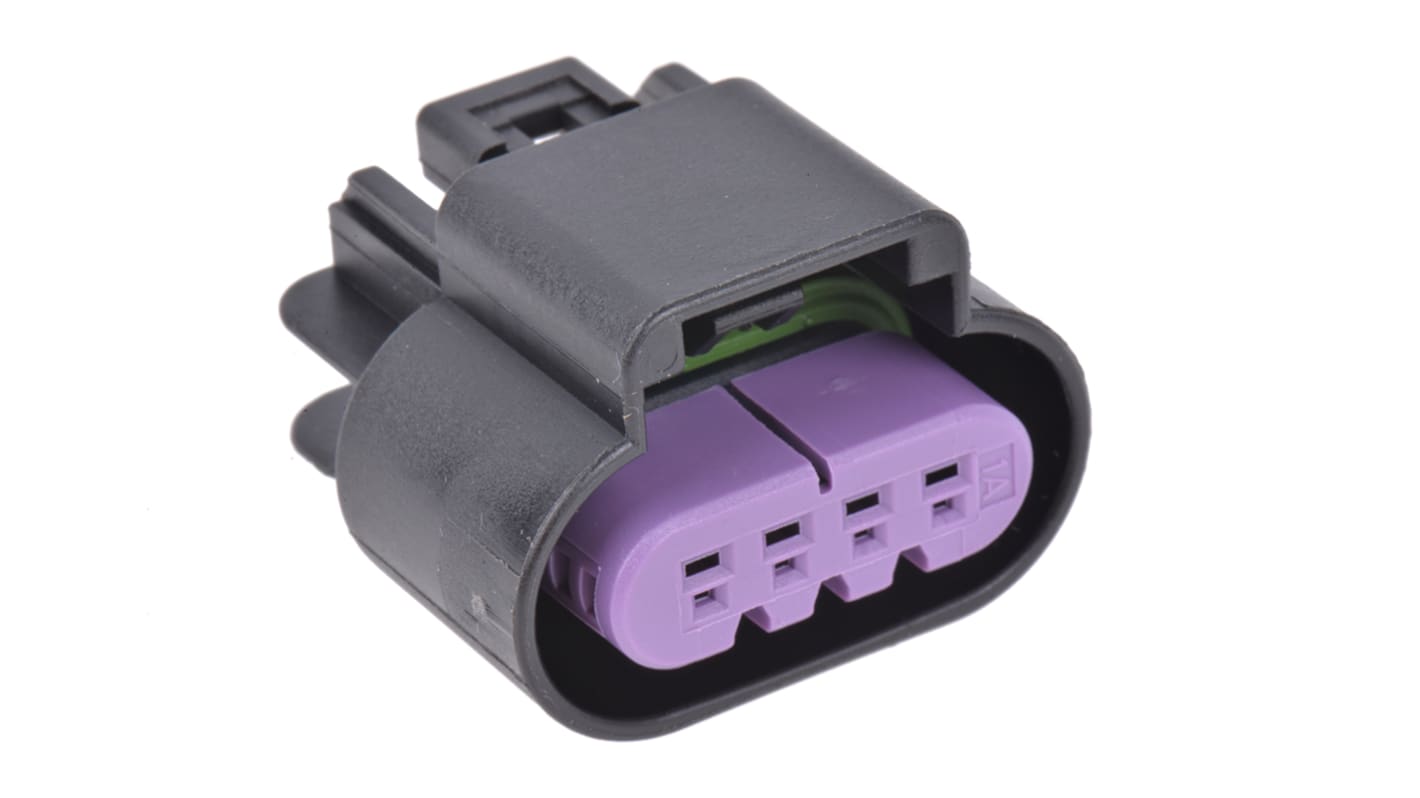

Delphi, GT 150 2 Row 4 Way Cable Mount Socket Connector, with Crimp Termination Method

  • RS Stock No. 896-1940
  • Mfr. Part No. 15487756
  • Brand Delphi
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Delphi GT150 Sealed Female Automotive Connectors

The Delphi GT150 series of sealed female automotive connectors have a 1.5mm blade width.These automotive connectors have silver interface platings which pass the SAE ® J2030 Heavy Duty Connector standard.The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -125°C.

Delphi GT150 Series Automotive Connectors

Specifications
Attribute Value
Number of Contacts 4
Type Connector
Gender Female
Number of Rows 2
Current Rating 15A
Mounting Type Cable Mount
Series GT 150
Colour Black
Termination Method Crimp
Height 23.1mm
Width 32.7mm
Depth 29.3mm
Contact Material Tin Brass
Contact Plating Tin
Maximum Operating Temperature +125°C
Minimum Operating Temperature -40°C
Housing Material PBT
200 In stock for FREE next working day delivery
Price Each (In a Pack of 10)
£ 1.903
(exc. VAT)
£ 2.284
(inc. VAT)
Units
Per unit
Per Pack*
10 - 90
£1.903
£19.03
100 - 240
£1.712
£17.12
250 - 490
£1.618
£16.18
500 - 990
£1.523
£15.23
1000 +
£1.428
£14.28
*price indicative
