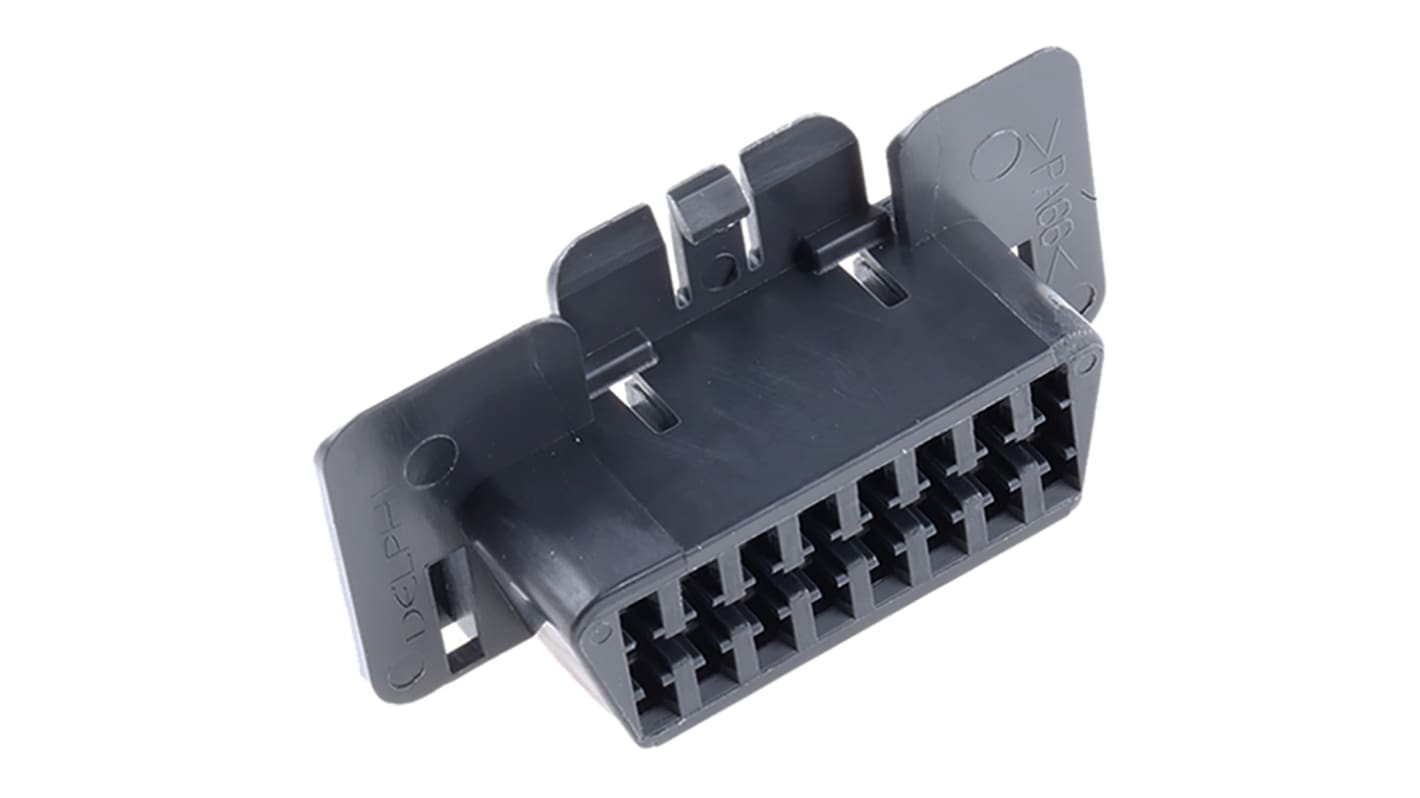

Delphi, Metri-Pack OBD II Automotive Connector Socket 2 Row 16 Way, Crimp Termination

  • RS Stock No. 801-0998
  • Mfr. Part No. 15317575
  • Brand Delphi
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Delphi Metri-Pack OBD II On-Board Diagnostic Connectors

Metri-Pack 150 OBD II On-Board diagnostic automotive connectors designed for under dash applications. These Metri-Pack 150 OBD II On-Board diagnostic automotive connectors are designed to meet SAE J1962 specifications using ISO standard male terminals. The Male test equipment automotive connector (801-0991) has a nylon insulator with ISO standard copper alloy male terminals. Please see table for details of crimp terminals and accessories

Delphi Metri-Pack OBD II Series - On-Board Diagnostic Connection System

Specifications
Attribute Value
Type Connector
Number of Contacts 16
Gender Female
Number of Rows 2
Current Rating 14A
Mounting Type Cable Mount
Series Metri-Pack OBD II
Colour Black
Termination Method Crimp
Height 23.2mm
Width 52mm
Depth 17mm
Housing Material PA
Minimum Operating Temperature -40°C
Maximum Operating Temperature +125°C
216 In stock - FREE next working day delivery available
Price Each
£ 0.88
(exc. VAT)
£ 1.06
(inc. VAT)
Units
Per unit
1 - 9
£0.88
10 - 24
£0.79
25 - 99
£0.70
100 - 249
£0.59
250 +
£0.53
