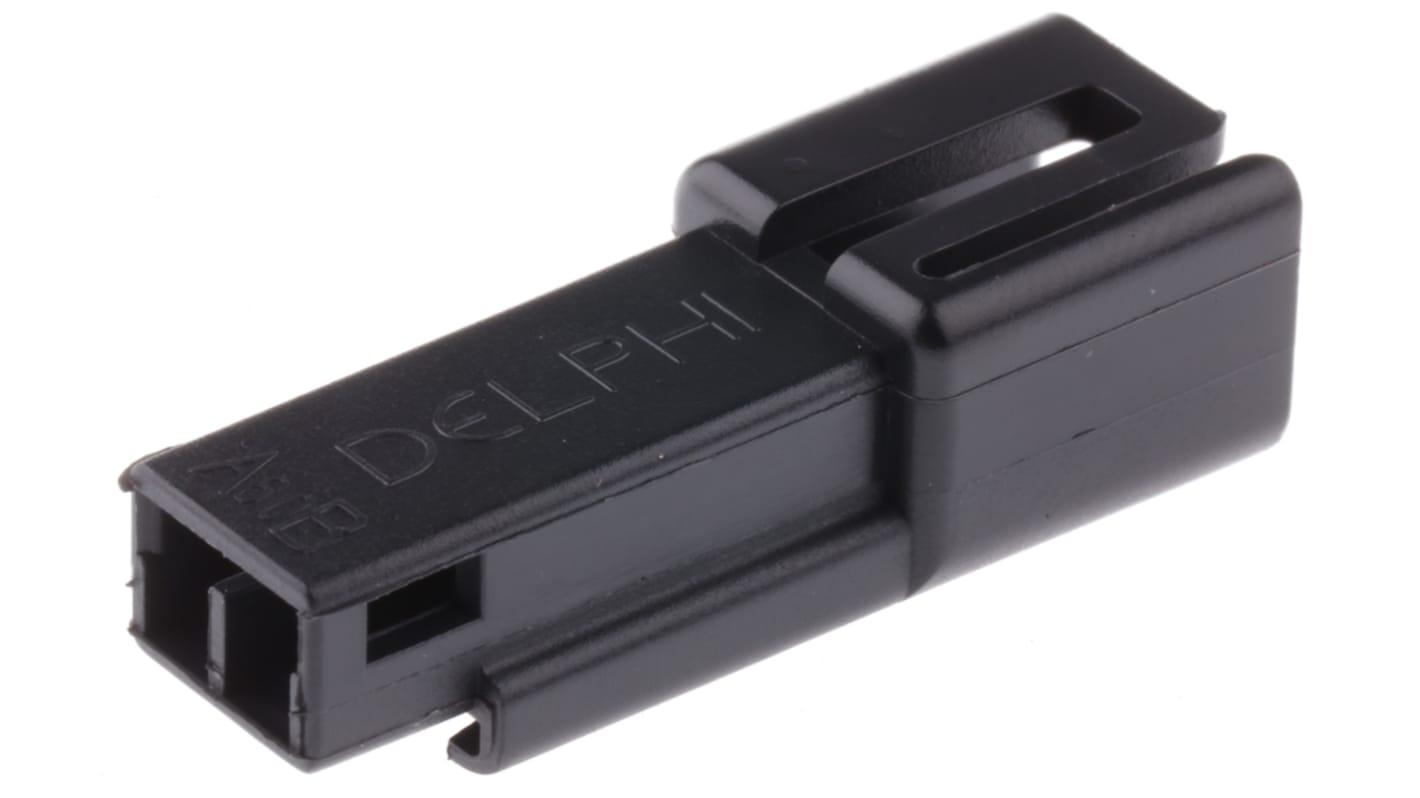

Delphi, Metri-Pack 150 Automotive Connector Plug Black Cable Mount 2 Way, Crimp Termination 12047663
- RS Stock No.:
- 801-0847
- Mfr. Part No.:
- 12047663
- Brand:
- Delphi
Save 18% when you buy 500 units
Subtotal (1 pack of 10 units)*
£3.11
(exc. VAT)
£3.73
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 560 unit(s) ready to ship
- Plus 50 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £0.311 | £3.11 |
| 100 - 490 | £0.283 | £2.83 |
| 500 + | £0.253 | £2.53 |
*price indicative
- RS Stock No.:
- 801-0847
- Mfr. Part No.:
- 12047663
- Brand:
- Delphi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Delphi | |
| Number of Contacts | 2 | |
| Type | Automotive Connector | |
| Gender | Male | |
| Number of Rows | 1 | |
| Current Rating | 14A | |
| Mounting Type | Cable Mount | |
| Series | Metri-Pack 150 | |
| Colour | Black | |
| Termination Method | Crimp | |
| Height | 10.3mm | |
| Width | 11.9mm | |
| Housing Material | PA | |
| Depth | 33mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +125°C | |
Select all | ||
|---|---|---|
Brand Delphi | ||
Number of Contacts 2 | ||
Type Automotive Connector | ||
Gender Male | ||
Number of Rows 1 | ||
Current Rating 14A | ||
Mounting Type Cable Mount | ||
Series Metri-Pack 150 | ||
Colour Black | ||
Termination Method Crimp | ||
Height 10.3mm | ||
Width 11.9mm | ||
Housing Material PA | ||
Depth 33mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +125°C | ||
- COO (Country of Origin):
- US
Delphi Metri-Pack 150 Unsealed Male Automotive Connectors
Metri-Pack 150 unsealed male automotive connectors with a low energy, low voltage capability and a maximum continuous current of 14 A. These Metri-Pack 150 unsealed male automotive connectors offer a high resistance to chemicals and abrasion and withstand a wide temperature range of -40 to 125°C. Typical applications for these Metri-Pack 150 automotive connectors include limited space applications that do not require environmental protection. For mating halves and accessories please see table.
Standards
Metri-Pack 150 series automotive connectors can meet or exceed the the requirements of most marine, appliance and industrial control applications.
Delphi Metri-Pack 150 Series Automotive Connectors
