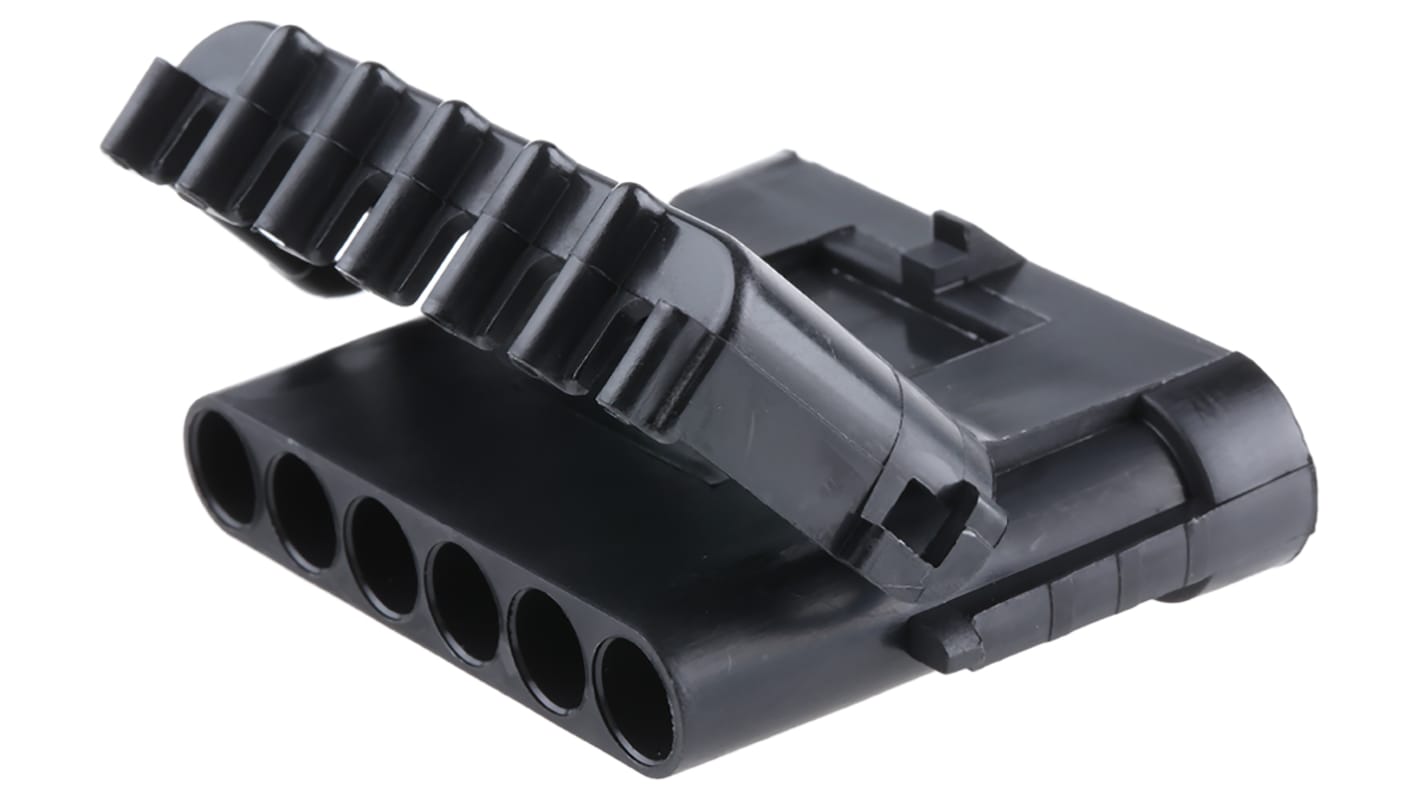

Delphi, Weather-Pack Automotive Connector Plug Black Cable Mount 6 Way 12010975
- RS Stock No.:
- 801-0787
- Mfr. Part No.:
- 12010975
- Brand:
- Delphi
Save 17% when you buy 100 units
Subtotal (1 unit)*
£2.13
(exc. VAT)
£2.56
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 209 unit(s) shipping from 01 October 2025
- Plus 126 unit(s) shipping from 01 October 2025
- Plus 500 unit(s) shipping from 08 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £2.13 |
10 - 99 | £1.95 |
100 + | £1.75 |
*price indicative
- RS Stock No.:
- 801-0787
- Mfr. Part No.:
- 12010975
- Brand:
- Delphi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Delphi | |
Type | Automotive Connector | |
Number of Contacts | 6 | |
Gender | Male | |
Current Rating | 20A | |
Mounting Type | Cable Mount | |
Series | Weather-Pack | |
Colour | Black | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +125°C | |
Select all | ||
---|---|---|
Brand Delphi | ||
Type Automotive Connector | ||
Number of Contacts 6 | ||
Gender Male | ||
Current Rating 20A | ||
Mounting Type Cable Mount | ||
Series Weather-Pack | ||
Colour Black | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +125°C | ||
Delphi Weather-Pack Sealed Male Automotive Connector Assemblies
Weather-Pack sealed male automotive connector assemblies with triple ribbed silicone connector and cavity seals designed to withstand extreme temperatures, chemicals and fluids. The terminals of these Weather-Pack automotive connectors are tin plated and have special core wings that allow crimp only connections so solder is not needed, the dual tangs on the terminals help prevent backing out. These Weather-Pack automotive connectors have positive locking indexing to prevent mismating along with secondary lock and Connector Position Assurance (CPA)
Typical applications for these Weather Pack sealed automotive connectors are low energy, low voltage automotive applications in harsh environments such as commercial vehicle and marine applications.
For mating connectors, crimp terminals and cable seals please see table.
Typical applications for these Weather Pack sealed automotive connectors are low energy, low voltage automotive applications in harsh environments such as commercial vehicle and marine applications.
For mating connectors, crimp terminals and cable seals please see table.
Delphi Weather-Pack Series Automotive Connectors
