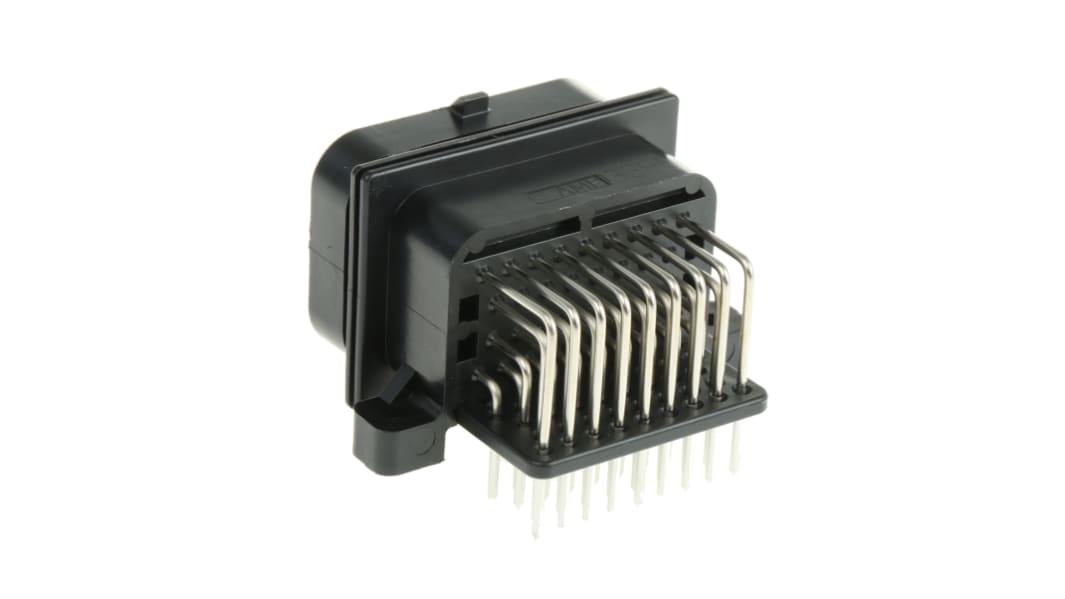

TE Connectivity, SUPERSEAL Automotive Connector Plug Through Hole 34 Way, Solder Termination 6437288-2
- RS Stock No.:
- 726-7027
- Mfr. Part No.:
- 6437288-2
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£13.62
(exc. VAT)
£16.34
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 75 unit(s) ready to ship
- Plus 22 unit(s) ready to ship from another location
- Plus 95 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £13.62 |
| 10 - 49 | £12.53 |
| 50 + | £11.59 |
*price indicative
- RS Stock No.:
- 726-7027
- Mfr. Part No.:
- 6437288-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Type | Header | |
| Number of Contacts | 34 | |
| Gender | Male | |
| Number of Rows | 4 | |
| Mounting Type | Through Hole | |
| Series | SUPERSEAL | |
| Termination Method | Solder | |
| Height | 27.9mm | |
| Width | 45.5mm | |
| Depth | 36.5mm | |
| Housing Material | PET | |
| Contact Material | Brass | |
| Contact Plating | Gold over Nickel | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Type Header | ||
Number of Contacts 34 | ||
Gender Male | ||
Number of Rows 4 | ||
Mounting Type Through Hole | ||
Series SUPERSEAL | ||
Termination Method Solder | ||
Height 27.9mm | ||
Width 45.5mm | ||
Depth 36.5mm | ||
Housing Material PET | ||
Contact Material Brass | ||
Contact Plating Gold over Nickel | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -40°C | ||
TE Connectivity SUPERSEAL Series 1.0 Pin Headers
SUPERSEAL vertical mounting 1.0mm pin headers with IP 67 sealing, polyester housings and gold plated brass contacts. These SUPERSEAL automotive wire connectors are available with a choice of keying types and locking styles. For mateable plug housings see stock number 719-9671 typically.
TE Connectivity SUPERSEAL Connectors, 1.0 mm and 1.5 mm System
Developed to meet the constantly increasing needs and requirements for safety and reliability in the electrical connection field, these connectors fulfill all the requirements prescribed by the various automotive and industrial standards. Typical applications include various automotive sensor devices, oil pressure senders, water temperature monitoring or any application requiring waterproof protection to IP67.
Features and Benefits
Sturdy and reliable contacts
Double contact spring design
Secondary lock ensures correct and complete insertion of the contact
Silicone rubber seals
Double contact spring design
Secondary lock ensures correct and complete insertion of the contact
Silicone rubber seals
