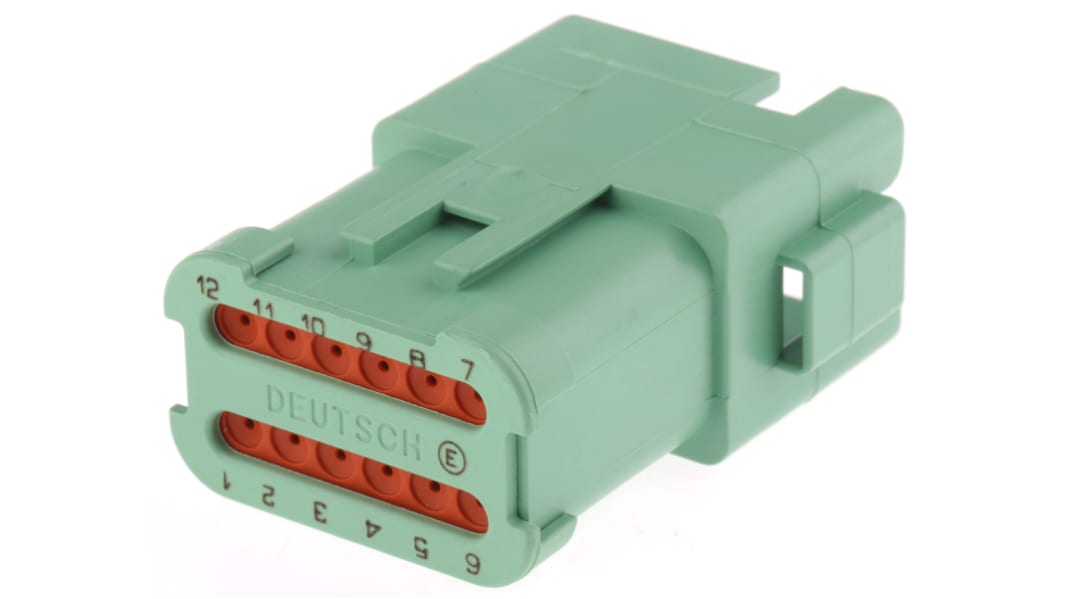

Deutsch, DT Automotive Connector Socket Green 12 Way, Crimp Termination DT04-12PC-CE07
- RS Stock No.:
- 724-2258
- Mfr. Part No.:
- DT04-12PC-CE07
- Brand:
- Deutsch
Save 17% when you buy 50 units
Subtotal (1 unit)*
£8.92
(exc. VAT)
£10.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 481 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £8.92 |
| 10 - 49 | £8.12 |
| 50 + | £7.32 |
*price indicative
- RS Stock No.:
- 724-2258
- Mfr. Part No.:
- DT04-12PC-CE07
- Brand:
- Deutsch
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Deutsch | |
| Type | Automotive Connector | |
| Number of Contacts | 12 | |
| Gender | Female | |
| Number of Rows | 2 | |
| Current Rating | 13A | |
| Series | DT | |
| Colour | Green | |
| Termination Method | Crimp | |
| Height | 22.25mm | |
| Width | 40.56mm | |
| Housing Material | Thermoplastic | |
| Depth | 51.89mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +125°C | |
| Contact Plating | Nickel | |
| Contact Material | Copper Alloy | |
Select all | ||
|---|---|---|
Brand Deutsch | ||
Type Automotive Connector | ||
Number of Contacts 12 | ||
Gender Female | ||
Number of Rows 2 | ||
Current Rating 13A | ||
Series DT | ||
Colour Green | ||
Termination Method Crimp | ||
Height 22.25mm | ||
Width 40.56mm | ||
Housing Material Thermoplastic | ||
Depth 51.89mm | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +125°C | ||
Contact Plating Nickel | ||
Contact Material Copper Alloy | ||
- COO (Country of Origin):
- US
DT Series Connectors, General Purpose Plugs and Receptacles
Deutsch DT Series connector plugs and receptacles are designed for cable to cable automotive applications within the engine compartment, chassis or cab. These harsh environment connectors provide reliability and excellent performance where even a small degree of connector contact degradation is critical.
Features and Benefits:
• Tactile and audible connector mating
• Rugged thermoplastic connector housing
• Hand insertable/removable contacts
• Operating temperature range -55 → +125 °C
• Dielecric withstand voltage 1500 Vac
• Nickel plated copper alloy contacts
• Positive contact retention
• Suitable for size 16 contacts
• Rugged thermoplastic connector housing
• Hand insertable/removable contacts
• Operating temperature range -55 → +125 °C
• Dielecric withstand voltage 1500 Vac
• Nickel plated copper alloy contacts
• Positive contact retention
• Suitable for size 16 contacts
Note
Deutsch DT Series Connectors
Deutsch DT series connectors are ideally suited for applications that require a secure reliable connector in harsh environments such as under-the-hood, transmission tunnels and many others areas that require secure connections in both power and signal.
