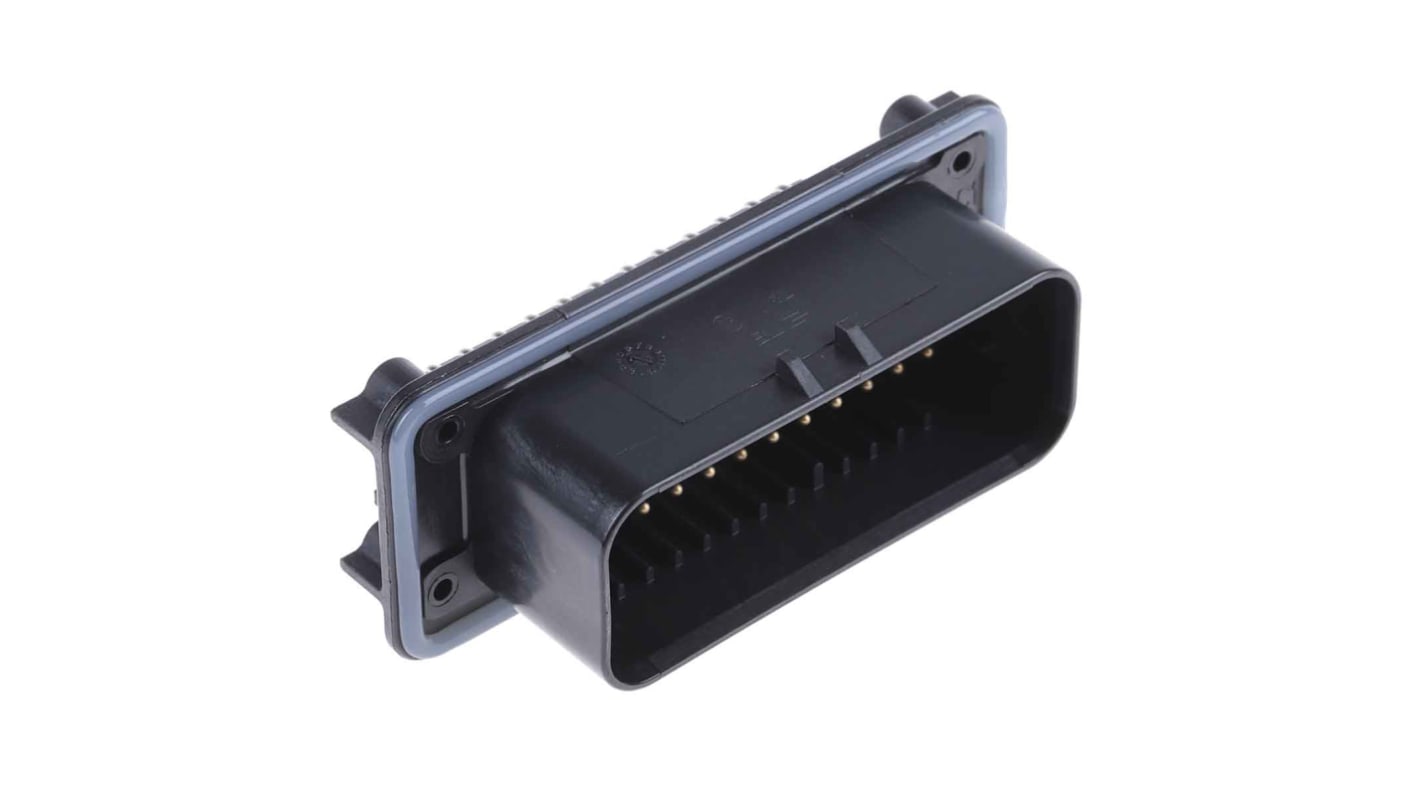

TE Connectivity, AMPSEAL Automotive Connector Plug Through Hole 35 Way, Solder Termination 1-776163-1
- RS Stock No.:
- 718-1474
- Distrelec Article No.:
- 302-69-849
- Mfr. Part No.:
- 1-776163-1
- Brand:
- TE Connectivity
Save 9% when you buy 50 units
Subtotal (1 unit)*
£14.53
(exc. VAT)
£17.44
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 28 unit(s) ready to ship
- Plus 23 unit(s) ready to ship from another location
- Plus 10 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £14.53 |
10 - 49 | £13.39 |
50 + | £13.19 |
*price indicative
- RS Stock No.:
- 718-1474
- Distrelec Article No.:
- 302-69-849
- Mfr. Part No.:
- 1-776163-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Number of Contacts | 35 | |
Type | Power Connector | |
Gender | Male | |
Current Rating | 17A | |
Mounting Type | Through Hole | |
Series | AMPSEAL | |
Termination Method | Solder | |
Height | 32.1mm | |
Width | 76.9mm | |
Housing Material | PBT | |
Depth | 37.9mm | |
Contact Material | Brass | |
Contact Plating | Gold | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Number of Contacts 35 | ||
Type Power Connector | ||
Gender Male | ||
Current Rating 17A | ||
Mounting Type Through Hole | ||
Series AMPSEAL | ||
Termination Method Solder | ||
Height 32.1mm | ||
Width 76.9mm | ||
Housing Material PBT | ||
Depth 37.9mm | ||
Contact Material Brass | ||
Contact Plating Gold | ||
TE Connectivity AMPSEAL PCB Headers, IP67 Rated
TE Connectivity's range of brilliant AMPSEAL automotive connectors are known for their rugged durability, even under high temperature. The connectors are IP69K rated when mated with another connector and are make great use in industrial applications. Not only are they brilliant in rugged applications, but they're great in scenarios with high vibration and shock.
Features and benefits:
• Operating temperatures of -40°C to +125°C
• Insulation resistance of 100 megaohms as a minimum
• 250 Volts AC
• Sealed with a silicone rubber
• Great in high vibration and shock
• Superior ruggedness and amazing with high temperatures
• IP69K rating
• Insulation resistance of 100 megaohms as a minimum
• 250 Volts AC
• Sealed with a silicone rubber
• Great in high vibration and shock
• Superior ruggedness and amazing with high temperatures
• IP69K rating
Applications:
• Off road use
• Automotive use – Trucks, Busses, Construction, Agriculture, Marine and Two wheelers
• Special circumstances such as emergency service use
• Automotive use – Trucks, Busses, Construction, Agriculture, Marine and Two wheelers
• Special circumstances such as emergency service use
What is an IP69K rating?
An IP69 rating is the highest qualification of sealant a product can receive. The rating implies that the product is fully dust tight & can withstand high pressure and high temperature water from close range.
