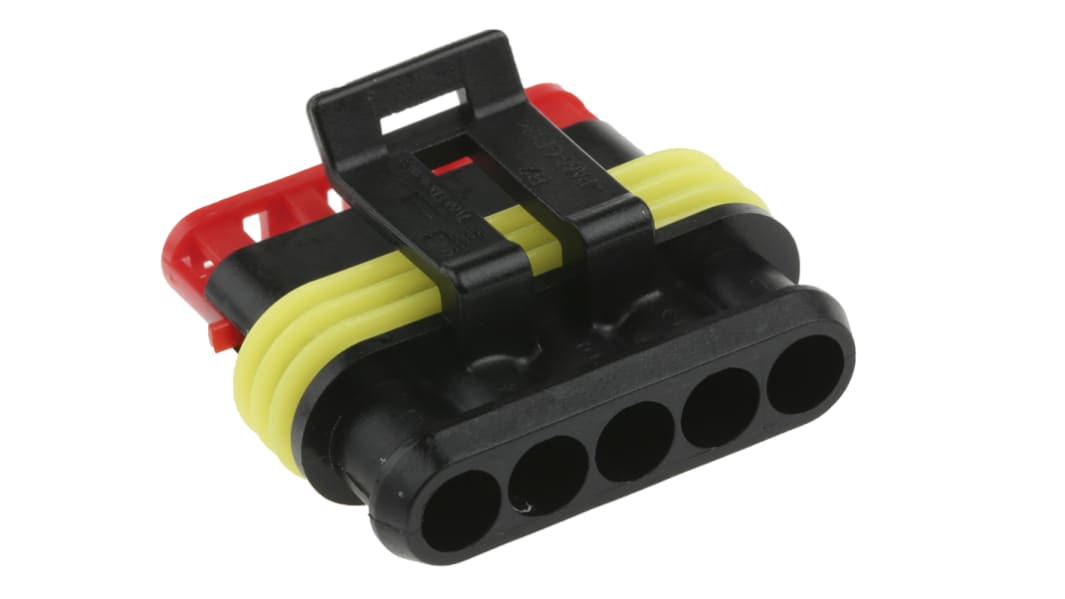

TE Connectivity Automotive Connector Female Black Cable 5 Way Crimp Termination
- RS Stock No.:
- 314-1227
- Distrelec Article No.:
- 304-42-066
- Mfr. Part No.:
- 282089-1
- Brand:
- TE Connectivity
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
£3.90
(exc. VAT)
£4.70
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 880 unit(s) shipping from 20 July 2026
- Plus 350 unit(s) shipping from 20 July 2026
- Plus 615 unit(s) shipping from 27 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 95 | £0.78 | £3.90 |
| 100 - 495 | £0.554 | £2.77 |
| 500 + | £0.522 | £2.61 |
*price indicative
- RS Stock No.:
- 314-1227
- Distrelec Article No.:
- 304-42-066
- Mfr. Part No.:
- 282089-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Automotive Connector | |
| Termination Type | Crimp | |
| Number of Contacts | 5 | |
| Sub Type | Automotive Connector Housing | |
| Gender | Female | |
| Number of Rows | 1 | |
| Mount Type | Cable | |
| Cord Included | No | |
| Colour | Black | |
| IP Rating | IPX9, IPX6K | |
| Diameter | 6.3mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 120°C | |
| Width | 9.3mm | |
| Standards/Approvals | IEC 529 DIN 40050 Part 9 | |
| Height | 32.2mm | |
| Housing Material | Nylon | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Automotive Connector | ||
Termination Type Crimp | ||
Number of Contacts 5 | ||
Sub Type Automotive Connector Housing | ||
Gender Female | ||
Number of Rows 1 | ||
Mount Type Cable | ||
Cord Included No | ||
Colour Black | ||
IP Rating IPX9, IPX6K | ||
Diameter 6.3mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 120°C | ||
Width 9.3mm | ||
Standards/Approvals IEC 529 DIN 40050 Part 9 | ||
Height 32.2mm | ||
Housing Material Nylon | ||
- COO (Country of Origin):
- IT
TE Connectivity 1.5 Superseal Series, Connector Housings - AMP Superseal 1.5
Our range of TE Connectivity, PCB Connector Housings form part of the 1.5 Superseal series. A typical applications for these types of housings are to provide a receptacle for connectors when they are mounted to a printed circuit board. These types of fittings are an essential component that offer protection for the connection that it is housing.
Features and Benefits
• Comprised of black 6.6 glass filled poly-amide
• 1 - 6 positions
• Plug housings for receptacle contacts, cap housings and tab contact variants
• Pre-assembled secondary lock
• Silicon rubber seals
• Panel or cable mount
• Temperature range of the 1.5 mm pitch superseal series is of -40 to +125°C
• Suitable for powertrain, security, and body & chassis systems
• Dielectric withstand voltage 1500 Vrms
TE Connectivity SUPERSEAL Connectors, 1.0 mm and 1.5 mm System
Developed to meet the constantly increasing needs and requirements for safety and reliability in the electrical connection field, these connectors fulfill all the requirements prescribed by the various automotive and industrial standards. Typical applications include various automotive sensor devices, oil pressure senders, water temperature monitoring or any application requiring waterproof protection to IP67.
Features and Benefits
Sturdy and reliable contacts
Double contact spring design
Secondary lock ensures correct and complete insertion of the contact
Silicone rubber seals
Note
For Superseal series 1.5 contacts see range. For crimp tool see 314-1362
For suitable female housings see 314-1277 and associated ranges.
For suitable female housings see 314-1277 and associated ranges.
