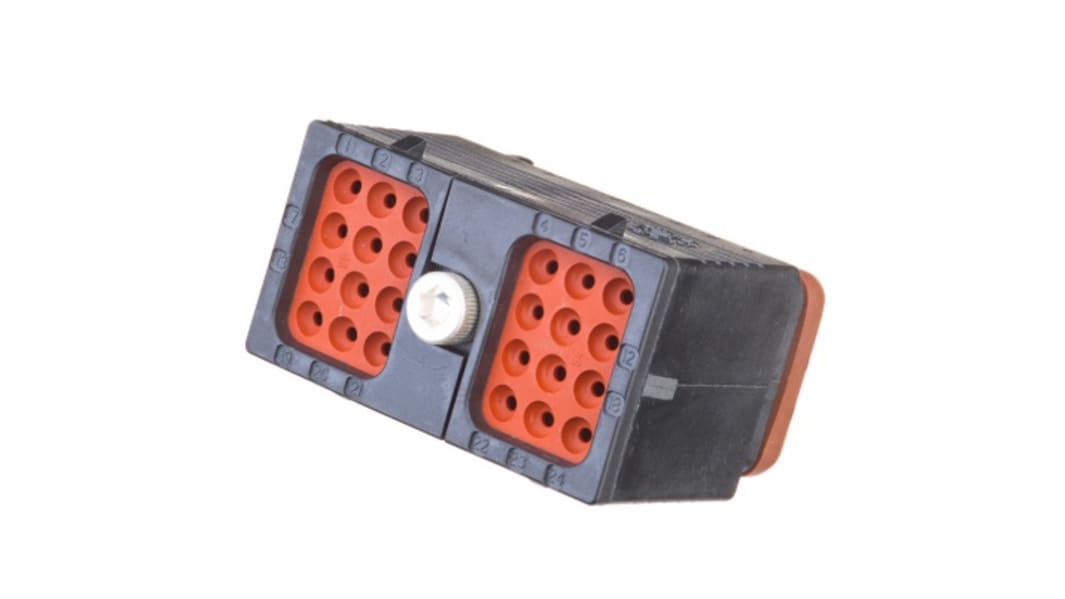

Deutsch, DRC Automotive Connector Plug Black PCB 24 Way DRC16-24SA
- RS Stock No.:
- 183-9268
- Mfr. Part No.:
- DRC16-24SA
- Brand:
- Deutsch
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 183-9268
- Mfr. Part No.:
- DRC16-24SA
- Brand:
- Deutsch
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Deutsch | |
| Number of Contacts | 24 | |
| Type | Plug Housing | |
| Gender | Male | |
| Number of Rows | 4 | |
| Mounting Type | PCB | |
| Series | DRC | |
| Colour | Black | |
| IP Rating | IP68 | |
| Height | 29.16mm | |
| Width | 53.34mm | |
| Depth | 40.64mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +125°C | |
Select all | ||
|---|---|---|
Brand Deutsch | ||
Number of Contacts 24 | ||
Type Plug Housing | ||
Gender Male | ||
Number of Rows 4 | ||
Mounting Type PCB | ||
Series DRC | ||
Colour Black | ||
IP Rating IP68 | ||
Height 29.16mm | ||
Width 53.34mm | ||
Depth 40.64mm | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +125°C | ||
RoHS Status: Exempt
DEUTSCH DRC housings are rugged rectangular connectors that are available in 24-70 cavities and feature a jackscrew for mating. They accept size 16 and 20 DEUTSCH contacts that are rated for 13 and 7.5 amps.
