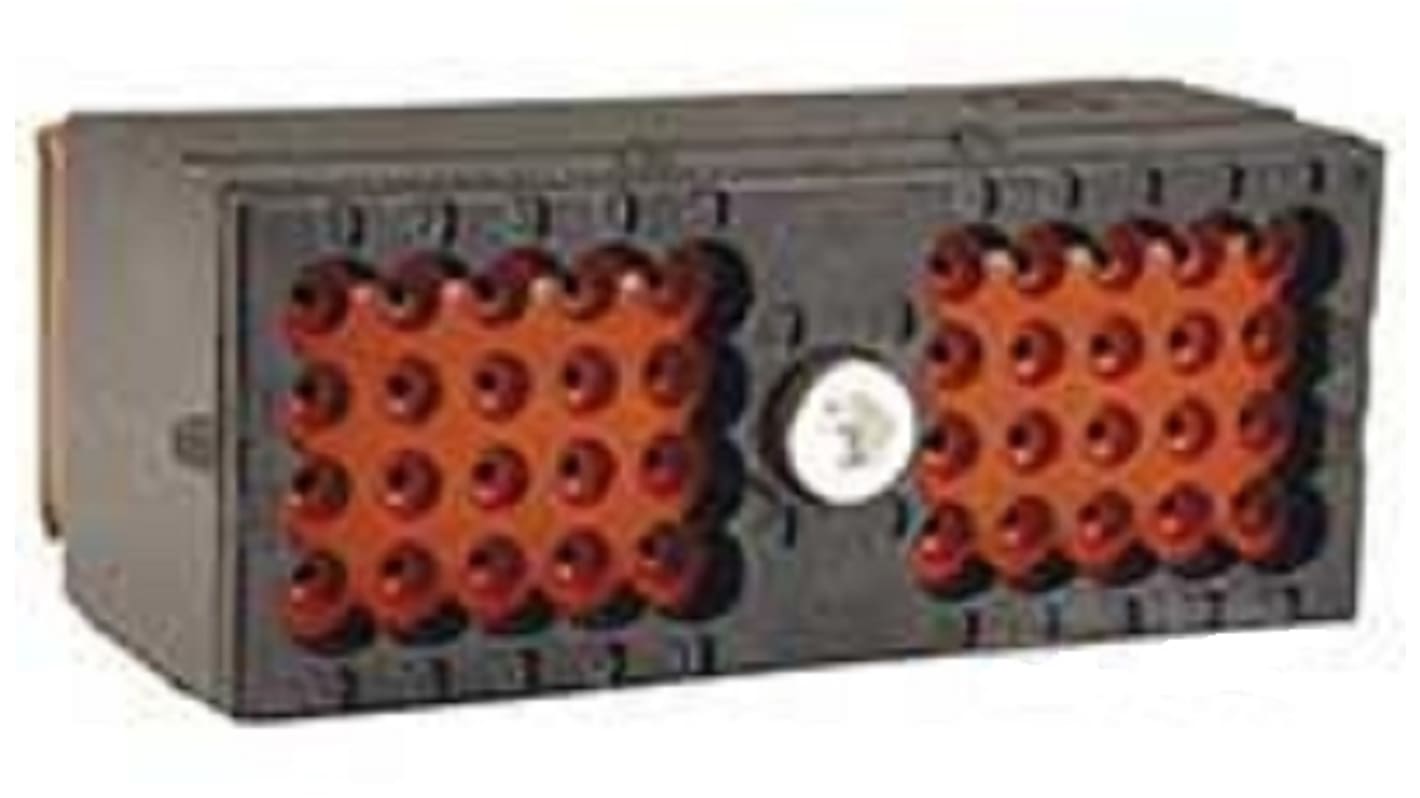

Deutsch, DRC Automotive Connector Plug 40 Way
- RS Stock No.:
- 183-9056
- Mfr. Part No.:
- DRC16-40S
- Brand:
- Deutsch
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each (In a Bag of 125)
£20.482
(exc. VAT)
£24.578
(inc. VAT)
| Units | Per unit | Per Bag* |
| 125 + | £20.482 | £2,560.25 |
| *price indicative | ||
- RS Stock No.:
- 183-9056
- Mfr. Part No.:
- DRC16-40S
- Brand:
- Deutsch
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details
DEUTSCH DRC housings are rugged rectangular connectors that are available in 24-70 cavities and feature a jackscrew for mating. They accept size 16 and 20 DEUTSCH contacts that are rated for 13 and 7.5 amps.
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 40 |
| Type | Plug Housing |
| Gender | Male |
| Number of Rows | 4 |
| Mounting Type | PCB |
| Series | DRC |
| Colour | Black |
| IP Rating | IP68 |
| Height | 30.53mm |
| Width | 72.85mm |
| Depth | 40.64mm |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
