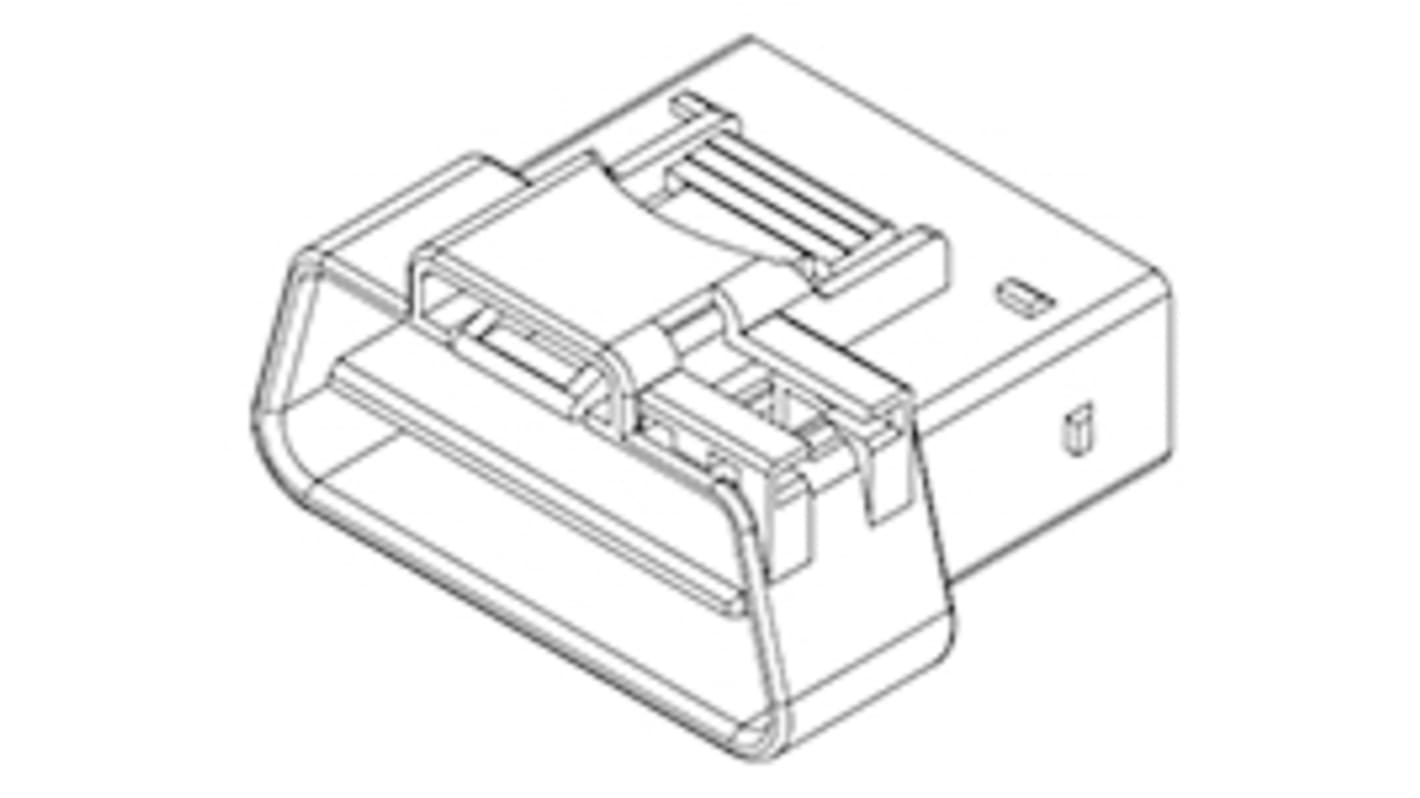

Molex, OBD-II Automotive Connector Plug Black Cable Mount 16 Way, Crimp Termination 68503-1602
- RS Stock No.:
- 178-9559
- Mfr. Part No.:
- 68503-1602
- Brand:
- Molex
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£36.41
(exc. VAT)
£43.69
(inc. VAT)
- RS Stock No.:
- 178-9559
- Mfr. Part No.:
- 68503-1602
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Type | Crimp Housing | |
| Number of Contacts | 16 | |
| Gender | Male | |
| Number of Rows | 2 | |
| Current Rating | 10A | |
| Mounting Type | Cable Mount | |
| Series | OBD-II | |
| Colour | Black | |
| Termination Method | Crimp | |
| Height | 21.71mm | |
| Width | 40.35mm | |
| Depth | 33.1mm | |
| Housing Material | PET | |
| Series Number | 68503 | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -10°C | |
Select all | ||
|---|---|---|
Brand Molex | ||
Type Crimp Housing | ||
Number of Contacts 16 | ||
Gender Male | ||
Number of Rows 2 | ||
Current Rating 10A | ||
Mounting Type Cable Mount | ||
Series OBD-II | ||
Colour Black | ||
Termination Method Crimp | ||
Height 21.71mm | ||
Width 40.35mm | ||
Depth 33.1mm | ||
Housing Material PET | ||
Series Number 68503 | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -10°C | ||
Molex Automotive Connector, 16 Way, 4mm Pitch - OBD-II Series - 68503-1602
Get accurate readings during your automotive diagnostics with this connector plug from Molex. It has 16 terminals for connection to the OBD-II port in your vehicle. Thanks to its polyester housing, this plug is resistant to wear and heat for use in harsh environments. It's designed for crimp termination to ensure a secure connection, making it ideal for use in applications where heavy vibration is likely.
• Wide operating temperature range of -10°C to +85°C for use in harsh conditions
• Light weight of 9.48g to minimise strain on your equipment
• Light weight of 9.48g to minimise strain on your equipment
Applications
• Automotive manufacture
• Vehicle maintenance workshops
• Security and surveillance equipment
• Vehicle maintenance workshops
• Security and surveillance equipment
Where can I find the OBD-II port of my vehicle?
The OBD-II port is located on the underside of the dashboard at the driver's side of a standard passenger vehicle.
