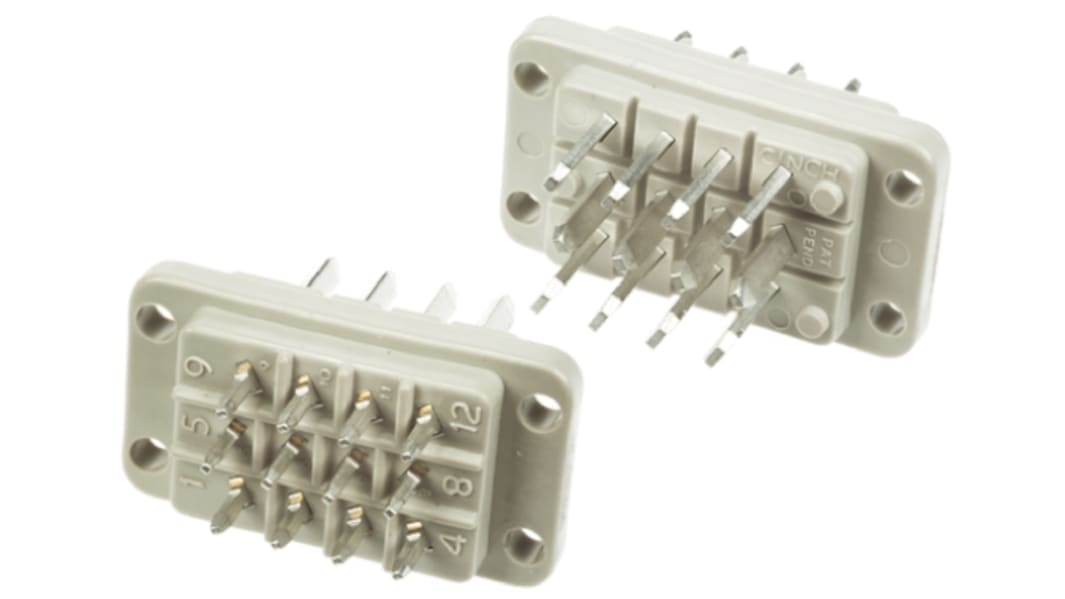

Cinch Automotive Connector Plug Green, Grey Panel Mount 12 Way JA778480000E000
- RS Stock No.:
- 466-034
- Mfr. Part No.:
- JA778480000E000
- Brand:
- Cinch
Bulk discount available
Subtotal (1 unit)*
£8.35
(exc. VAT)
£10.02
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 914 unit(s) ready to ship
- Plus 1,184 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £8.35 |
| 10 - 49 | £7.61 |
| 50 + | £6.85 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£8.98
(exc. VAT)
£10.78
(inc. VAT)
- RS Stock No.:
- 466-034
- Mfr. Part No.:
- JA778480000E000
- Brand:
- Cinch
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cinch | |
| Type | Automotive Connector | |
| Number of Contacts | 12 | |
| Gender | Male | |
| Current Rating | 5A | |
| Mounting Type | Panel Mount | |
| Colour | Green, Grey | |
| Height | 35mm | |
| Width | 24mm | |
| Depth | 41mm | |
| Housing Material | Thermoplastic | |
| Contact Plating | Silver | |
| Maximum Operating Temperature | +100°C | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Brass | |
Select all | ||
|---|---|---|
Brand Cinch | ||
Type Automotive Connector | ||
Number of Contacts 12 | ||
Gender Male | ||
Current Rating 5A | ||
Mounting Type Panel Mount | ||
Colour Green, Grey | ||
Height 35mm | ||
Width 24mm | ||
Depth 41mm | ||
Housing Material Thermoplastic | ||
Contact Plating Silver | ||
Maximum Operating Temperature +100°C | ||
Minimum Operating Temperature -40°C | ||
Contact Material Brass | ||
- COO (Country of Origin):
- IN
Standard Multipole Connectors
Low loss mouldings with bright tin plated contacts
Max working voltage 636Vac/900Vdc at 5A (enclosed use only, derate to 35Vac rms/50Vdc when openly accessible and connection/disconnection is possible without the use of a tool
Plugs and sockets can be chassis mounted
Interchangeable moulded cover shells (non-reversible) and retaining clips for cable mounting are available separately
Max working voltage 636Vac/900Vdc at 5A (enclosed use only, derate to 35Vac rms/50Vdc when openly accessible and connection/disconnection is possible without the use of a tool
Plugs and sockets can be chassis mounted
Interchangeable moulded cover shells (non-reversible) and retaining clips for cable mounting are available separately
Note
Cover shells are supplied with fixing screws, cable clamp and retaining spring. Metal parts, except contacts, are corrosion resistant.
