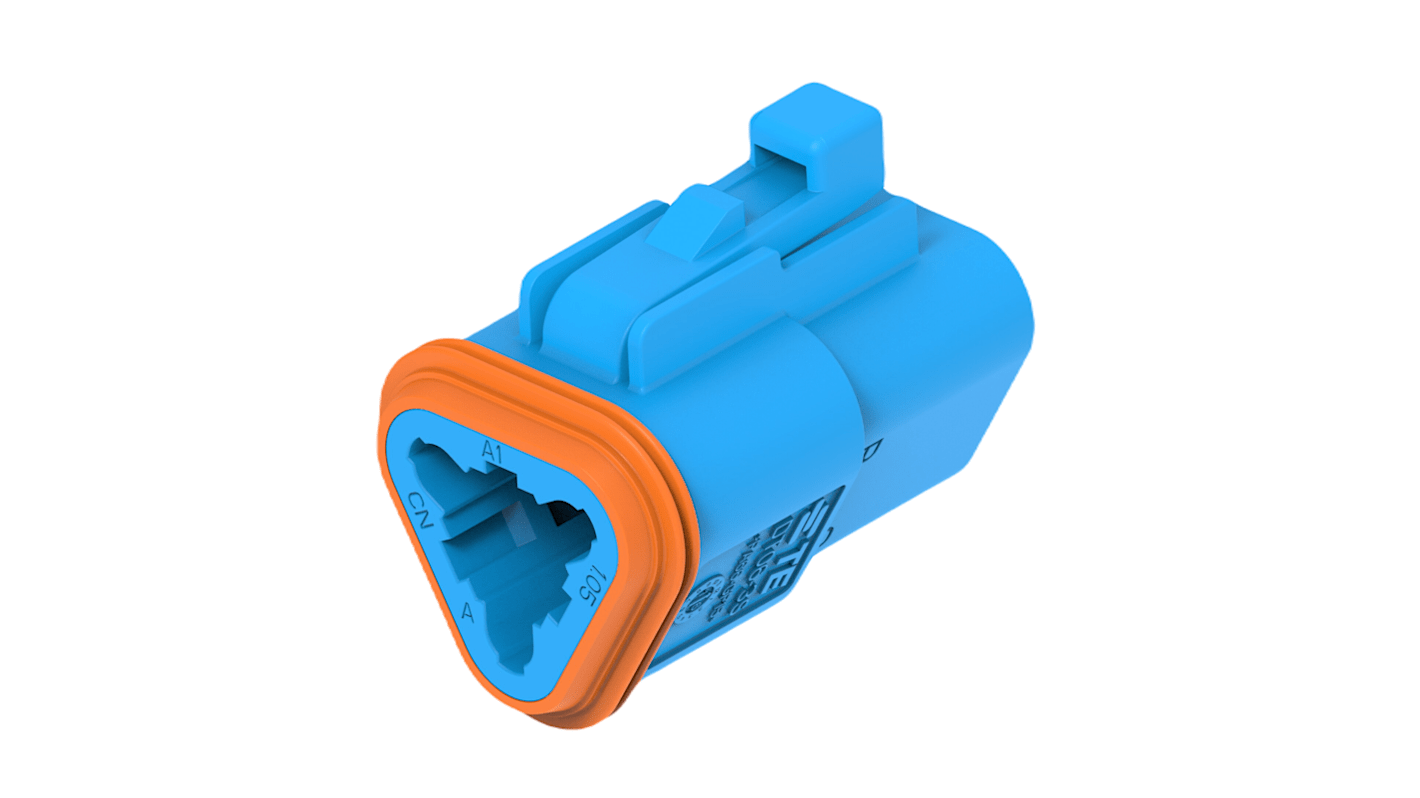

TE Connectivity, DT06-3S Automotive Connector Socket Blue Cable 3 Way, Cable Termination DT06-3S-TN07
- RS Stock No.:
- 170-767
- Mfr. Part No.:
- DT06-3S-TN07
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£1.10
(exc. VAT)
£1.32
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,398 unit(s) ready to ship
- Plus 999,998,601 unit(s) shipping from 01 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £1.10 |
10 - 24 | £1.01 |
25 + | £0.92 |
*price indicative
- RS Stock No.:
- 170-767
- Mfr. Part No.:
- DT06-3S-TN07
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Type | 3 WAY PLUG | |
Number of Contacts | 3 | |
Gender | Female | |
Number of Rows | 2 | |
Current Rating | 13A | |
Mounting Type | Cable | |
Series | DT06-3S | |
Colour | Blue | |
Termination Method | Cable | |
Height | 23.73mm | |
Width | 183.7mm | |
Housing Material | PA GF | |
Depth | 284mm | |
Series Number | DT06-3S | |
Maximum Operating Temperature | +125°C | |
Minimum Operating Temperature | -55°C | |
Corded | No | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Type 3 WAY PLUG | ||
Number of Contacts 3 | ||
Gender Female | ||
Number of Rows 2 | ||
Current Rating 13A | ||
Mounting Type Cable | ||
Series DT06-3S | ||
Colour Blue | ||
Termination Method Cable | ||
Height 23.73mm | ||
Width 183.7mm | ||
Housing Material PA GF | ||
Depth 284mm | ||
Series Number DT06-3S | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -55°C | ||
Corded No | ||
- COO (Country of Origin):
- MX
The TE Connectivity Automotive Connector has a rectangular connector shape and operates on a wire to wire connector system. This connector is specifically intended for female terminals and is sealable for added protection. In terms of electrical characteristics, it has an operating voltage of 250 VAC and a nominal voltage architecture of 250 V. These new colored connector offer a simple yet highly effective visual keying that helps prevent mismatching of connections but also enables the identification of different and critical systems.
180° Cable exit angle
Polarized mating alignment
Cable mount
PA GF construction
IP68 and IP6K9K rated
Compliant with UL94 V-0 flammability ratings
Designed for extreme temperatures and engine level vibrations
Utilizes high performance DEUTSCH Size 16 common contact system
Polarized mating alignment
Cable mount
PA GF construction
IP68 and IP6K9K rated
Compliant with UL94 V-0 flammability ratings
Designed for extreme temperatures and engine level vibrations
Utilizes high performance DEUTSCH Size 16 common contact system
