Legrand Faceplate
- RS Stock No.:
- 326-040
- Mfr. Part No.:
- 0 787 57
- Brand:
- Legrand
Bulk discount available
Subtotal (1 unit)*
£103.49
(exc. VAT)
£124.19
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £103.49 |
10 - 49 | £98.33 |
50 + | £93.15 |
*price indicative
- RS Stock No.:
- 326-040
- Mfr. Part No.:
- 0 787 57
- Brand:
- Legrand
Technical Reference
Legislation and Compliance
Product Details
RoHS Status: Exempt
- COO (Country of Origin):
- FR
Mosaic™ Audio and Video Sockets
3 Female RCA Audio and Video (Ref. 787 54)
Audio and video sockets used for composite video and stereo audio connections for all peripherals, amplifiers, mixing desks, DVD players, cameras, video players, video conferencing equipment etc.
Recommended cable: 1 shielded audio pair + 1 x 3 mm mini coaxial.
Max. cable length: 50 m (above the recommended length for composite video amps and audio amps).
Recommended cable: 1 shielded audio pair + 1 x 3 mm mini coaxial.
Max. cable length: 50 m (above the recommended length for composite video amps and audio amps).

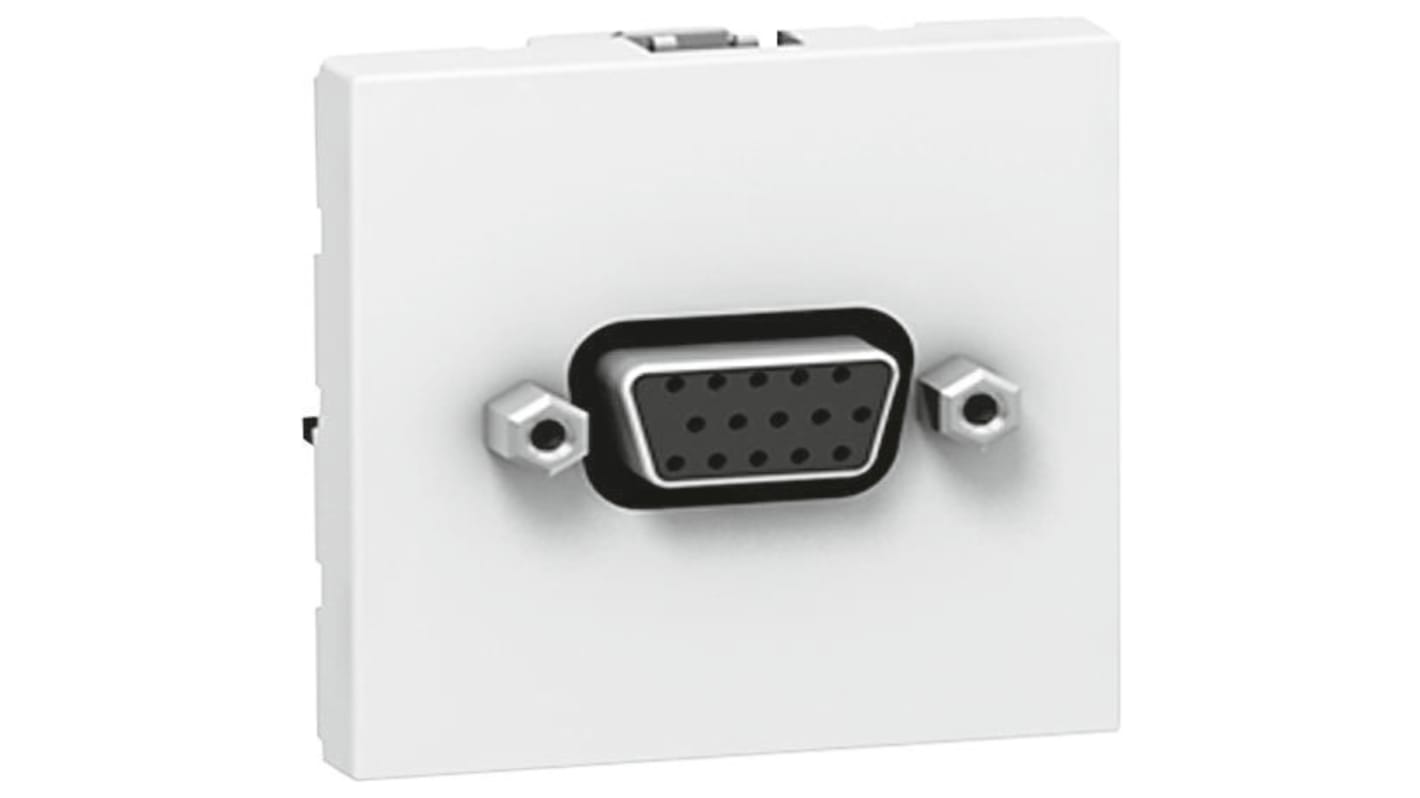

Female HD15 (Ref. 787 57)
Video sockets for connection using 1 mm² section screw terminals.
Sub-D high-density, 15-point female connector.
Allows connection of VGA, XGA or VESA, a PC monitor, plasma screen, video projector, graphics tablet etc.
Recommended cable: VGA type (5 coax 75 Ω Ø 2.7 mm + 5 conductors Ø 2.7 - gauge 28)
Max. cable length: 25 m (above the recommended length for VGA amps).
Sub-D high-density, 15-point female connector.
Allows connection of VGA, XGA or VESA, a PC monitor, plasma screen, video projector, graphics tablet etc.
Recommended cable: VGA type (5 coax 75 Ω Ø 2.7 mm + 5 conductors Ø 2.7 - gauge 28)
Max. cable length: 25 m (above the recommended length for VGA amps).
Female BNC 75 Ω (Ref. 784 58)
Video sockets used for composite video connections for all peripherals such as DVD players, cameras, video players etc.
Recommended cable: RG59 coaxial.
Max. cable length: 50 m (above the recommended length for a composite video amp).
Recommended cable: RG59 coaxial.
Max. cable length: 50 m (above the recommended length for a composite video amp).
