RS PRO 2 Core Microphone Cable, 0.22 mm² CSA Screened, 5.9 x 2.9mm od, 100m, Grey
- RS Stock No.:
- 749-2585
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£0.607
(exc. VAT)
£0.728
(inc. VAT)
- RS Stock No.:
- 749-2585
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Audio Cable Type | Microphone Cable | |
| Number of Cores | 2 | |
| Cross Sectional Area | 0.22 mm² | |
| Screened/Unscreened | Screened | |
| Insulation Material | PE | |
| Outer Diameter | 5.9 x 2.9mm | |
| Length | 100m | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +60°C | |
| Sheath Colour | Grey | |
| American Wire Gauge | 24 AWG | |
| Number of Strands | 18 | |
| Sheath Material | PVC | |
| Conductor Resistance | 132 Ω/km | |
| Cable Shape | Multicore | |
| Screen Type | Heavy Duty Twin Lap | |
| Core Strands | 18/0.49 mm | |
| Conductor Strand Type | Stranded | |
| Conductor Material | Bare Copper | |
| Voltage Rating | 30 V | |
| Size of Strands | 0.49 mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Audio Cable Type Microphone Cable | ||
Number of Cores 2 | ||
Cross Sectional Area 0.22 mm² | ||
Screened/Unscreened Screened | ||
Insulation Material PE | ||
Outer Diameter 5.9 x 2.9mm | ||
Length 100m | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +60°C | ||
Sheath Colour Grey | ||
American Wire Gauge 24 AWG | ||
Number of Strands 18 | ||
Sheath Material PVC | ||
Conductor Resistance 132 Ω/km | ||
Cable Shape Multicore | ||
Screen Type Heavy Duty Twin Lap | ||
Core Strands 18/0.49 mm | ||
Conductor Strand Type Stranded | ||
Conductor Material Bare Copper | ||
Voltage Rating 30 V | ||
Size of Strands 0.49 mm | ||
- COO (Country of Origin):
- CN

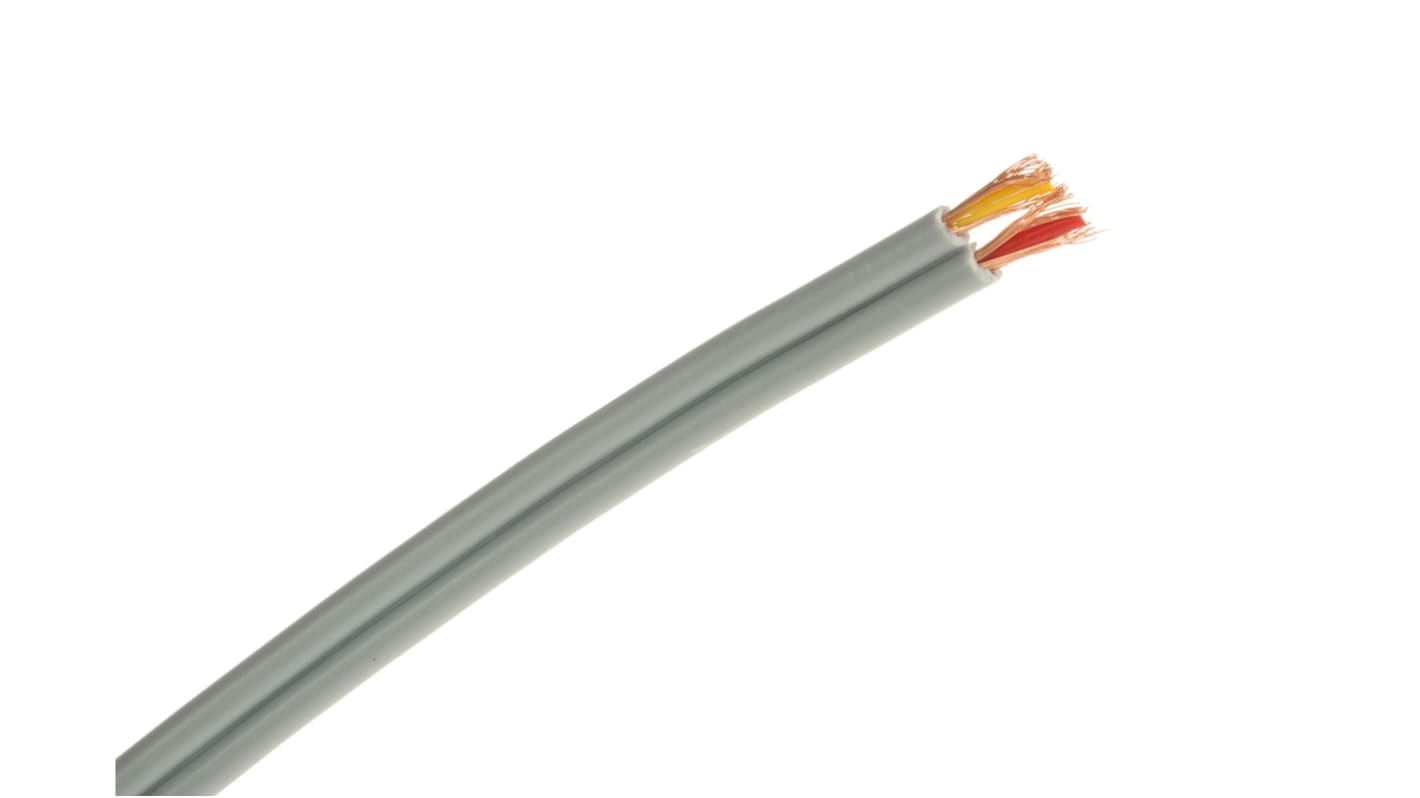

Heavy Duty Twin Lapped Screen Cable
Two individually screened 18/0.1 mm plain copper stranded conductors laid side by side in a flat figure 8 grey PVC outer sheath.
Capacitance core to screen 130 pF/m
